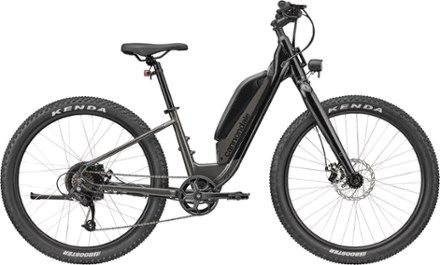

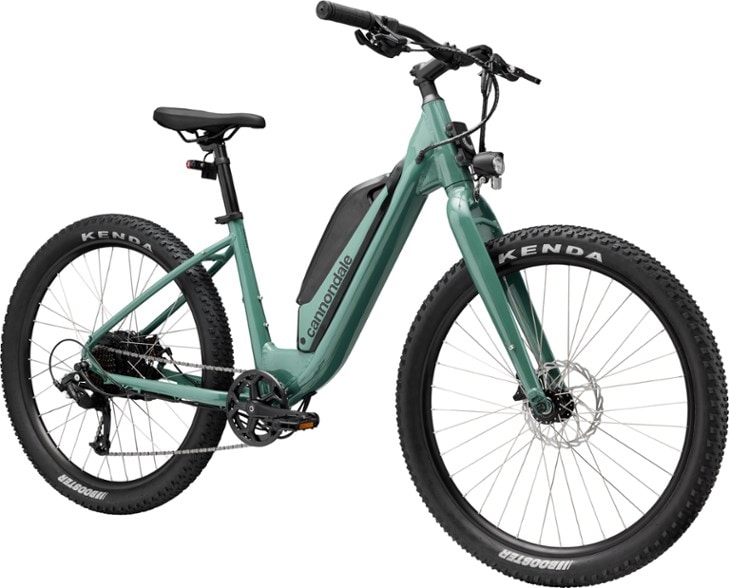

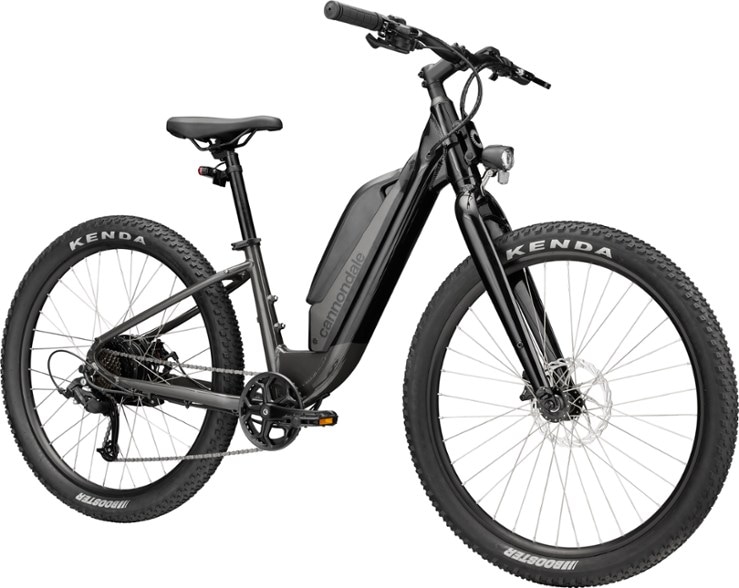

Cannondale Adventure Neo Allroad Low Step-Through Electric Bike
Engineered for getting out with ease, the Cannondale Adventure Neo Allroad Low Step-Through e-bike features a comfortable seat position, rugged tires and reliable components that won't let you down.
Key Details
- Rear hub motor can assist your pedaling up to 20 mph on the flats while cranking out enough force everywhere else to make sure climbs and rough terrain don't slow you down
- Thumb throttle gives you total control over the electric motor's power and that extra boost when you need it
- Disc brakes are powerful enough to bring it all to a controlled stop no matter the weather or the cargo

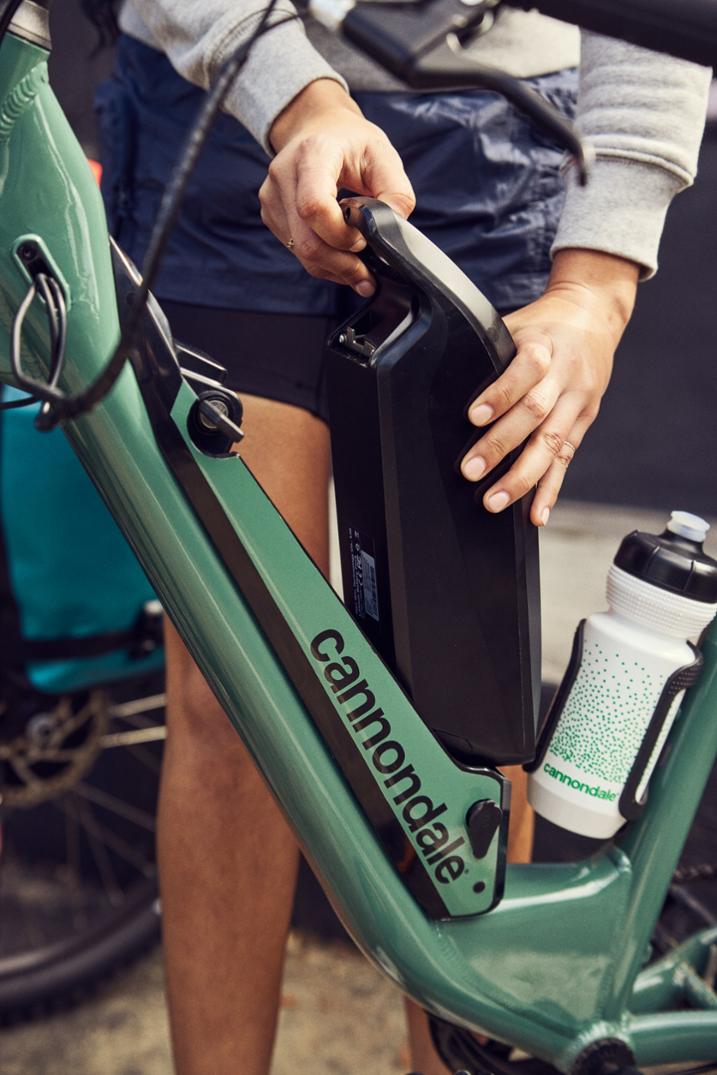

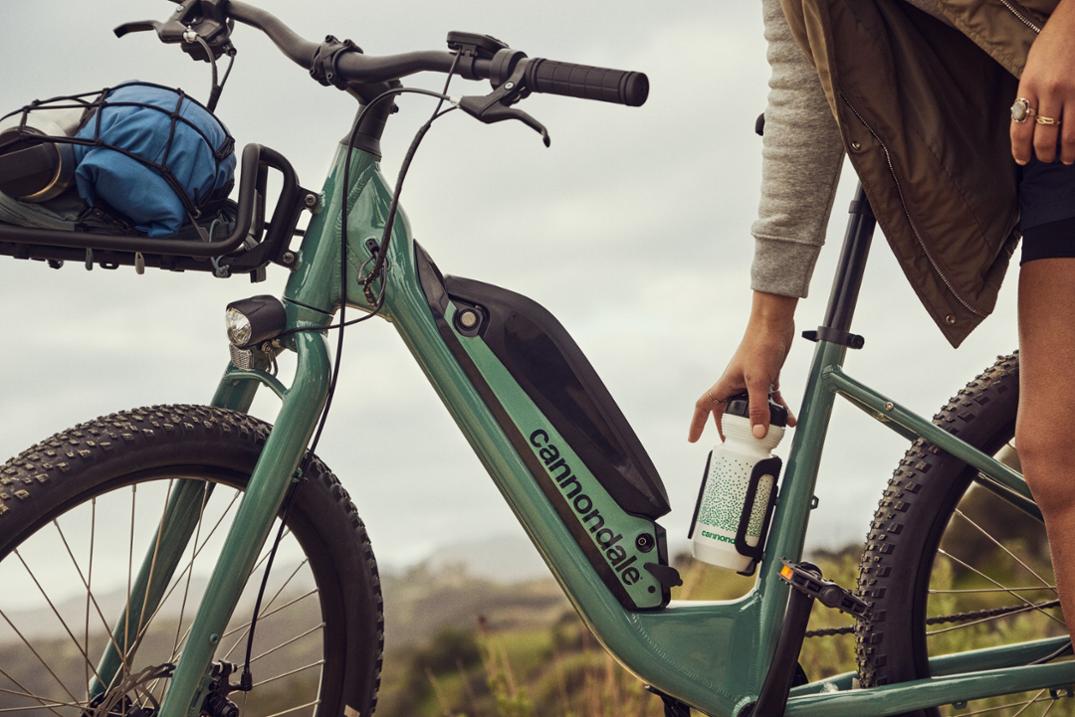

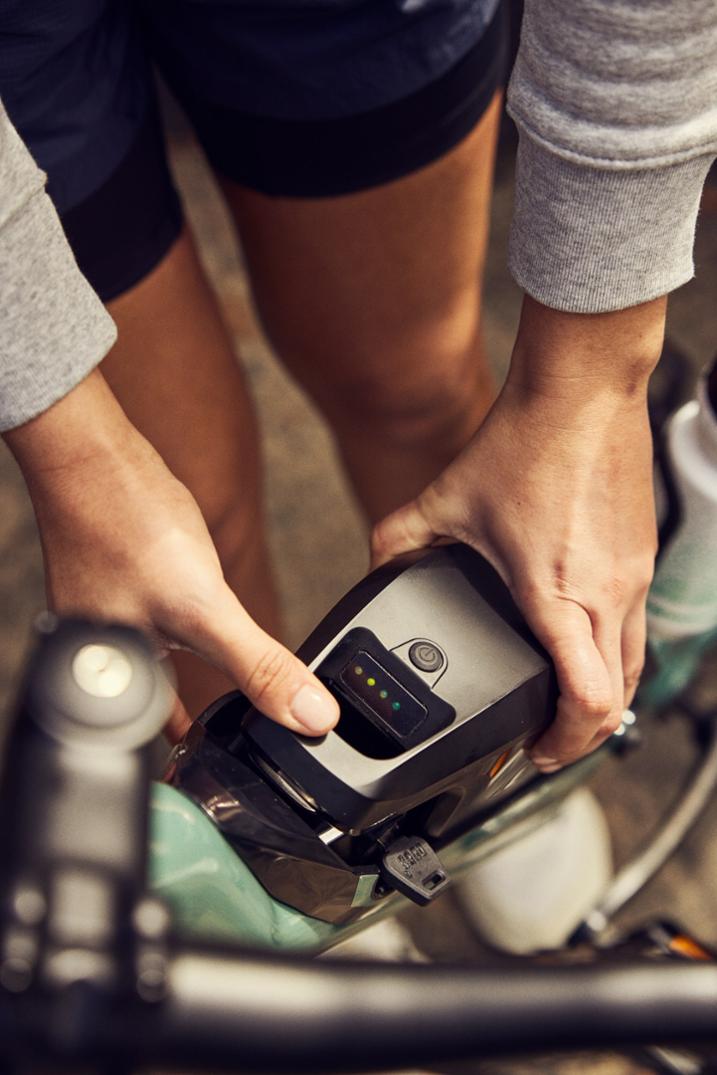

- Semi-integrated battery is easy to remove without tools so you can take it with you for peace of mind or easy indoor charging

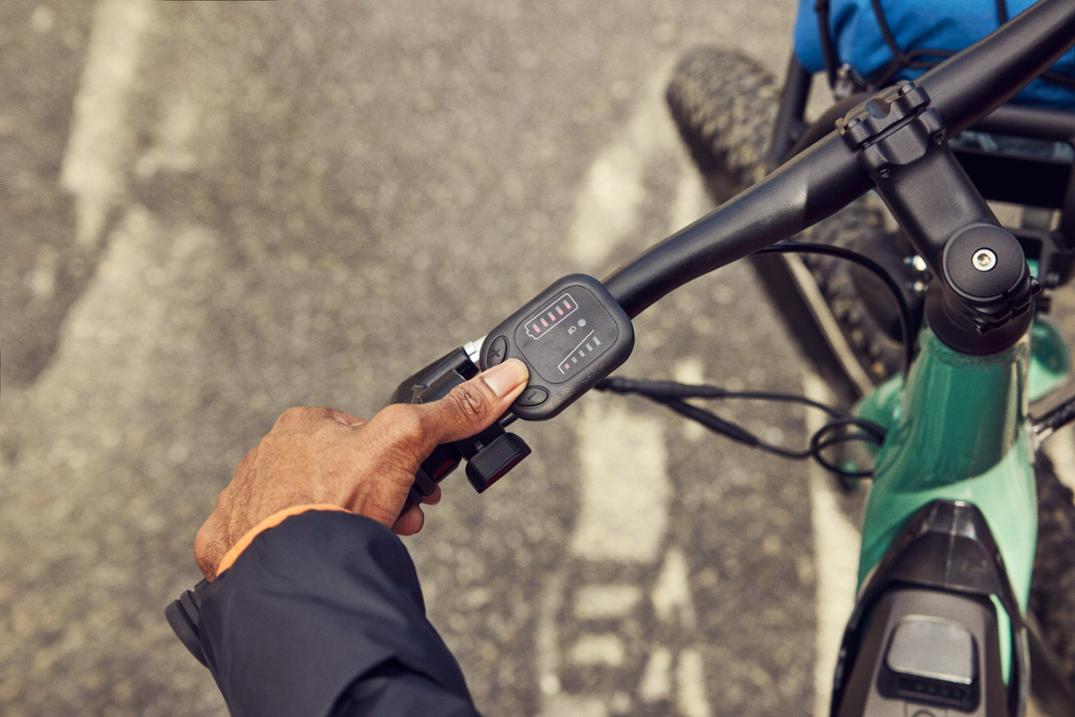

- Features a large, easy-to-read LCD display so you can check your power and boost levels on the go
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- An additional year of free adjustments on e-bikes
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Cycling |
|---|---|
| E-Bike Classification | Class 2: throttle assist or pedal assist up to 20 mph |
| Motor | Bafang G020 hub, 250W |
| Motor Type | Geared Hub |
| Motor Torque (Nm) | 45 Newton meters |
| Battery Type | Lithium Ion |
| Battery Capacity (Wh) | 418 watt hours |
| Battery Removable | Yes |
| Charge Time (hrs) | 4 hours |
| Pedal Assist Range | 47 miles |
| Frame | SmartForm C3 alloy frame with low step-through, removable down-tube battery, semi-internal cable routing, tapered 1-1/8 in. to 1.5 in. head tube, post mount disc, water bottle/head tube rack mounts |
| Step-Through | Yes |
| Bike Suspension | No Suspension |
| Fork | SmartForm C3 alloy blades with 1-1/8 in. steerer, disc mount, midblade rack/fender mounts, crown accessory mount, 50 mm offset |
| Fork Travel | Not Applicable |
| Rear Shock | Not Applicable |
| Crankset | Prowheel, 38T |
| Bottom Bracket | Bafang SR PA14.32.S sensor |
| Shifters | 7-speed, 38-7 thumb tap |
| Front Derailleur | Not Applicable |

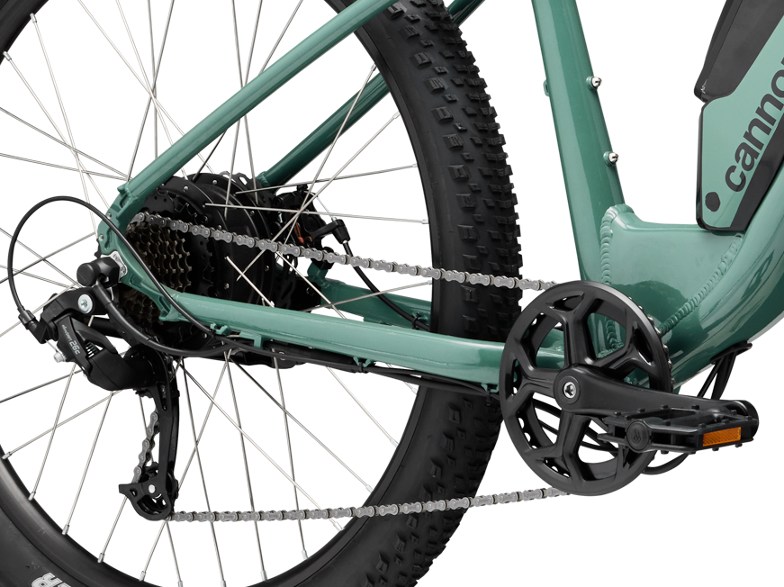

| Rear Derailleur | microSHIFT RD-M21L |
| Rear Cogs | 14-34T, 7-speed |
| Number of Gears | 7 gear(s) |
| Brake Type | Mechanical Disc Brake |
| Brakes | JAK-7 disc, 180/180 mm rotors |
| Brake Levers | 3-finger alloy with motor cutoff |
| Rims | Shining, 36 hole |
| Front Hub | 13 gauge x 36 hole x100 mm QR |
| Rear Hub | Bafang G020 hub, 250W |
| Wheel Size | 27.5 inches |
| Tires | Kenda Booster |
| Tire Width | 2.6 inches |
| Handlebar Shape | Riser Bar |
| Handlebar | Cannondale Riser: 6061 alloy, 25 mm rise, 8 deg. sweep, 6 deg. rise, 740 mm |
| Stem | Cannondale alloy, 31.8 mm, 7 deg. |
| Seat Post | 6061 alloy, 30.9 x 350 mm |
| Saddle | Cannondale Allroad Comfort |
| Pedals | Cannondale Fitness |
| Headset | Semi-integrated, 1-1/8 in. with reducer |
| Chain | KMC Z7, 7-speed |
| Weight | 48 lbs. 4.8 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
| S | M | |
|---|---|---|
| Height Range | 5'0" - 5'7" | 5'5" - 5'10" |
| Reach | 35.7 | 38.3 |
| Stack | 64.8 | 66.2 |
| Effective Top Tube | 55.5 | 58.5 |
| Seat Tube Center-Top | 38.0 | 44.0 |
| Standover Height | 43.5 | 43.5 |
| Head Tube Length | 16.5 | 18.0 |
| Head Tube Angle (degrees) | 67.0 | 67.0 |
| Seat Tube Angle (degrees) | 73.0 | 73.0 |
| Bottom Bracket Height | 30.0 | 30.0 |
| Wheelbase | 114.3 | 117.4 |
| Chainstay | 49.0 | 49.0 |
| Fork Offset | 4.6 | 4.6 |
Sizing Notes
Measurements are stated in centimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
Review this Product
Adding a review will require a valid email for verification
Customer Images
Amazing e- bike
This bike is AMAZING! I’m a 59 yr old female with neck, back and hip problems. Bike is effortless and fun to ride! I feel safe and comfortable. I ride on the Ohio bike path, a paved smooth “road“, and go on average 15 miles per hour on only level 1 assist. I’ve only had my bike a couple weeks.I’ve been out twice and did 15 miles each time. I can almost keep up with my husband. He is an avid cyclist. This bike has given us the ability to ride and do something together. I highly recommend it! Great bike and good price.
Nice bike!
First e-bike purchase, this one is my husbands. Nice bike! Rides nice. Seat was a bit uncomfortable but we bought a new one. Great bike but subpar brakes. Some difficulty stopping quickly at 20 mph. We are upgrading the disc brakes to hydraulic. I have put 60 miles on this bike. Climbs hills nice with the throttle assist. I do wish the battery life was a bit longer. Overall nice buy for the price.. but plan on upgrading the brakes until cannondale changes the cheap brakes. REÍ staff super building the bike and making adjustments. REÍ staff very knowledgeable and accommodating.
1st E-Bike!
This is our first EBike and very pleased with this low step-through model in Jade color. Which the color looks amazing in person. Aside from doing research and knowing this was a good entry level bike for the value...this was perfect for my wife. The medium was a good size for us. 5'-6" and 5'-10". I have 2 other Cannondales in medium also. I have about 50 miles on it so far. It has been fun to ride around neighborhoods, local state parks and bike trails. The assist on low is powerful enough on flat roads even when in higher gears. The throttle assist is really fun also. I might have gone with the EQ model but it didn't come in Jade. And the fenders would be an issue for my bike hitch style. I would rather have the display on the EQ model though. But I am told it can be replaced later. Mechanical brakes seem a little under powered especially bc you are riding faster naturally on an ebike. The light works great. Waiting on Cannondale to release the front rack that attaches to the holes on the stem. They told me it would be in September. REI did a good job assembling answered all my questions.
Excellent bike, terrible brakes
The value of this bike is insane. My wife loves it, great for cruising around town. However, plan on upgrading the brakes immediately. The included mechanical brakes are the worst I have ever seen on any level of bike. For a bike that can easily reach 20+ mph thanks to the electric motor, it is borderline dangerous that they included such incompetent brakes, you really have to squeeze like crazy to get them to have any braking power.
Started off okay, but then..
Could've been great. The entire power system failed on me about 8-9 months in, no more assist, no more throttle. Several parts would need to be replaced to fix it..no thks. The brakes are terrible, and unlike other e bikes that are hundreds less, does not have a digital screen indicating speed or gear. You can still tell what gear you're in, but the digital screen on cheaper bikes is much better, and safer to use especially while at speed. Will be returning.
Oh the Places We Will Go!
Got this bike 3 months ago and it is by far the best! I love everything about it!! The Jade color is beautiful! People make fun of e-bikes, I’m convinced that they don’t know what they’re talking about!
Great beginner ebike
Great beginner commuter ebike. Very limited gears. Not good for fotness for experienced rider but excellent for someone new to biking.
