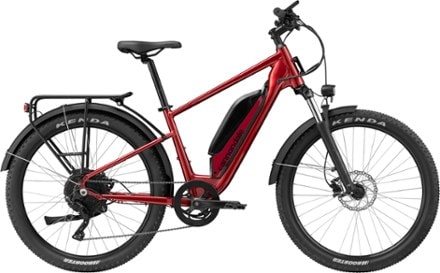

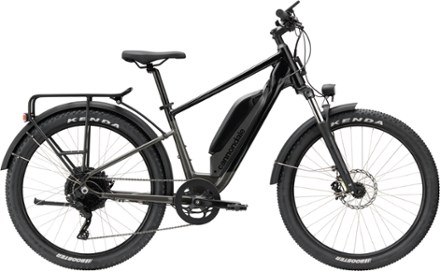

Cannondale  Adventure Neo Allroad S Electric Bike

$1,539.93Compared to $2,200.00* Save 30%
HURRY! This item is discontinued. Shop now for best selection.

Engineered for getting out with ease, the Cannondale Adventure Neo Allroad S e-bike is as rugged as it is reliable, allowing you to cover a big range to get where you're going fast.

Color: Fire Red
please select a Size
Quantity
This item contains hazardous or flammable materials and is restricted to surface shipping only. Cannot be sent to the state of New York.
Select size for delivery dates
Heads up! Bikes usually take 1-2 additional days to assemble but can take longer during busy periods. We'll email you when yours is ready.

Members get an estimated $153.99 (10%) back on this item as a part of your annual .

To buy,  sign in as an REI Co-op Member or join now.
Join the co-op today to get access to a lifetime of benefits.
Location Image for Adventure Neo Allroad S Electric BikeLocation Image for Adventure Neo Allroad S Electric BikeLocation Image for Adventure Neo Allroad S Electric Bike
Location Image for Adventure Neo Allroad S Electric Bike

Features

  • S stands for Speed because the powerful rear hub motor can assist your pedaling up to 28 mph on the flats
  • Features a comfortable seat position and reliable components that won't let you down
  • Disc brakes are powerful enough to bring it all to a controlled stop no matter the weather or the cargo
  • Front suspension fork brings 100 mm of travel to the front wheel, smoothing out bumps and keeping you comfortably in control

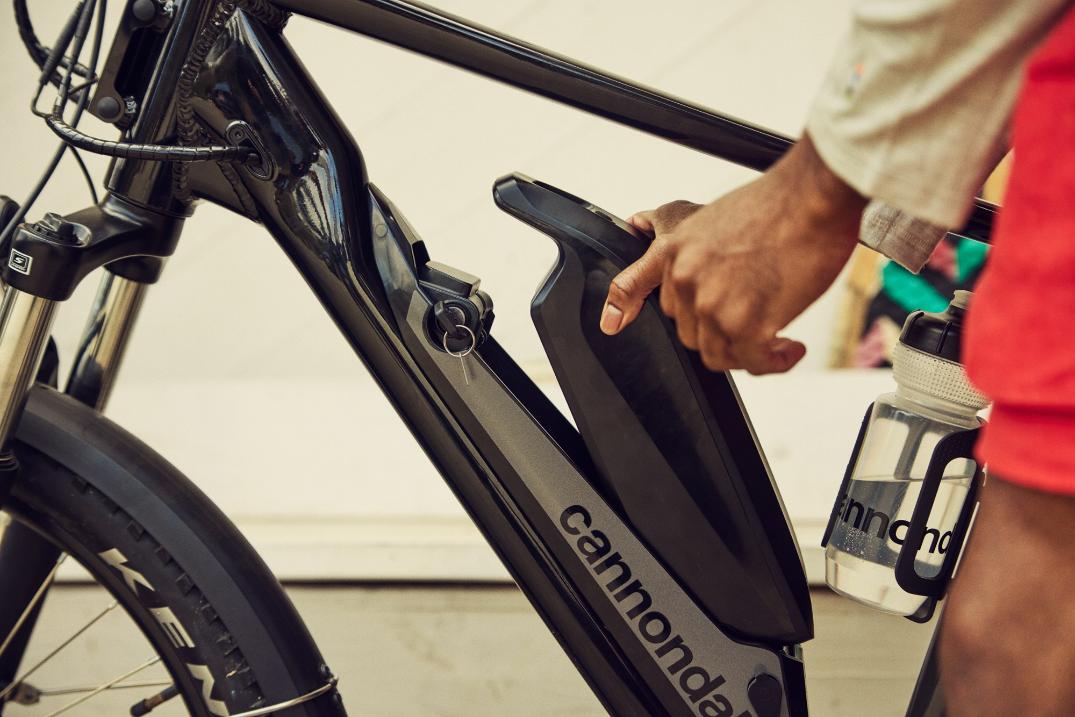

  • Semi-integrated battery is easy to remove without tools so you can take it with you for peace of mind or easy indoor charging
  • Smart Reserve battery programing allows an additional 5–10 miles of assist above the published range at reduced power output to prevent getting stranded with an empty battery

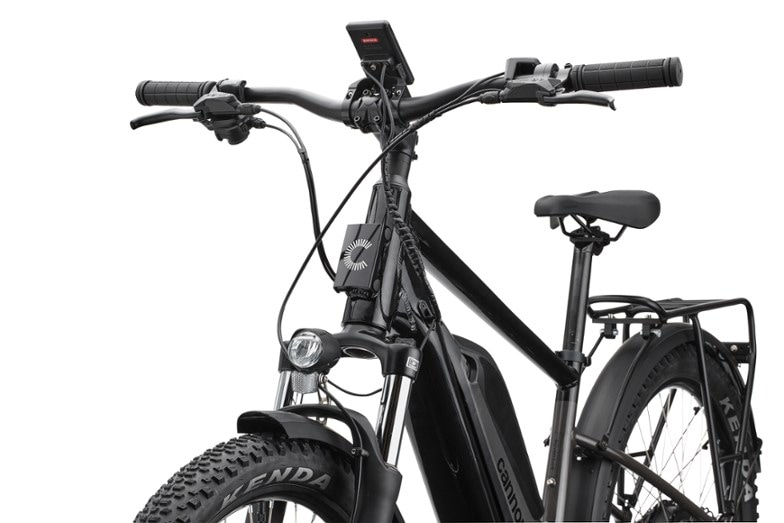

  • Features a large, easy-to-read LCD display so you can check your power and boost levels on the go; includes built-in USB charger for the motor battery
  • Cannondale model code: C68303M
  • NOTE: Specs and images are subject to change based on component availability

Imported.

This e-bike comes with Coast to Coast Support, which includes:
  • 1 year of free adjustments (see more below)
  • In-store bike assembly
  • Pickup in store or curbside
  • Bike experts available at 170+ bike shops
REI Co-op Members get more:
  • An additional year of free adjustments on e-bikes
  • 20% off shop services
  • Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
More about our free adjustments:
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.

View the Cannondale Adventure Product LineView all Cannondale Hybrid Bikes

Technical Specs

Best Use

Cycling

E-Bike Classification

Class 3: pedal assist up to 28 mph

Motor

Bafang G0H0 hub, 750W

Motor Type

Geared Hub

Motor Torque (Nm)

80 Newton meters

Battery Type

Lithium Ion

Battery Capacity (Wh)

720 watt hours

Battery Removable

Yes

Charge Time (hrs)

6 hours

Pedal Assist Range

67 miles

Frame

SmartForm C3 alloy frame with removable down-tube battery, semi-internal cable routing, tapered 1-1/8 in. to 1.5 in. head tube, post mount disc, water bottle and head tube rack mounts

Step-Through

No

Bike Suspension

Front Suspension

Fork

SR Suntour XCM34 with coil, preload adjust 51 mm offset, tapered steerer

Fork Travel

100 millimeters

Rear Shock

Not Applicable

Crankset

Prowheel, 46T

Bottom Bracket

Bafang SR PA14.32.S sensor

Shifters

8-speed

Front Derailleur

Not Applicable

Rear Derailleur

8-speed

Rear Cogs

12-42T, 8-speed

Number of Gears

8 gear(s)

Brake Type

Hydraulic Disc Brake

Brakes

Tektro HD-T257 hydraulic disc, 180/180 mm rotors

Brake Levers

Tektro Hydraulic, alloy

Rims

Shining, 36 hole

Front Hub

13 gauge x 36 hole x 110 mm through-axle

Rear Hub

Bafang G0H0 hub, 750W

Wheel Size

27.5 inches

Tires

Kenda Booster

Tire Width

2.4 inches

Handlebar Shape

Riser Bar

Handlebar

Cannondale Riser: 6061 alloy, 25 mm rise, 8 deg. sweep, 6 deg. rise, 740 mm

Stem

Cannondale alloy, 31.8 mm, 7 deg.

Seat Post

6061 alloy, 30.9 x 350 mm

Saddle

Cannondale Allroad Comfort

Pedals

Cannondale Fitness

Headset

Semi-integrated, 1-1/8 in. to 1.5 in.

Chain

KMC Z8, 8-speed

Weight

63 lbs. 12.8 oz.

Bike Weight

Bike weight is based on median size, as sold, or the average of two median sizes.

Gender

Unisex

Size Chart

Cannondale Bikes (252487, 221174, 221175, 252486)
ML
Height Range5'5'' - 5'10''5'9'' - 6'5''
Reach38.340.4
Stack66.267.5
Effective Top Tube56.561.0
Seat Tube Center-Top44.050.0
Standover Height79.584.0
Head Tube Length18.019.5
Head Tube Angle (degrees)67.067.0
Seat Tube Angle (degrees)73.073.0
Bottom Bracket Height30.030.0
Wheelbase117.4120.1
Chainstay49.049.0

Sizing Notes

Measurements are stated in centimeters unless otherwise indicated.

How we measure bikes

  1. Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
  2. Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
  3. Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
  4. Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
  5. Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
  6. Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
  7. Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
  8. Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
  9. Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
  10. Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
  11. Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
  12. Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.

Reviews
25 reviews with an average rating of 3.8 out of 5 stars

Ratings Snapshot

Product Rating

6 out of 14 (43%) reviewers recommend this product

Review this Product

Adding a review will require a valid email for verification

Average Customer Ratings

Overall Fit Rating

Runs SmallRuns Large

Most Helpful Favorable Review

5 reviews with an average rating of 5.0 out of 5 stars
Powerful cadence sensor bike. NOT a torque sensor
Robert
2 years ago
THIS IS NOT A TORQUE SENSOR EBIKE. I'm not sure where other reviewers are getting this info. If you barely touch the pedals and the motor starts pushing you ahead, that's not a torque sensor. A bike with a torque sensor will sense the effort you are putting in and adjust power accordingly, and it will feel like an analog (regular, non-cheater, you choose your own adjectives) bike. That being said, I love the power and, uh, torque that this bike has. I opted for the 'S' model for the larger battery, 750 watt motor. and no throttle. The motor is LOUD, I often stop pedaling when near people because of this. I keep the assist level at 1 almost all the time, even on moderate inclines because of the power. I have not had the pedal assist above 3 yet, and that setting will get me up steep hills with ease. And for me, no throttle is a good thing because I like bicycle riding. If I want a throttle, I'll buy a scooter. I have the step over frame, size large. I'm 5 11 and have the seatpost down as far as it will go, the frame is a little too big. It would have helped to have an easy to understand size chart on the REI website. A big plus for me is the gear range, 12-42T is excellent for hill climbing on an electric bike. I can't wait to get this on some trails near me. The range seems excellent so far, so could likely travel a long distance. All in all, a good CADENCE sensor bike with a couple of small-ish nitpicks, but those things add 'character' after all.
Robert
Salt Lake City, UT
39 people found this review helpful

Most Helpful Critical Review

5 reviews with an average rating of 2.0 out of 5 stars
100% Garbage for Biking, however, Looks Great!
ATXMike
1 year ago
Could you answer the following questions about the Cannondale Adventure Neo Allroad S Electric Bike and your answers I will happily share with the community if you dont mind: https://www.rei.com/product/221175/cannondale-adventure-neo-allroad-s-electric-bike I believe the motor being used is the H640 seen: https://bafang-e.com/en/oem-area/components/component/motor/rm-g0900750ddc The HMI is the DP C10.CAN which has no bluetooth https://bafang-e.com/uploaded/manual/BF-DM-C-DP%20C10-EN.pdf We are facing the following issues: 1. The 5 Support Levels are worthless, basically level takes off at 17mph which is the speed of an amateur cyclist. I am wondering if the following might be possible: > Can I program a Linear increase in the Support Levels. If yes, do I need the BESST Tool to make this happen if so how do I obtain this program? > Can I use a different HMI as outlined below to manage this increase as it seems that this is possible from reviewing the screen shots of the BAFANG GO+ App? https://bafang-e.com/uploaded/manual/BF-DM-C-DP%20C10-EN.pdf Note: I found the following chart: https://prnt.sc/-Quwj3FyZREQ 2. What HMI devices will work with the following motor assuming the controller is one you all provided? What is your favorite controller? 3. How can I add a throttle to this setup as a throttle is found on the CAnnondale version sold directly as seen below, however, not on the REI version? https://www.cannondale.com/en-us/bikes/electric/e-urban/adventure-neo-allroad/adventure-neo-allroad-speed Thank you i look forward to hearing back from you! -------- I bought the following bike from REI: https://www.rei.com/product/221175/cannondale-adventure-neo-allroad-s-electric-bike I was considering that amature cyclists ride roughly 17 mph and professionals 25 mph. I am curious who the heck thought it would be a great idea to program the controller on this bike which is: https://bafang-e.com/uploaded/manual/BF-DM-C-DP%20C10-EN.pdf To have support level 1 start at roughly 17mph considering that the bike has 5 + Walk Support levels. It seems that no one did the math on this and you will probably be getting alot of these bikes returned just for this reason! That being said do you have a solution for me to edit the Support Levels so it has a linear ramp up? What do I need to make this happen would I need the Bafang BESST Service Tool or possibly a new display that uses the bluetooth controller? Lastly, I notice on the Cannondale Direct version of the Neo Allroad Speed vs REI version called the NEo Allroad S I loose out on the throttle can this be added after market? -------- MAJOR FLAW! I give you 1 star simply because the bike looks attractive and 1 star for the quality of the build. However, the rest of the bike is garbage, simply put, because the Cannondale wanted to be cheap and save a few pennies! Yes, Cannondale wrecked this bike's potential by doing the following. First, let's discuss the hidden accurate specs. The (Display Unit) which Bafang, the manufacturer, calls an HMI model DP C10.CAN, which uses Communication Protocol Type (CAN) just in case you want to search for an alternative solution. This unit looks like the DP C171; however, the difference is no Bluetooth, saving Cannondale $20 bucks. Without Bluetooth, you can't address the Motor settings with the Bafang Go+ app. This is only important once you touch the pedals and bike jolts on level one of five (these level's are known as Support Levels per manufature specs) to 17 mph. Let me repeat myself level one takes you to 17 mph which happens to be the speed that amature competing cyclists ride and and professionals roughly 25mph. You have 4 levels to go, which are absolutely worthless. Imagine waiting at a red light you move the pedal slightly only to wheely into the intersection at 17 mph. So lets move onto the photos on the Cannondales website you will notice that they removed the throttle to save another $13. The controller model is CR S307.1000.FC which states it could have a throttle, however, not sure if the yellow wire laying in the tube goes to this throttle or if the display will allow this to be added on as Cannondale is the one who configured the controller at the manufacture. The ability to modify this controller to have a linear increase in output level 1 = 5mph; 2 = 10 mp, and so forth is locked down as the Bafang BESST Pro tool that edits the control access has to be provided by Cannondale. Basically this bike is 100% garbage its a lackluster ride and while it would be a decent throttle ride for a savings of $13 list pricing Cannondale pulled the throttle from this bike! The fenders are also garbage plastic, the battery cover falls out, the grips are cheap, and lastly the rims do not allow for run flats which is needed more than anything on a rear hub motor as changing the tire is a real pain in the rear! The best thing you can do is not buy this bike as I made the mistake of buying 2!
ATXMike
Austin, Texas
32 people found this review helpful

Customer Images

Robert
Salt Lake City, UT
Rated 5.0 out of 5 stars

Powerful cadence sensor bike. NOT a torque sensor

2 years ago

THIS IS NOT A TORQUE SENSOR EBIKE. I'm not sure where other reviewers are getting this info. If you barely touch the pedals and the motor starts pushing you ahead, that's not a torque sensor. A bike with a torque sensor will sense the effort you are putting in and adjust power accordingly, and it will feel like an analog (regular, non-cheater, you choose your own adjectives) bike. That being said, I love the power and, uh, torque that this bike has. I opted for the 'S' model for the larger battery, 750 watt motor. and no throttle. The motor is LOUD, I often stop pedaling when near people because of this. I keep the assist level at 1 almost all the time, even on moderate inclines because of the power. I have not had the pedal assist above 3 yet, and that setting will get me up steep hills with ease. And for me, no throttle is a good thing because I like bicycle riding. If I want a throttle, I'll buy a scooter. I have the step over frame, size large. I'm 5 11 and have the seatpost down as far as it will go, the frame is a little too big. It would have helped to have an easy to understand size chart on the REI website. A big plus for me is the gear range, 12-42T is excellent for hill climbing on an electric bike. I can't wait to get this on some trails near me. The range seems excellent so far, so could likely travel a long distance. All in all, a good CADENCE sensor bike with a couple of small-ish nitpicks, but those things add 'character' after all.

Age:55–64
Weight:200–225 lbs.
Inseam:32"
Height:5'11"
Experience Level:Experienced
Riding Frequency:Multiple times per week
Yes , I recommend this product

Overall Fit Rating

Runs SmallRuns Large
Helpful?
EbikesRule
Rated 5.0 out of 5 stars

Cannondale Neo Allroad "S"

10 months ago

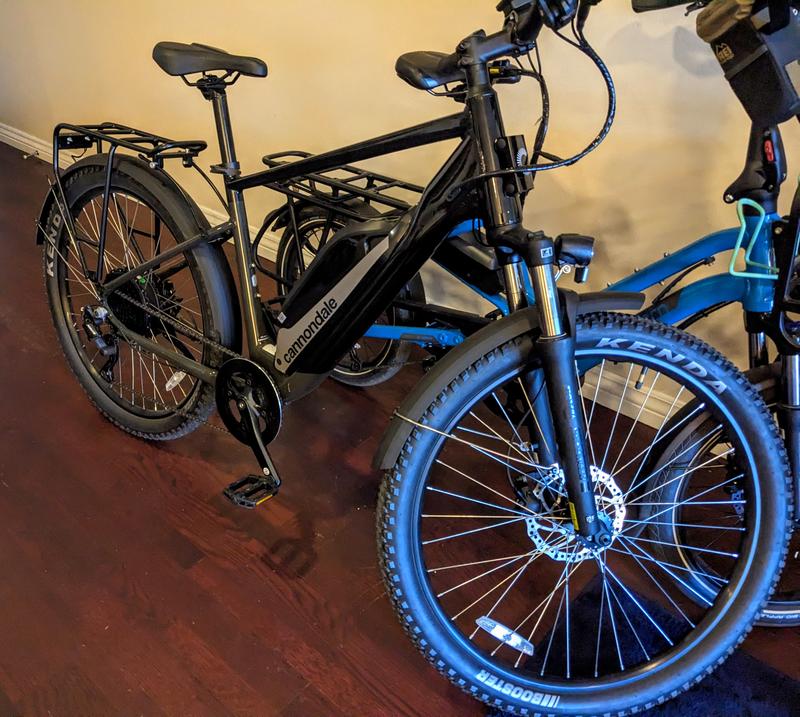

In 2023, I purchased two of the Neo Allroad "S" (Class 3 for speed). One in a small frame for my wife (5' 6") and a medium frame for myself (5' 11"). It was a fantastic purchase! (So that you know, I looked at all the high-end ebikes and compared them extensively). From the Spring of last year '23 until the Fall of '24, I have driven 3900 miles on mine and my wife 2300 on hers. I ride on country roads including many, many gravel roads. These bikes have been tremendous and I have driven them everywhere. Including the hilly, Driftless areas of WIS/MN. I might add, forget the main bike trails. They are fine to ride on but if you want to see the "wider world"... find a country road and ride side-by-side with your friend / spouse without having to weave in and out of oncoming bike traffic. Btw, REI is great for service.

Yes , I recommend this product
Helpful?
RVA Biker
Richmond, VA
Rated 5.0 out of 5 stars

Great Commuter Bike!

2 years ago

My first electric bike. I am using it mostly to commute to work (7 miles each way). Incredible power. It's very smooth (in fact smoother than my car that I just sold). It's pretty easy to pedal even without power. Two minor things but aren't that bad- 1) The external charging port cover won't stay in place. Previous review seems to have the same issue. 2) The light isn't that bright that comes with the bike but not a big deal. Easy to add additional lights to it.

Age:35–44
Weight:150–175 lbs.
Inseam:32"
Height:5'8"
Experience Level:Competitive
Riding Frequency:Daily
Yes , I recommend this product

Overall Fit Rating

Runs SmallRuns Large
Helpful?
King Friday
Portland, OR
Rated 1.0 out of 5 stars

Do not buy

1 year ago

Range is 25 to 30 miles. Not 67. I find top speed to be 25 or 26, not 28. Mine broke after 415 miles. Now it sits in the shop indefinitely until parts can be sourced. Safe to say I regret buying and would NOT recommend this bike. Just get a cheap Amazon bike. If it breaks, they send you a new bike.

Age:45–54
Weight:175–200 lbs.
Inseam:34"
Height:6'2"
Experience Level:Casual
Riding Frequency:Multiple times per week
No, I do not recommend this product

Overall Fit Rating

Runs SmallRuns Large
Helpful?
Alex
Salt Lake City, UT
Rated 1.0 out of 5 stars

Unsafe

11 months ago

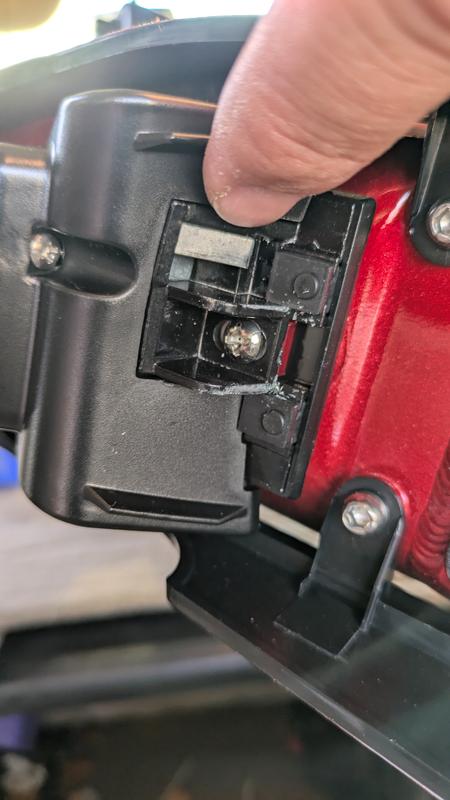

The latch for the battery is too small to hold the battery in place. You can take it out without unlocking it. A bump on the road could detach the battery mid ride or a thief could just take it right out. Both of these things make the bike unsafe and unusable. It's too bad, because it's great otherwise.

Age:35–44
Weight:150–175 lbs.
Inseam:34"
Height:6'2"
Experience Level:Experienced
Riding Frequency:Daily
No, I do not recommend this product

Overall Fit Rating

Runs SmallRuns Large
Helpful?
Gary
San Luis Obispo
Rated 4.0 out of 5 stars

Nice Bike but has a Cadence Sensor

1 year ago

I made a substantial effort to make sure this bike and the low Step Thru bikes would have a Torque Sensor upon arrival. I reached out to Cannondale first to be sure what was being sent to REI. Upon receiving the bikes, I took them out for a spin. The bikes themselves look and ride great when not in Pedal Assist Mode. Unfortunately, when I put the bikes i pedal assist mode, the motor went to full power based on the PAS setting you are in. Since this bike has a 750-watt motor. That can be a real kick if you just touch the pedals going over a bump or trying to navigate a narrow spot. There is no way control your speed. The bikes just goes fast. I tried reaching out to both REI and Cannodale. REI could not help, and Cannondale has yet to respond. This is the same comment many other reviewers also made. If you want a great looking bike, that goes fast with the bare minimum of pedal effort this bike could be for you. If you want a bike that just gives a gradual boost in power when needed to go more, then I would say this bike is not for you. I will be returning the bikes after the Christmas Rush.

Age:65–74
Weight:200–225 lbs.
Inseam:34"
Height:Taller than 6' 5"
Experience Level:Experienced
Riding Frequency:Multiple times per week
No, I do not recommend this product

Overall Fit Rating

Runs SmallRuns Large
Helpful?
Tom
Rated 4.0 out of 5 stars

Great Value

2 years ago

I got the S, large standard frame. Pretty dang good ebike for the price. I couldn't find another bike with these specs for the price. This is my first ebike. Got it to commute, 25 mi each way. Ridden 200 mi so far. > cadence (not torque) sensor with +5 power settings. 1 = 15 mph; 2/3 = 20 mph 4/5 = 27.5 mph. settings 3 and 5 have extra starting acceleration but the same top speed as the setting below. pedal at all and it will get to the top speed. > battery goes for 1 hr, max range = 25 mi. This is a 750 watthour battery and a 750 watt motor, meaning the battery can run the motor for exactly one hour. The top speed is 27.5 mph, so max range in theory is 27.5 mi, but with starting/stopping and wind/hills, I get about 24-25 miles. Top speed tapers off from 27.5 to 15 mph over the last 10% of charge. > I ride in setting 4. It doesn't get above 27.5 mph, not really. Speed drops off as the battery dies. shifting down two gears is worth for starting off. Once the battery's dead, on flat I get about 10-12 mph. > Includes a 100 watt 2 amp charger, meaning it takes 7.5 hr to fully charge. Bosch also sells a 200 watt 4 amp fast charger and a 200 watt 4 amp smart charger for ~$130 > Spare/replacement batteries that fit this frame: the 750 Wh is $1,000 and there are two smaller sizes about the same cost per watthour. > frame feels big, I'm 5'11" and the larger was maybe too large > cap covering the charger is garbage... > Battery will not charge if it's too warm, and usually takes 30-60mins to cool after riding before it will charge. And basic charger may or may not start charging on it's own. I've several times found it idle and not charging. I'm hoping the smart charger option will fix this... > the codes and screen are unreadable. Battery just has 4 leds and error codes are sequences of flashing. the LED screen display, the settings are all just hieroglyphic symbols. The bike came with a quick start guide but did not come with the manual so this was a huge pain to find and understand. Cannondale's website is weird to navigate for manuals.

Helpful?
Mike
Oregon
Rated 1.0 out of 5 stars

Motor cuts out, inaccurate range

11 months ago

I've put about 100 city-commuting miles on this bike. I get about 25 to 30 miles running it at 2/5 and 3/5 power (nowhere near the advertised 60+). During this time, I've had the engine die six times while riding, requiring me to stop the bike and restart it. I have another cheaper eBike and I have never had this issue before. I've also had the chain fall off and get jammed in the rear cassette. I would not recommend this bike because of this defect.

Height:5'10"
Experience Level:Experienced
Riding Frequency:Daily
No, I do not recommend this product

Overall Fit Rating

Runs SmallRuns Large
Helpful?
Seth
Nashville
Rated 3.0 out of 5 stars

fast but loud

1 year ago

While this does get the job done. The noise coming off of the motor is too much. I have used multiple e-bikes and this is by far the loudest. Just seemed like a lower step in quality for cannondale.

Age:25–34
Weight:225–250 lbs.
Inseam:32"
Height:6'1"
Experience Level:Experienced
Riding Frequency:Multiple times per week
No, I do not recommend this product

Overall Fit Rating

Runs SmallRuns Large
Helpful?
Stevew328
Rated 2.0 out of 5 stars

Instructions suck

6 months ago

I'm sure it will be fine once I get it together, but if you've never put a bike together, just have them do it at the store. The photos in the instruction booklet are too dark so you can't even see details (I had to guess what type of brakes and front wheel connection I had), then there are missing steps (like "remove these weird plastic pieces before you try to put the wheel on"), and after it was all said and done, and I had gone through ALL of the steps, I had three things hanging off that weren't connected. So I have to take it all apart and figure out how / where to put those. Not worth the frustration IMO

Height:5'10"
Experience Level:Beginner
Riding Frequency:A few times per month
No, I do not recommend this product
Helpful?
