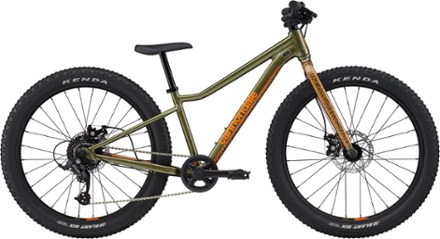

Cannondale Trail Plus 24 Kids' Mountain Bike - Mantis

Item #215834
Product Image of color Mantis loading
Mantis
$490.00
Color: Mantis
Size: 24 IN
Quantity
Choose a shipping method

Members get an estimated 10% back on this item as a part of your annual .

To buy,  sign in as an REI Co-op Member or join now.
Join the co-op today to get access to a lifetime of benefits.

Make getting off-road easy and fun with the Cannondale Trail Plus 24 kids' bike. Your little shredder will be ready for the trails, thanks to the plentiful grip and comfortable ride of its big tires.

  • Features

    • Lightweight, durable SmartForm C3 alloy frame and fork
    • Light-action 8-speed shifting
    • Powerful disc brakes
    • Super grippy kids' plus-size (24 x 2.6 in.) wheels and tires
    • Specs and images are subject to change

    Imported.

    This bike comes with Coast to Coast Support, which includes:
    • 1 year of free adjustments (see more below)
    • In-store bike assembly
    • Pickup in store or curbside
    • Bike experts available at 170+ bike shops
    REI Co-op Members get more:
    • Free flat tire repairs (labor only; parts not included)
    • 20% off shop services
    More about our free adjustments:
    New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.

    View the Cannondale Trail Product LineView all Cannondale Kids' Mountain Bikes

  • Technical Specs

    Best Use

    Mountain Biking

    Mountain Bike Style

    Trail

    Frame

    SmartForm C3 alloy

    Fork

    SmartForm C3 alloy, 1-1/8 in. steerer

    Bike Suspension

    No Suspension

    Crankset

    Prowheel Pro-V30, 145 mm length, 30T

    Bottom Bracket

    Cartridge, square taper

    Shifters

    8-speed trigger shifter

    Rear Derailleur

    microSHIFT M21S

    Rear Cogs

    12-32T, 8-speed

    Number of Gears

    8 gear(s)

    Brake Type

    Mechanical Disc Brake

    Brakes

    Tektro mechanical disc

    Brake Levers

    Alloy, linear pull

    Rims

    Cannondale, lightweight alloy, 24 in., 28-hole

    Front Hub

    Sealed alloy, QR

    Rear Hub

    8-speed freehub

    Wheel Size

    24 inches

    Tires

    Kenda Slant Six

    Tire Width

    2.6 inches

    Handlebar Shape

    Riser Bar

    Handlebar

    Lightweight alloy, 25.4 mm, 580 mm

    Stem

    Forged and machined aluminum, 30 mm w/ fitted stem cover

    Seat Post

    1-piece, clamp-less alloy, 25.4 mm

    Saddle

    Cannondale Kid's Comfort

    Pedals

    Wellgo Composite Platform with reflectors

    Headset

    FSA, alloy, 1-1/8 in.

    Chain

    KMC Z8.1, 8-speed

    Weight

    24 lbs. 8.2 oz.

    Bike Weight

    Bike weight is based on median size, as sold, or the average of two median sizes.

    Gender

    Kids'

  • Size Chart

    24 IN
    ReachN/A
    Stack52.2
    Effective Top Tube51.2
    Seat Tube Center-Top32.5
    Standover Height59.4
    Head Tube Length9.5
    Head Tube Angle (degrees)69.5
    Seat Tube Angle (degrees)72.0
    Bottom Bracket Height24.8
    WheelbaseN/A
    Chainstay43.0
    Fork Offset4.0

    Sizing Notes

    Measurements are stated in centimeters unless otherwise noted.

    How we measure bikes

    1. Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
    2. Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
    3. Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
    4. Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
    5. Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
    6. Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
    7. Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
    8. Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
    9. Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
    10. Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
    11. Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
    12. Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
