Electra Dawn Loft Go! 7D EQ Step-Thru Electric Bike
This product is not available.

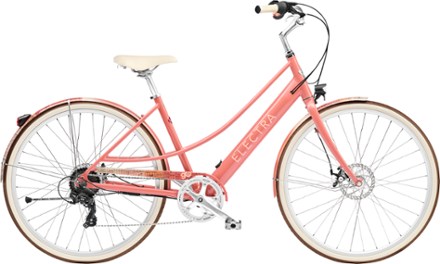

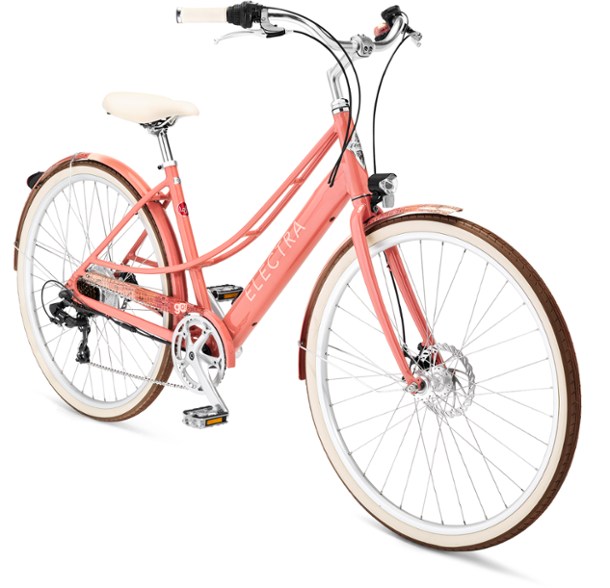

With a sleek, step-through frame detailed with cityscape graphics, the Electra Dawn Loft Go! 7D EQ Step-Thru e-bike gives you the range to explore to the edges of town and everywhere in between.
Shop similar productsKey Details
E-Bike Classification
Class 1: pedal assist up to 20 mph
Motor
Hyena 250 W
Battery Capacity (Wh)
250 watt hours
Weight
46 pounds
- Fully integrated battery lowers the center of gravity and balances weight distribution for a smooth ride and clean look
- Electra e-bike system delivers a top assisted speed of 20 mph and a range up to 40 mi.
- 250-watt rear hub motor provides 3 levels of support and delivers 40 Nm of torque
- Battery fully charges in 4 hrs.
- Pair with the Trek Central App on your smartphone to access useful information like motor range, battery charge, turn-by-turn navigation and more
- Retro-leatherette saddle provides comfort for urban riders
- Front and rear mechanical disc brakes allow for powerful stopping
- 7-speed derailleur and twist shifter with optical display let riders easily shift gears
- Fast-rolling 700c city-read tires are capable of handling unpredictable terrain around town
- Patented Flat Foot Technology® ensures an upright, relaxed and comfortable ride
- Fully equipped with extruded alloy fenders and front and rear LED lights
- Includes matching bell, saddle, grips and fenders
- Rack and ring lock compatible (not included)
- Customize your ride with a bag or basket (not included)
- Note: Electra e-bikes require the removal or replacement of battery by an authorized mechanic
- NOTE: Specs and images are subject to change based on component availability
Imported.
This e-bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
View the Electra Loft Product LineView all Electra Electric City Bikes- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- An additional year of free adjustments on e-bikes
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Cycling |
|---|---|
| E-Bike Classification | Class 1: pedal assist up to 20 mph |
| Motor | Hyena 250 W |
| Motor Type | Geared Hub |
| Motor Torque (Nm) | 40 Newton meters |
| Battery Type | Lithium Ion |
| Battery Capacity (Wh) | 250 watt hours |
| Battery Removable | No |
| Charge Time (hrs) | 4 hours |
| Pedal Assist Range | 16-40 miles |
| Frame | 6061-T6 aluminum |
| Step-Through | Yes |
| Bike Suspension | No Suspension |
| Fork | Hi-ten steel unicrown, straight/tapered leg |
| Fork Travel | Not Applicable |
| Crankset | Forged alloy 170 mm, 44T chainring |
| Bottom Bracket | Hyena T47 with integrated torque and cadence sensor |
| Shifters | 7-speed twist with optical display |
| Rear Derailleur | 7-speed |
| Rear Cogs | 13-34T |
| Number of Gears | 7 gear(s) |
| Brake Type | Mechanical Disc Brake |
| Brakes | Flat mount mechanical disc |
| Brake Levers | 3-finger |
| Rims | Double-walled alloy; front: 700c x 32h; rear: 700c x 36h |
| Front Hub | Low-flange alloy; 6-bolt disc; 32h; nutted |
| Rear Hub | 6-bolt disc; 36h; nutted |
| Wheel Size | 700c |
| Tires | City tread |
| Tire Width | 40 millimeters |
| Handlebar Shape | Riser Bar |
| Handlebar | Low rise; alloy custom bend |
| Stem | Cast alloy 25.4 mm quill/92 mm extension |
| Seat Post | Alloy, micro-adjust 27.2 x 350 mm |
| Saddle | Retro leatherette |
| Pedals | Alloy platform with nonslip rubber tread |
| Headset | External cup threaded |
| Chain | KMC Z7 |
| Weight | 46 pounds |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
Electra Bikes (215807)
| S | M | |
|---|---|---|
| Height Range | 5'0" - 5'8" | 5'6" - 6'3" |
| Reach | 34.7 | 38.8 |
| Stack | 59.6 | 60.5 |
| Seat Tube Center-Top | 41.5 | 48.5 |
| Standover Height | 54.0 | 55.0 |
| Head Tube Length | 17.5 | 18.5 |
| Head Tube Angle (degrees) | 68.0 | 68.0 |
| Seat Tube Angle (degrees) | 66.5 | 66.5 |
| Wheelbase | 112.1 | 116.5 |
Sizing Notes
Measurements are stated in centimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
