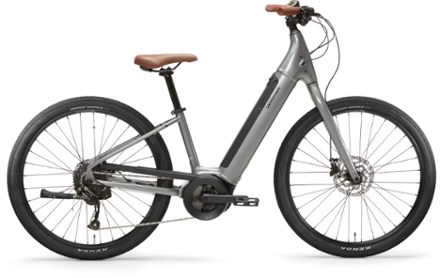

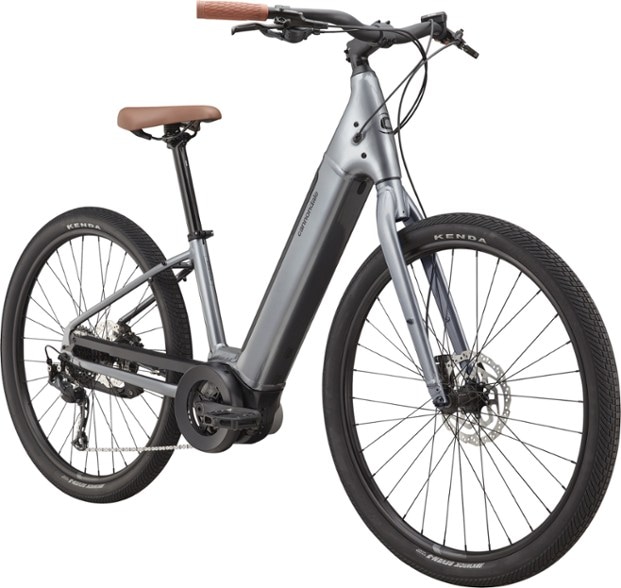

Cannondale Adventure Neo 4 Bike
Discover a new favorite way of getting from here to there. Built for city streets and the great open road, the Cannondale Adventure Neo 4 e-bike is comfy, intuitive and sure to put you in a good mood.
Key Details
- Lightweight and durable, the SmartForm C3 alloy step-through frame makes this bike easy to get on and off
- 9-speed shifting and post-mount hydraulic disc brakes offer reliable performance
- Removable down tube battery adds convenience
- Fully internal cable routing keeps things tidy
- Dual water bottle mounts on the head tube put hydration within easy reach
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- An additional year of free adjustments on e-bikes
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
UL2849 certified
Best Use | Recreational Cycling |
---|---|
E-Bike Classification | Class 1: pedal assist up to 20 mph |
Motor | Bosch Active Line |
Motor Type | Mid-Drive |
Motor Torque (Nm) | 40 Newton meters |
Battery Type | Lithium Ion |
Battery Capacity (Wh) | 400 watt hours |
Battery Removable | Yes |
Charge Time (hrs) | 3.5 hours |
Pedal Assist Range | 64 miles |
Frame | SmartForm C3 Alloy step-through frame |
Step-Through | Yes |
Bike Suspension | No Suspension |
Fork | SmartForm C3 Alloy, 1-1/8 in. steerer, post mount disc, mid-blade rack/fender mounts, crown accessory mount, 45 mm offset |
Crankset | FSA Bosch E-Bike, 38T |
Shifters | 9-speed |
Rear Derailleur | Shimano Altus |
Rear Cogs | Shimano HG200, 11-36T, 9-speed |
Number of Gears | 9 gear(s) |
Brake Type | Hydraulic Disc Brake |
Brakes | Shimano MT200 hydraulic disc, 180/160 mm RT10 rotors |
Brake Levers | Shimano MT200 hydraulic disc |
Rims | Cannondale 2, double wall |
Front Hub | Shimano TX505, quick-release axle |
Rear Hub | Shimano TX505, quick-release axle |
Wheel Size | 27.5 inches |
Tires | Kenda Kwick Seven.5, 27.5 x 2.2 in. |
Tire Width | 2.2 inches |
Handlebar Shape | Riser Bar |
Handlebar | Cannondale E-Series alloy, ergo backsweep, 680 mm |
Stem | Cannondale 3 with Intellimount, alloy, 31.8 mm clamp |
Seat Post | Cannondale 4, 6061 Alloy, 31.6 x 350 mm |
Saddle | Cannondale Ergo Comfort |
Pedals | Cannondale Comfort |
Headset | 1-1/8 in. |
Chain | Shimano HG93, 9-speed |
Weight | Unavailable |
Gender | Unisex |
S/M | M/L | |
---|---|---|
Reach | 37 | 40.5 |
Stack | 68.8 | 70.7 |
Effective Top Tube | 59.4 | 63.5 |
Seat Tube Center-Top | 37 | 46 |
Standover Height | 44.5 | 45.5 |
Head Tube Length | 21.5 | 23.5 |
Head Tube Angle (degrees) | 70° | 70° |
Seat Tube Angle (degrees) | 72° | 72° |
Bottom Bracket Height | 28.4 | 28.4 |
Wheelbase | 112.4 | 116.6 |
Chainstay | 48.8 | 48.8 |
Fork Offset | 4.2 | 4.2 |
Sizing Notes
Measurements are stated in centimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
Review this Product
Adding a review will require a valid email for verification
Most Helpful Favorable Review
Most Helpful Critical Review
Customer Images
Great bike, except the rear rims.

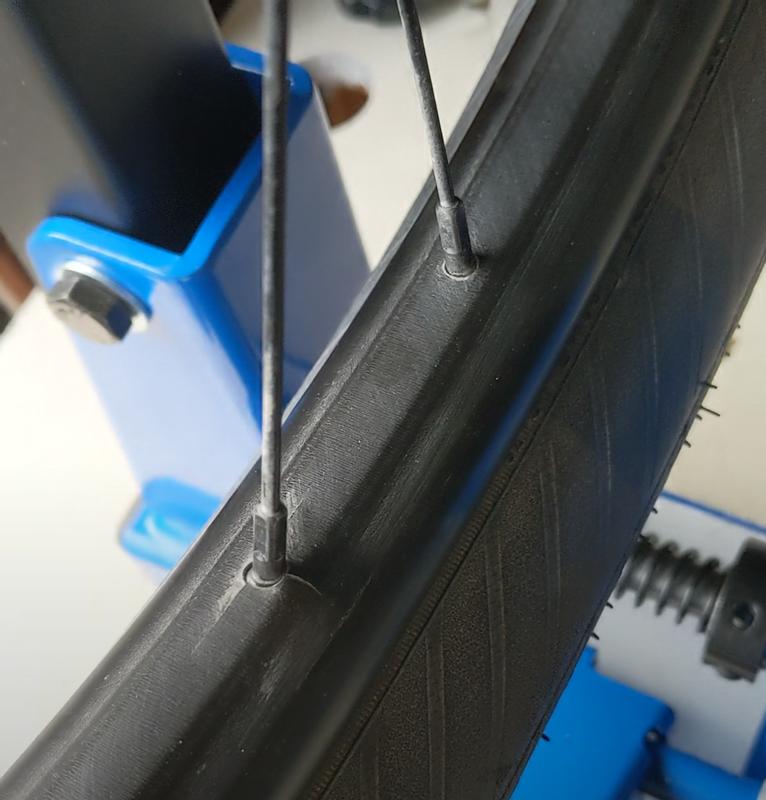

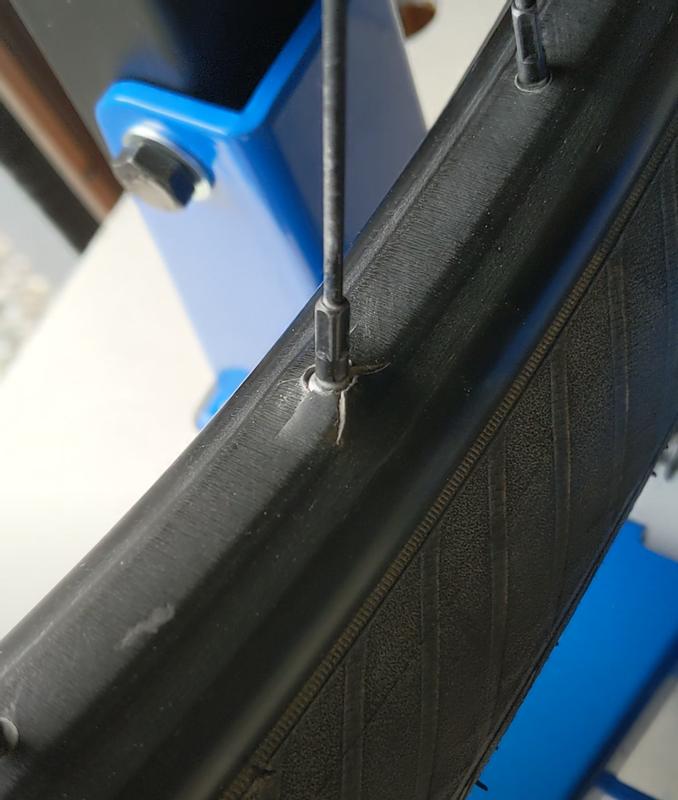

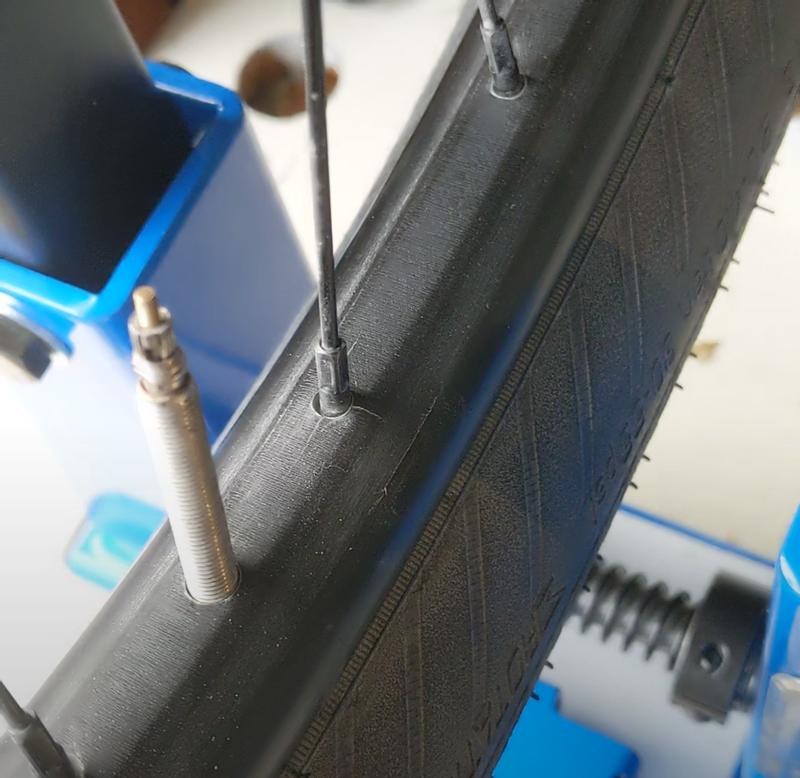

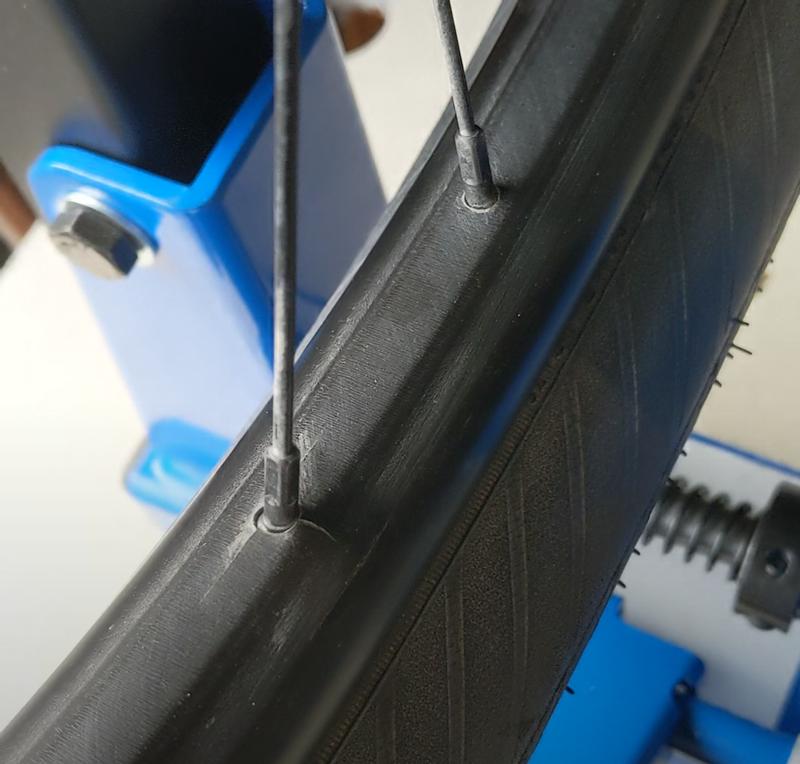

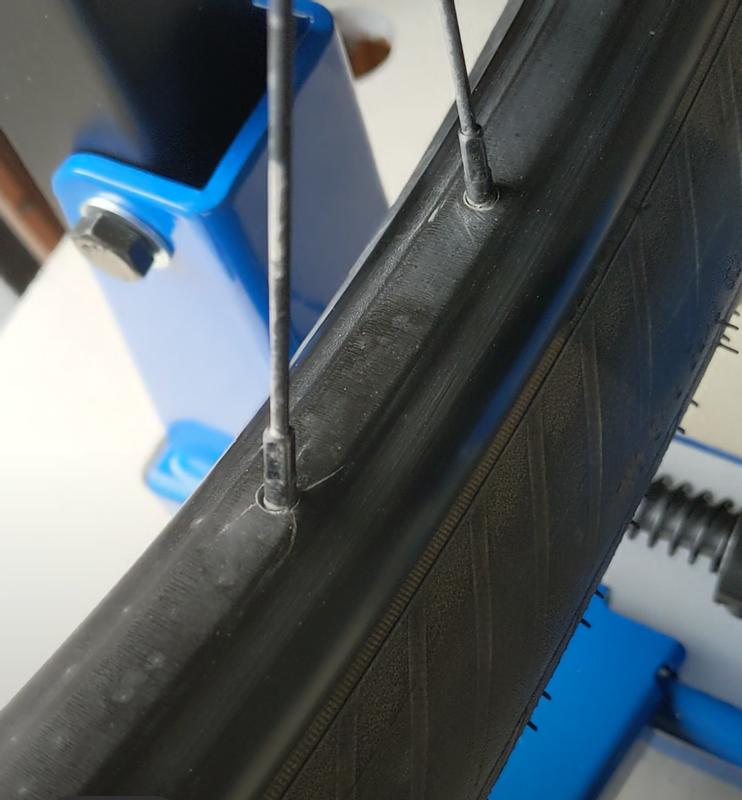

Great bike. I have a fleet of them that we rent out. They bikes perform well, and for the money it is a fantastic ebike. The only reason for three stars instead of five is the rear wheels. THIS HAS NOTHING TO DO WITH REI. The rear wheels on this bike are bunk, and probably defective. I will not say how many tens of this bike I have, but exactly 90% of the rear wheels, properly tension balanced, cracked and blew apart at the spoke holes. This a dangerous problem to have! I've sucked it up and replaced with higher quality rear wheels. This was not as issue with the 2023 model, so maybe Cannondale can isolate it to a serial number span. Cannondale pretty much told me to just take the bikes back to REI, which I refuse to do and punish REI. Buy this bike, but carefully inspect your rear rim frequently
Really wanted to love this bike
I'm 5'7" and am apparently right in between the S/M and L frame sizes so neither was quite right. I gave the bike 2 stars because Cannondale has really cut some features on this bike that you see on other comparably priced bikes. There are no lights, fenders, gear indicator, seat suspension, bell or rack. The hand grips are just inexpensive plastic tubes without the palm rest that other bikes have. The handle bars are not adjustable up or down. You can only tilt them a bit more towards or away from you. The gears shifted very roughly. REI had checked out the bike before I picked it up so I'm assuming it's an issue with the bike. A lot of the features that were missing are just the part of what make a bike "nice" to ride but for the price, they should be there.
Nice bike cheapened by low-end components
This is a nice bike with a solid Bosch Active Line motor which works well but for some reason Cannondale decided to save a few bucks and used an Altus derailleur and shifter which is next to the bottom of the range for Shimano and is often found on the cheapest of bikes sold at discount stores. Why not spend a few dollars more (under $100) and use a Deore 10s group? My Specialized Roll Comp X1, a $900 bike (on sale now for $700) uses the Deore 10s and the shifting is far smoother and quieter. I would have gladly paid $2,800 instead of $2,700 for a better bike, actually just a reasonable bike as Altus is not reasonable for this expensive bike. I am seriously considering removing the Altus junk and replacing it with Deore which will take time and effort. It is a shame that Cannondale chose to use low end components for an expensive e-Bike.
Minor Trade-Off for the Price-Point
Bike checks most of the boxes very well - market-leading mid-drive, battery/range, weight, comfort and price point. However the trade offs for the price point IMO are the lack of accessories and second-tier components. The Adventure Neo 4 is a stripped-down version of its trim lines - e.g. eliminating the rear rack and lights; even though the frame and wheels are identical across trim lines, the rack isn’t available to order and install on the Neo 4, and for us the rack is essential. We also tried gold-standard Topeak aftermarket racks, but the geometry (top of rear tire relative to braze-on) would have required some heroic bending of the support arms or perhaps fabricating replacement arms. This rack issue ended up being our deal-breaker and we returned the bike for a Gazelle. But while I’m at it I wasn’t super-happy buying the bike with microSHIFT components vs industry standard Shimano - we were told that Cannondale substituted microSHIFT for Shimano at some point in its model life as supply chains got tight. Probably not a material compromise but all else equal we’d rather have Shimano. Hope this was helpful.
Cannondale Neo 4 Bike
My wife loves the pedal assist e-bike! Makes hills and head winds disappear. Comfortable riding position.
No Frills eBike with So-So Power
Chain fell off the chain ring twice in the first month - the chain stuck fast between the chain ring and the crank arm. Dislodging it was difficult due to the chain guard being in the way - fixing it resulted in some scrapes (paint loss) to the chain ring. Took it back to REI, good customer service, something was fixed around the hanger bolt on the rear, no problems since (so far). Electric boost is meh. The seat is not comfortable for long rides. Would call this an entry-level ebike. Gets the job done, no frills.
Cannondale Adventure Neo 4 Bike
Purchase went smoothly, we were helped with everything, Bike is great!
GREAT1. Fits me better than my old bike!
I have only rode this bike a couple of times but let me say that it was fantastic! It has a wonderful step-thru frame that allows me to get on the bike so much easier than my old bike.
