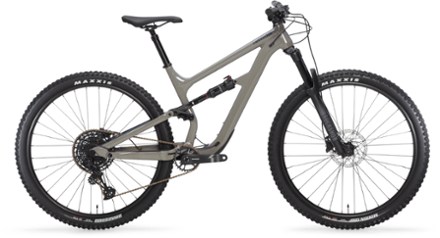

Cannondale Habit 4 Bike
$2,116.93Compared to $3,025.00*Save 30%
A 29er trail bike with its priorities straight, the Cannondale Habit 4 has a progressive design that delivers playful agility and serious capability—your favorite trails have never been more fun.
Key Details
Wheel Size
29 inches
Fork Travel
140 millimeters
Number of Gears
12 gear(s)
- SmartForm C1 alloy frame delivers lightweight, responsive handling and 130 mm of plush suspension controlled by a RockShox Deluxe Select+ shock
- RockShox 35 RL Gold fork delivers 140 mm of hit- and bump-absorbing travel
- Designed to be your daily ride, the Habit is built for easy service with durable suspension pivots, easy internal cable routing and no oddball proprietary stuff
- SRAM SX Eagle 1 x 12-speed drivetrain offers reliable shifting across the 11–50-tooth cassette, offering a wide range of gears to take on any terrain
- Shimano MT200 hydraulic discs provide reliable all-condition stopping power
- Internally routed TranzX dropper post gets your seat low and out of the way for descents, and then quickly back up for climbs
- 29 in. wheels with big, grippy tires offer a plush ride with plenty of traction
- Progressive geometry, a properly wide handlebar and a short stem support an effective riding position, helping you get the most out of every trail
- Proportional Response design tailors the actual suspension layout by size so that every rider gets optimal traction, suppleness and control
- Using size-specific center-of-gravity data, the suspension is designed and optimized for each frame size
- Ai Offset Drivetrain opens up the rear triangle for more tire clearance, while keeping the chainstays short for nimble agility; a stiffer, stronger rear wheel is just icing
- A reversible chip lets you to tweak the geometry, raise the bottom bracket and steepen the head angle by half a degree, or switch from 29er to 27.5+ wheels
- A rugged rubber guard adds protection around the bottom bracket, guarding the frame against debris and trail obstacles
- Thru-axle pivot system creates a rock-solid connection between both sides of the swingarm for instantaneous response—no twist, no flex and no special tools required
- Pedals not included
- NOTE: Specs and images are subject to change based on component availability
Imported.
This bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
View the Cannondale Habit Product LineView all Cannondale Full-Suspension Mountain Bikes- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Mountain Biking |
|---|---|
| Frame | 130 mm travel, SmartForm C1 alloy |
| Mountain Bike Style | Trail |
| Bike Suspension | Full Suspension |
| Fork | RockShox 35 Gold RL, 140 mm, DebonAir, 15x110 mm thru axle, tapered steerer, 51 mm offset |
| Fork Travel | 140 millimeters |
| Rear Shock | RockShox Deluxe Select+ with 2-position mode adjust, adjustable rebound |
| Crankset | 1-1000 Eagle DUB, 30T, Ai offset |
| Bottom Bracket | SRAM DUB BSA MTB83 |
| Shifters | 12-speed |
| Rear Derailleur | SRAM SX Eagle |
| Rear Cogs | 11-50T, 12-speed |
| Number of Gears | 12 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Shimano MT200 hydraulic disc, 180/180 mm RT30 rotors |
| Brake Levers | Shimano MT200 hydraulic disc |
| Rims | WTB STX i23 TCS, 32h, tubeless ready |
| Front Hub | Shimano MT400, 15 x 110 mm thru axle |
| Rear Hub | Shimano MT400 12 x 148 mm thru axle |
| Wheel Size | 29 inches |
| Tires | Front: Maxxis Minion DHF, 29 x 2.5 in., EXO casing, tubeless ready; rear: Maxxis Dissector, 29 x 2.4 in., EXO casing, tubeless ready |
| Tire Width | 2.5 inches 2.4 inches |
| Handlebar Shape | Riser Bar |
| Handlebar | Cannondale 3 Riser, 6061 alloy, 15 mm rise, 8 deg. sweep, 4 deg. rise, 780 mm |
| Stem | Cannondale 3, 6061 alloy, 31.8 mm, 0 deg. |
| Seat Post | TranzX dropper, internal routing, 31.6 mm, 125 mm (S), 150 mm (M-XL) |
| Dropper Post | Yes |
| Saddle | Cannondale Ergo XC |
| Pedals | Not included |
| Headset | 1-1/8 to 1-1/2 in., sealed angular contact bearings |
| Chain | 12-speed |
| Weight | 35 lbs. 8 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
Cannondale Bikes (186742, 186741)
| S | M | L | XL | |
|---|---|---|---|---|
| Height Range | 5' 2" - 5'5" | 5'6" - 5'9" | 5'8" - 6'0" | 6' 1" - 6'5" |
| Reach | 40.0 | 43.0 | 46.0 | 49.0 |
| Stack | 60.7 | 61.6 | 62.5 | 63.4 |
| Effective Top Tube | 51.0 | 54.3 | 57.9 | 61.7 |
| Seat Tube Center-Top | 40 | 44 | 48 | 52 |
| Standover Height | 72 | 75 | 77 | 78 |
| Head Tube Length | 10.5 | 11.5 | 12.5 | 13.5 |
| Head Tube Angle (degrees) | 66.0° | 66.0° | 66.0° | 66.0° |
| Seat Tube Angle (degrees) | 66.3° | 66.3° | 66.3° | 66.3° |
| Bottom Bracket Height | 33.9 | 33.9 | 33.9 | 33.9 |
| Wheelbase | 114.2 | 117.6 | 121 | 124.4 |
| Chainstay | 43.5 | 43.5 | 43.5 | 43.5 |
| Fork Offset | 5.1 | 5.1 | 5.1 | 5.1 |
Sizing Notes
Measurements are stated in centimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
