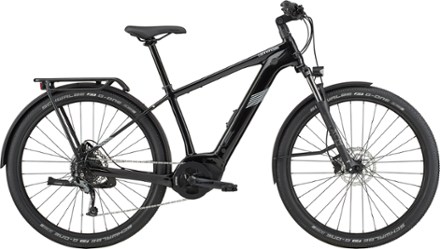

Cannondale Tesoro Neo X 3 Electric Bike
This product is not available. Good news: we have a newer version.
Created for on- and off-road use, the Cannondale Tesoro Neo X 3 electric bike is a fully loaded trekking machine with the power to get you there.
Shop newer versionKey Details
- For bikepacking, backroad trekking or rugged transport, its mountain bike-inspired frame and fork and big 29 in. wheels let you get in deeper and go further
- SmartForm C2 alloy construction delivers a frame that is light and durable with a lively feel
- Bosch Active Line Plus drive unit is perfect for urban and adventure riding; it's silent, powerful and light, with virtually no motor resistance above the 20mph support limit
- Proprietary motor mount positions the Bosch drive unit low and forward in the frame, keeping the center of gravity low and the chainstays short for agile handling
- Secure, rattle-free fenders and a full rear rack, bright front and rear lights—and even a kickstand—mean you're ready to tackle any adventure
- All the features that make it so capable off-road translate into a comfortable, confident experience on-road, so you don't have to worry about potholes, gravel or tram tracks
- An integrated wheel sensor helps track your activity—like speed, distance and calories burned—registers your bike and reminds you of needed service via the free Cannondale app
- Highly reflective accents on the frame and fork increase visibility in low-light conditions
- NOTE: Specs and images are subject to change based on component availability
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- An additional year of free adjustments on e-bikes
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
UL2849 certified
| Best Use | Recreational Cycling |
|---|---|
| E-Bike Classification | Class 1: pedal assist up to 20 mph |
| Motor | Bosch Performance Line Cruise |
| Motor Type | Mid-Drive |
| Motor Torque (Nm) | 65 Newton meters |
| Battery Type | Lithium Ion |
| Battery Capacity (Wh) | 400 watt hours |
| Battery Removable | Yes |
| Charge Time (hrs) | 4.5 hours |
| Pedal Assist Range | 60 miles |
| Frame | SmartForm C2 alloy, removable down tube battery, SAVE, tapered head tube, internal cable routing, 148x12mm thru axle, post mount disc, Si kickstand mount |
| Step-Through | No |
| Bike Suspension | Front Suspension |
| Fork | SR Suntour XCM, 100mm, Coil, 46mm offset |
| Fork Travel | 100 millimeters |
| Crankset | Bosch Gen3, 38t |
| Shifters | Shimano Acera, 9-speed |
| Rear Derailleur | Shimano Alivio |
| Rear Cogs | Shimano, 11-36, 9-speed |
| Number of Gears | 9 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Shimano MT200 hydro disc, 180/180mm RT10 rotors |
| Brake Levers | Shimano MT200 hydro disc |
| Rims | WTB STX i29 TCS, 32h, tubeless ready |
| Front Hub | Shimano QR |
| Rear Hub | Shimano MT400 12x148 |
| Wheel Size | 29 inches |
| Tires | Schwalbe G-One Allround Performance, 29 x 2.25 in., RaceGuard |
| Tire Width | 2.25 inches |
| Handlebar Shape | Riser Bar |
| Handlebar | Cannondale 3 Riser, 6061 alloy, 15mm rise, 8-degree sweep, 4-degree rise, 740mm |
| Stem | Cannondale adjustable, A-headset, 31.8mm |
| Seat Post | Cannondale 4, 6061 alloy, 31.6 x 350mm |
| Saddle | Cannondale Ergo Touring |
| Pedals | Cannondale Platform |
| Headset | Integrated sealed bearing, tapered |
| Chain | Shimano HG93, 9-speed |
| Weight | 54 lbs. 8 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
| S | M | L | XL | |
|---|---|---|---|---|
| Reach | 39.3 | 43 | 45.1 | 47.4 |
| Stack | 62.9 | 62.9 | 63.7 | 64.4 |
| Effective Top Tube | 58.0 | 61.7 | 64.0 | 66.5 |
| Seat Tube Center-Top | 38.0 | 43.5 | 48.5 | 53.5 |
| Standover Height | 74.6 | 77.5 | 81.3 | 84.7 |
| Head Tube Length | 12.8 | 12.8 | 13.6 | 14.4 |
| Head Tube Angle (degrees) | 68° | 68° | 68° | 68° |
| Seat Tube Angle (degrees) | 73.5° | 73.5° | 73.5° | 73.5° |
| Bottom Bracket Height | 31.5 | 31.5 | 31.5 | 31.5 |
| Wheelbase | 115.5 | 119.2 | 121.6 | 124.2 |
| Chainstay | 47.9 | 47.9 | 47.9 | 47.9 |
| Fork Offset | 5.1 | 5.1 | 5.1 | 5.1 |
Sizing Notes
Measurements are stated in centimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
