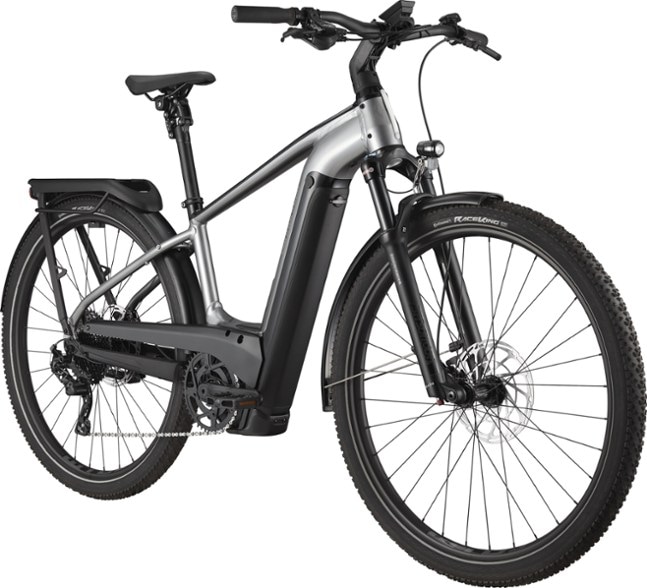

For bike touring, backroad trekking or rugged transport, the Cannondale Tesoro Neo X 1 electric bike's MTB-inspired frame and fork along with big 29 in. wheels live to be pointed off pavement.

  • Features

    • Secure, rattle-free fenders, a full rear rack, bright front and rear lights and even a kickstand mean you're ready to tackle any adventure
    • Bosch Performance Line Speed motor offers 75 Nm of torque and seamless assistance all the way up to 28 mph
    • SmartForm C1 alloy frame is light, stiff and durable and comes prewired so you can add a second battery for adventures with double the range
    • Ai Offset drivetrain opens up the rear triangle for more tire clearance, while keeping the chainstays short for nimble agility
    • 100mm of front suspension and wide 2.25 in. tires smooth out rough roads, gravel and potholes for a comfortable, confident experience on- and off-road
    • Specs and images are subject to change

    Imported.

    Free Adjustment Period:
    New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
    View all Cannondale Touring Bikes
  • Technical Specs

    Best Use

    Urban Cycling

    Bike Touring

    E-Bike Classification

    Class 3: pedal assist up to 28 mph

    Motor

    Bosch Performance Line CX 250W, speed configuration (max 28mph)

    Motor Type

    Mid-Drive

    Motor Torque (Nm)

    75

    Battery Type

    Lithium Ion

    Battery Capacity (Wh)

    500 watt hours

    Battery Removable

    Yes

    Charge Time (hrs)

    4.5 hours

    Pedal Assist Range

    70 miles

    Bike Frame Material

    Aluminum

    Frame

    SmartForm C1 alloy, dual battery ready, removable downtube battery, SAVE, tapered , internal cable routing, Ai offset drivetrain, 148x12mm thru axle, post mount disc, KickFlip hidden kickstand

    Step-Through

    No

    Bike Suspension

    Front Suspension

    Fork

    SR Suntour Raidon 34, 100mm, 15x110, 46mm offset

    Fork Travel

    100 millimeters

    Crankset

    Bosch Gen4 with custom Ai offset, 38t

    Shifters

    Shimano SLX, 12-speed

    Rear Derailleur

    Shimano SLX, SGS Shadow Plus

    Rear Cogs

    Shimano SLX, 10-51, 12-speed

    Number of Gears

    12 gear(s)

    Brake Type

    Hydraulic Disc Brake

    Brakes

    Shimano Deore hydro disc, 203/180mm RT30 rotors

    Brake Levers

    Shimano Deore hydro disc

    Rims

    WTB STX i29 TCS, 32h, tubeless ready

    Front Hub

    Shimano MT400 15x110 thru axle

    Rear Hub

    Shimano MT510, 12x148 thru axle

    Wheel Size

    29 inches

    Tires

    Schwalbe G-One Allround Performance, 29 x 2.25 in., RaceGuard

    Tire Width

    2.25 inches

    Handlebar Shape

    Riser Bar

    Handlebar

    Cannondale 3 Riser, 6061 alloy, 15mm rise, 8-degree sweep, 4-degree rise, 740mm

    Stem

    Cannondale Adjustable , A-headset, 31.8mm

    Saddle

    Cannondale Ergo Touring

    Pedals

    Cannondale Fitness

    Headset

    Integrated sealed bearing, tapered

    Chain

    KMC X12, 12-speed

    Weight

    51 lbs. 9.6 oz.

    Bike Weight

    Bike weight is based on median size, as sold, or the average of two median sizes.

    Gender

    Unisex

  • Size Chart

    S M L XL
    Reach 38.7 42.7 45.8 48.8
    Stack 62.4 64.4 65.3 66.2
    Effective Top Tube 55.9 59.5 62.8 66.0
    Seat Tube Center-Top 40 43.5 47 50
    Standover Height 73.2 72.1 73 72.9
    Head Tube Length 12 12 13 14
    Head Tube Angle (degrees) 68.4° 68.4° 68.4° 68.4°
    Seat Tube Angle (degrees) 74.6° 75.4° 75.4° 75.4°
    Bottom Bracket Height 31.2 29.3 29.3 29.4
    Wheelbase 113.3 117 120.5 123.8
    Chainstay 47 47 47 47
    Fork Offset 5.1 5.1 5.1 5.1

    Sizing Notes

    Measurements are stated in centimeters unless otherwise indicated.
