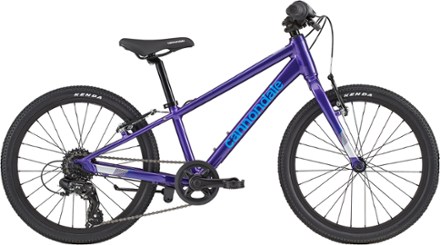

Cannondale Quick 20 Kids' Bike

Item #166396
Product Image of color Ultra Violet loading
Ultra Violet

This product is not available.

Shop similar products

Cruise sidewalks in style on the Cannondale Quick 20 kids' bike. Its lightweight frame and 7-speed gearing makes short work of hills, while stable handling and powerful brakes make descents a breeze.

  • Features

    • Handlebar, grips, brake levers, saddle and cranks are designed specifically for little cyclists
    • Specs and images are subject to change

    Imported.

    This bike comes with Coast to Coast Support, which includes:
    • 1 year of free adjustments (see more below)
    • In-store bike assembly
    • Pickup in store or curbside
    • Bike experts available at 170+ bike shops
    REI Co-op Members get more:
    • Free flat tire repairs (labor only; parts not included)
    • 20% off shop services
    More about our free adjustments:
    New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.

    View the Cannondale Quick Product LineView all Cannondale Kids' Cruiser Bikes

  • Technical Specs

    Best Use

    Recreational Cycling

    Frame

    SmartForm C3 alloy

    Step-Through

    No

    Bike Suspension

    No Suspension

    Fork

    Rigid, SmartForm C3 alloy, 1 in. steerer

    Crankset

    Prowheel, Pro-V30, 110mm length, 30t

    Bottom Bracket

    Cartridge square taper

    Shifters

    Shimano Tourney Revo Twist Shifter, 7-speed

    Rear Derailleur

    Shimano Tourney

    Rear Cogs

    Sunrace, 11-28, 7-speed

    Number of Gears

    7 gear(s)

    Brake Type

    Rim

    Brakes

    Promax V-brake, alloy linear pull

    Brake Levers

    Promax

    Rims

    Cannondale lightweight alloy, 20 in., 28h

    Front Hub

    KT Alloy, nutted axle

    Rear Hub

    KT Alloy, 7-speed freehub

    Wheel Size

    20 inches

    Tires

    Kenda Small Block 8, 20 x 1.5 in.

    Tire Width

    1.5 inches

    Handlebar Shape

    Flat Bar

    Handlebar

    Lightweight Alloy, 580mm wide, 22.2mm

    Stem

    Alloy Ahead, 30mm

    Seat Post

    Lightweight alloy, 25.4mm

    Saddle

    Cannondale Ergo

    Pedals

    Wellgo composite platform with reflectors

    Headset

    VP, Alloy, 1 in. Ahead threadless, semi-integrated

    Chain

    KMC Z7, 7-speed

    Weight

    20 lbs. 3.2 oz.

    Bike Weight

    Bike weight is based on median size, as sold, or the average of two median sizes.

    Gender

    Kids'

  • Size Chart

    20 IN
    Height Range42" - 49"
    Reach30.7
    Stack44
    Effective Top Tube45
    Seat Tube Center-Top25.5
    Standover Height50.2
    Head Tube Angle (degrees)69.5
    Seat Tube Angle (degrees)72
    Bottom Bracket Height19.9
    Wheelbase85.9
    Chainstay36.5

    Sizing Notes

    Measurements are stated in centimeters unless otherwise indicated.

    How we measure bikes

    1. Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
    2. Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
    3. Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
    4. Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
    5. Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
    6. Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
    7. Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
    8. Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
    9. Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
    10. Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
    11. Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
    12. Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
