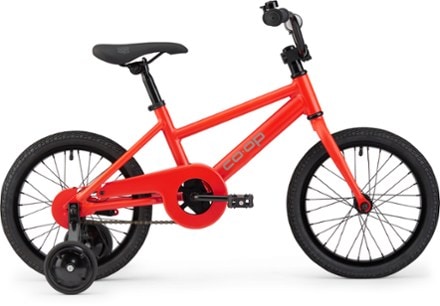

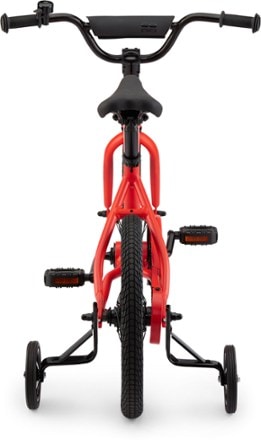

Co-op Cycles REV 16 Kids' Bike
This product is not available. Good news: we have a newer version.Shop newer version

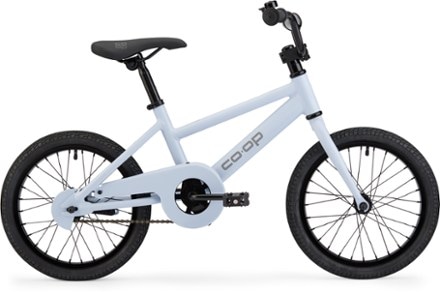

Get kids ready to pedal with the Co-op Cycles REV 16 kids' bike. It has removable training wheels, a low stand-over height for easy handling, and fun stickers so young bikers can customize their ride.
- Training wheels help new cyclists practice balance and ease into independent riding
- Sturdy and light aluminum frame can handle kids on the move

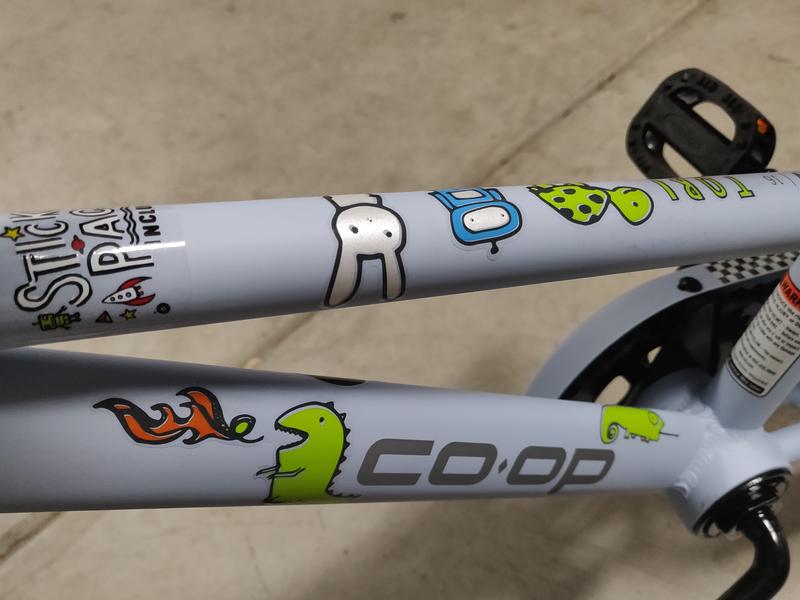

- Sticker pack includes tons of letters and fun designs so kids can customize their bike however they want
- Bicycle weight limit is 80 lbs. total, including rider + all gear carried on the bike and on the rider's body
- Specs and images are subject to change
Imported.This bike comes with Coast to Coast Support, which includes:View the Co-op Cycles Rev Product Line View all Co-op Cycles Kids' Training Wheel Bikes
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- Free flat tire repairs (labor only; parts not included)
- 20% off shop services
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
Bike Frame Material
6061 aluminum single-speed frame
Steel loose ball
Joytech, 28h, nutted
KT, 28h, nutted
Kenda Kontact 16 x 1.75 in.
Steel riser bar with padded crossbar
Steel BMX style
Wellgo composite platform
1-1/8 threadless steel
CW steel, 28t
16 lbs. 14.4 oz.
Bike weight is based on median size, as sold, or the average of two median sizes.
16 IN Reach 270 Stack 295 Effective Top Tube 384 Seat Tube Center-Top 250 Standover Height 438 Head Tube Angle (degrees) 70 Seat Tube Angle (degrees) 69 Wheelbase 738 Chainstay 304 Fork Offset 45
Measurements are stated in millimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
