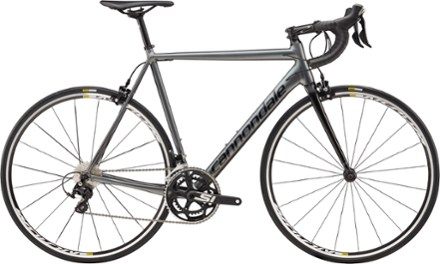

Wipe the tarmac with your competition aboard the speed-loving Cannondale CAAD12 105 bike. Its light aluminum frame delivers stiff, smooth handling to help you crank toward the finish with confidence.

  • Features

    • Stiff, smooth-riding frame and race-oriented geometry allow super-responsive handling
    • At under 1,100g, the CAAD12 aluminum frame barely tips the scale
    • SAVE micro-suspension technology in the frame, fork and seatpost adds flex in certain areas to absorb shock and vibration, improving rider comfort, handling and control
    • Oversized BB30a bottom bracket junction, asymmetric chainstays and flared Delta seat tube team up to add stiffness
    • Specs and images are subject to change

    Imported.

    View all Cannondale Racing Bikes
  • Technical Specs

    Best Use

    Road Cycling

    Bike Frame Material

    Aluminum

    Frame

    SmartForm C1 premium alloy

    Fork

    CAAD12, SAVE, BallisTec Carbon, 1-1/8" to 1-1/4" steerer, integrated crown race

    Bike Suspension

    No Suspension

    Crankset

    Cannondale Si, BB30a, FSA rings, 52/36 (CE 50/34)

    Bottom Bracket

    FSA BB30 Bearings

    Shifters

    Shimano 105

    Front Derailleur

    Shimano 105, braze-on

    Rear Derailleur

    Shimano 105

    Rear Cogs

    Shimano 105, 11-28, 11-speed

    Number of Gears

    22 gear(s)

    Brake Type

    Rim Brake

    Brakes

    Shimano 105

    Brake Levers

    Shimano 105

    Rims

    Mavic Aksium WTS

    Front Hub

    Mavic Aksium

    Rear Hub

    Mavic Aksium

    Wheel Size

    700c

    Tires

    Mavic Yksion Elite, folding, WTS, 700x25c

    Tire Width

    25 millimeters

    Handlebar Shape

    Drop Bar

    Handlebar

    Cannondale C3, butted 6061 Alloy, compact

    Stem

    Cannondale C3, 6061 Alloy, 31.8, 6 deg.

    Saddle

    Selle Royal Seta S1

    Pedals

    Not included

    Headset

    CAAD12, 1-1/4" lower bearing, 25mm top cap

    Chain

    Shimano HG601, 11-speed

    Weight

    Unavailable

    Bike Weight

    Bike weight is based on median size, as sold, or the average of two median sizes.

    Gender

    Unisex

  • Size Chart

    52 CM 54 CM 56 CM 58 CM 60 CM
    Height Range 5'3" - 5'6" 5'6" - 5'9" 5'9" - 6'0" 6'0" - 6'3" 6'3" - 6'6"
    Reach 53.8 57 58.5 60 61.5
    Stack 53.6 55.1 56.7 58.4 60.3
    Effective Top Tube 53.4 54.7 56.1 57.5 59.1
    Seat Tube Center-Top 53.8 57 58.5 60 61.5
    Standover Height 77.1 79.6 81.2 83.1 85.1
    Head Tube Length 12.5 13.9 15.5 17.5 19.5
    Head Tube Angle (degrees) 72.6° 72.9° 73.1° 73.2° 73.3°
    Seat Tube Angle (degrees) 74.1° 73.8° 73.5° 73.2° 72.9°
    Bottom Bracket Height 26.9 26.9 26.9 27.1 27.1
    Wheelbase 97.2 98 98.9 100 101.3
    Chainstay 40.5 40.5 40.5 40.5 40.7
    Fork Offset 4.5 4.5 4.5 4.5 4.5

    Sizing Notes

    Measurements are stated in centimeters unless otherwise indicated.
