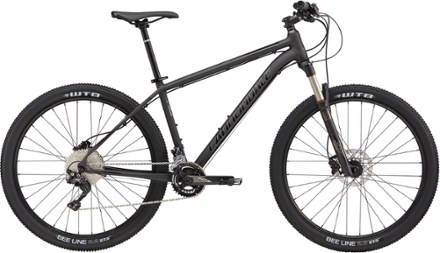

Cannondale  Trail 1 27.5 Bike - 2017

This product is not available.

Offering exceptional stiffness, durability and smooth riding on mountain bike trails and forest access roads, the Cannondale Trail 1 27.5 bike is packed with technical features.

Shop similar products

Features

  • Frame geometry strikes the ideal balance between race-level quickness and confidence-inspiring stability
  • All-Shimano drivetrain features intuitive trigger shifters and responsive rear derailleur to deftly move through the 22 gear combinations
  • Flattened and shaped seatstays and chainstays provide a surprisingly smooth ride
  • Hydraulic disc brakes deliver superb stopping power
  • WTB NineLine tires offer superb traction through mud, over rock and up steep climbs
  • Pedals not included
  • NOTE: Specs and images are subject to change based on component availability
This bike comes with Coast to Coast Support, which includes:
  • 1 year of free adjustments (see more below)
  • In-store bike assembly
  • Pickup in store or curbside
  • Bike experts available at 170+ bike shops
REI Co-op Members get more:
  • 20% off shop services
  • Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
More about our free adjustments:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.

View the Cannondale Trail Product LineView all Cannondale

Technical Specs

Best Use

Mountain Biking

Mountain Bike Style

Trail

Frame

SmartForm alloy

Bike Suspension

Front Suspension

Fork

RockShox Recon Gold RL 29"/27.5", 100mm, Solo Air, remote lockout

Fork Travel

100 millimeters

Crankset

FSA Comet MegaExo, 36/26, 11-speed

Bottom Bracket

FSA MegaExo

Shifters

Shimano SLX , 2x11

Front Derailleur

Shimano SLX

Rear Derailleur

Shimano XT, 11-speed

Rear Cogs

Sunrace, 11-40, 11-speed

Number of Gears

22

Brake Type

Hydraulic Disc Brake

Brakes

Shimano Deore hydraulic disc, 29": 180/160mm; 27.5": 160/160mm

Brake Levers

Shimano Deore

Rims

Cannondale DC 3.0, double-wall, 32-hole

Front Hub

Formula DC51

Rear Hub

Formula DC-22

Wheel Size

27.5 inches

Tires

27.5 x 2.0

Tire Width

2.0 inches

Handlebar Shape

Riser Bar

Handlebar

Cannondale C3 riser, alloy, 740x15mm

Stem

Cannondale C3, 6061 alloy, 1-1/8", 31.8, -5 deg. 740mm

Seat Post

Cannondale C3, 6061 Alloy, 1-1/8", 31.8, -5 deg. 740mm

Saddle

Cannondale Stage 3

Pedals

Sold separately

Headset

Cannondale C3 riser, Alloy, 740x15mm

Chain

KMC X11, 11-speed

Weight

27 lbs. 5.4 oz.

Bike Weight

Bike weight is based on median size, as sold, or the average of two median sizes.

Gender

Unisex

Size Chart

Cannondale Bikes (109126)
SMLXL
Height Range5’3”- 5’6” 5’6” -5’9” 5’9” - 6’0” 6’0" -6’3”
Reach40.243.244.344.6
Stack626061.161.6
Effective Top Tube58.661.56364
Seat Tube Center-Top4343.547.552.5
Standover Height77.477.480.183.9
Head Tube Length9.511.512.713.2
Head Tube Angle (degrees)67.5707070
Seat Tube Angle (degrees)73.5737372.5
Bottom Bracket Height30.531.431.431.4
Wheelbase113111.5113.1113.5
Chainstay44.543.543.543.5
Fork Offset5.14.54.54.5

Sizing Notes

Measurements are stated in centimeters.

How we measure bikes

  1. Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
  2. Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
  3. Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
  4. Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
  5. Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
  6. Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
  7. Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
  8. Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
  9. Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
  10. Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
  11. Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
  12. Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
