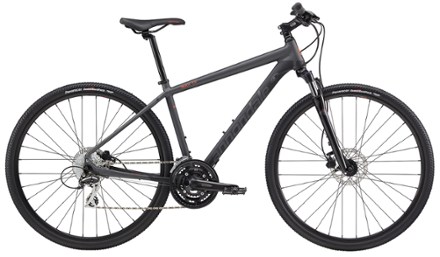

Cannondale Quick CX 4 Bike
This product is not available. Good news: we have a newer version.
For the urban commuter who rides for enjoyment, the Cannondale Quick CX 4 bike combines comfortable geometry with a versatile drivetrain and responsive disc brakes for a quick yet controlled ride.
Shop newer versionKey Details
- 6061-aluminum frame with SmartForm C2 construction is lightweight yet durable; front suspension fork with lockout smooths the ride
- Smooth shifting Shimano Acera/Altus 3x8-speed gearing offers plenty of options for climbing any incline
- Tektro M285 160mm hydraulic disc brakes deliver excellent stopping power using only 2 fingers
- Flat handlebar and upright riding position allow good visibility
- Geometry offers an easier reach to the bars and features consistent jumps in stack and reach across all sizes for easy fitting
- NOTE: Specs and images are subject to change based on component availability
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Urban Cycling |
|---|---|
| Frame | SmartForm C2 alloy |
| Bike Suspension | Front Suspension |
| Fork | SR Suntour NEX with lockout, 50mm travel |
| Fork Travel | 50 millimeters |
| Crankset | Suntour XCE, 48/38/28 |
| Bottom Bracket | Tange Cartridge |
| Shifters | Shimano SL-M310 |
| Front Derailleur | Shimano Altus, 31.8 clamp |
| Rear Derailleur | Shimano Altus |
| Rear Cogs | Sunrace CSM558, 11-32, 8-speed |
| Number of Gears | 24 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Tektro M285 hydraulic disc, 160/160mm |
| Brake Levers | Tektro M285 |
| Rims | Maddux DC 3.0, double wall w/eyelet, 32-hole |
| Front Hub | Alloy Disc, sealed, loose ball bearings, QR, 32h |
| Rear Hub | Alloy Disc, sealed, loose ball bearings, QR, 32h |
| Wheel Size | 700c |
| Tires | Panaracer Comet Hardpack 700x38C |
| Tire Width | 38 millimeters |
| Handlebar Shape | Flat Bar |
| Handlebar | Cannondale C3, 6061 double-butted, 12mm rise, 680mm |
| Stem | Cannondale C3, 6061 alloy, 31.8, 12 deg |
| Seat Post | Cannondale C3, 6061 Alloy, 27.2x350mm |
| Saddle | Cannondale Quick CX Ergo |
| Pedals | Cannondale reinforced composite |
| Headset | VP Si 1 1/2"- 1 1/8" |
| Chain | KMC Z51, 8-speed |
| Weight | 28 lbs. 10 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
| S | M | L | XL | |
|---|---|---|---|---|
| Height Range | 5’3”- 5’6” | 5’6” - 5’9” | 5’9”- 6’0” | 6’0 - 6’3” |
| Reach | 38.9 | 38.8 | 40.7 | 41.5 |
| Stack | 58.4 | 59.9 | 61.6 | 63.2 |
| Effective Top Tube | 56.7 | 58.1 | 59.5 | 60.8 |
| Seat Tube Center-Top | 40 | 45 | 50 | 55 |
| Standover Height | 71.9 | 75.7 | 79.5 | 83.3 |
| Head Tube Length | 10.7 | 12.3 | 14.1 | 15.8 |
| Head Tube Angle (degrees) | 69.5 | 69.5 | 69.5 | 69.5 |
| Seat Tube Angle (degrees) | 73 | 73 | 73 | 73 |
| Bottom Bracket Height | 29.3 | 29.3 | 29.3 | 29.3 |
| Wheelbase | 107.8 | 109.3 | 110.9 | 112.3 |
| Chainstay | 45 | 45 | 45 | 45 |
| Fork Offset | 4.5 | 4.5 | 4.5 | 4.5 |
Sizing Notes
Measurements are stated in centimeters.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
