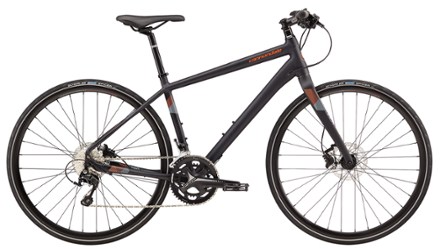

Cannondale Quick Disc 1 Bike
This product is not available.
The lightweight Cannondale Quick Disc 1 bike is comfortable to ride and supremely stable with confident handling, the perfect commuter for getting around town while having fun.
Shop similar productsKey Details

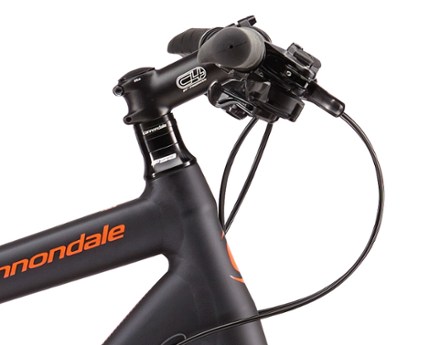

- 6061 aluminum frame is lightweight yet durable with tapered head tubes and internal cable routing; fork uses carbon blades to save weight and reduce road vibration
- Outfront steering geometry features a slack head angle, increased (55mm) rake and long front center for stability at speed
- Redesigned Save micro-suspension features dramatically shaped and flattened seat stays and chainstays to absorb shock for better control and comfort
- Shimano hydraulic disc brakes provide powerful deceleration in any conditions
- Sporty 2x11-speed gearing features Shimano 105 shifters and derailleurs to move easily through the 22 gears
- Schwalbe Spicer 700x30 tires provide minimal rolling resistance for easy speed
- Reflective accents and tire sidewalls
- Forged integrated kickstand mount (kickstand not included)
- NOTE: Specs and images are subject to change based on component availability
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Urban Cycling |
|---|---|
| Frame | 6061 alloy |
| Bike Suspension | No Suspension |
| Fork | Carbon |
| Crankset | FSA Omega Compact, 50/34 |
| Bottom Bracket | FSA MegaExo |
| Shifters | Shimano RS700 flat bar |
| Front Derailleur | Shimano 105, 31.8 clamp |
| Rear Derailleur | Shimano 105, 11-speed |
| Rear Cogs | Shimano 105 11-32, 11-speed |
| Number of Gears | 22 |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Shimano BR-M396 hydraulic disc, 160/160mm |
| Brake Levers | Shimano BR-M396 hydraulic disc |
| Rims | Maddux DC3.0 disc, double wall, 32-hole |
| Front Hub | Alloy disc, sealed, loose ball bearings, QR, 32h |
| Rear Hub | Alloy disc, sealed, loose ball bearings, QR, 32h |
| Wheel Size | 700c |
| Tires | Schwalbe Spicer, 700x30c, puncture protection, reflective sidewall |
| Tire Width | 30 millimeters |
| Handlebar Shape | Flat Bar |
| Handlebar | Cannondale C3, 6061 alloy, 640mm, 6 deg sweep |
| Stem | Cannondale C3, 6061 alloy, 31.8, 6 deg |
| Seat Post | Cannondale C3, 6061 alloy, 27.2x350mm |
| Saddle | Cannondale Fitness Ergo Double Density |
| Pedals | Cannondale Fitness Reinforced Composite |
| Headset | FSA Si, sealed bearing 1-0.25 in. - 1-0.125 in. |
| Chain | FSA 11-speed |
| Weight | 22 lbs. 14.7 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
| S | M | L | XL | |
|---|---|---|---|---|
| Reach | 38.8 | 39.6 | 40.4 | 41.2 |
| Stack | 55.4 | 57.8 | 60.2 | 62.6 |
| Effective Top Tube | 55.7 | 57.3 | 58.8 | 60.3 |
| Seat Tube Center-Top | 40 | 45 | 50 | 55 |
| Standover Height | 69 | 73.1 | 77.2 | 81.2 |
| Head Tube Length | 13.4 | 16 | 18.5 | 21.1 |
| Head Tube Angle (degrees) | 70 | 70 | 70 | 70 |
| Seat Tube Angle (degrees) | 73 | 73 | 73 | 73 |
| Bottom Bracket Height | 27.7 | 27.7 | 27.7 | 27.7 |
| Wheelbase | 105.3 | 107.0 | 108.6 | 110.3 |
| Chainstay | 43.5 | 43.5 | 43.5 | 43.5 |
| Fork Offset | 5.5 | 5.5 | 5.5 | 5.5 |
Sizing Notes
Measurements are stated in centimeters
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
