Kuat Pivot XD Swing-Away Rack Adapter - Passenger-Side Swing
The Kuat Pivot XD adapter is a heavy-duty upgrade to the popular Pivot v2. It features a robust 350 lb. load capacity. And it offers 90° and 120° passenger-side swing capabilities for tailgate access.



- 350 lb. maximum weight capacity—a 40% increase over the Pivot v2 250 lb. rating

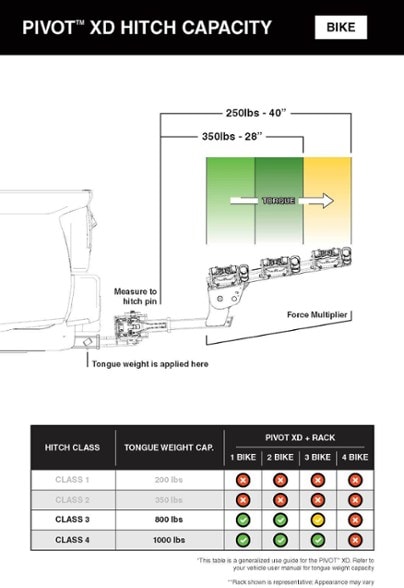

- Made for confidently carrying multiple bikes, larger cargo boxes or heavier equipment; rated 350 lbs. up to 28 in. from the hitch pin; 250 lbs. from 28 to 40 in.
- Dual 90° and 120° passenger-side swing-away positions provide quick rear-vehicle and tailgate access without removing your gear
- Forged latch design delivers superior rigidity over cast or fabricated alternatives, holding a secure closed position under maximum load and road vibration
- Patented Flatlock™ Hitch Cam creates a tight, rattle-free connection to the receiver, applying consistent pressure to eliminate play
- Included locking hitch pin adds a layer of security to the hitch assembly while allowing smooth, easy operation
- Conical ball-bearing pivot delivers a smooth open-and-close swing every time
- Bike-rack compatible; converts most 2 in. hitch platform and tray bike racks into a swing-away setup
- Vertical hanging racks approved up to 4 bikes/150 lbs. (bike-rack weight not included)
- Machined safety pin locks the swing arm securely in place for rock-solid stability while driving
- Steel construction with a Sandy Black powder coat finish
- Accessory-ready—built to accept the Pivot XD Accessory Molle Hoop and Spare Tire Adapter (not included)
- Requires a minimum Class III hitch; not rated for RVs, trailers, motorhomes or towing
- Built with steel construction and backed by the Kuat No Worries Limited Warranty
Imported.
View all Kuat Hitch Rack Accessories| Best Use | Travel |
|---|---|
| Weight | 68 pounds |
| Hitch Receiver (in.) | Fits 2 inches |
Write a Review
Adding a review will require a valid email for verification
The perfect complement.
Very heavy-duty and robust, with high quality workmanship. It provides a sense of comfort knowing my eMTBs are stable and secure with this rack addition. Having added this to my Kuat Piston Ion rack, it now makes for simple, easy access the back of my truck by allowing me to swing the rack either 90 to 120 degrees.
