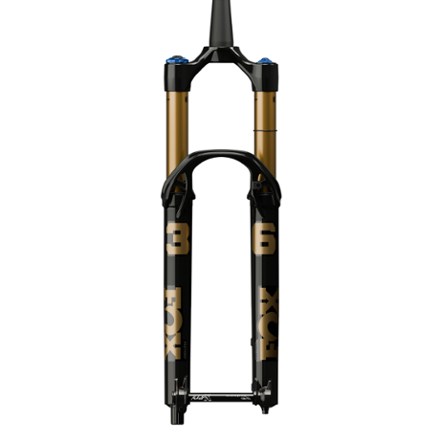

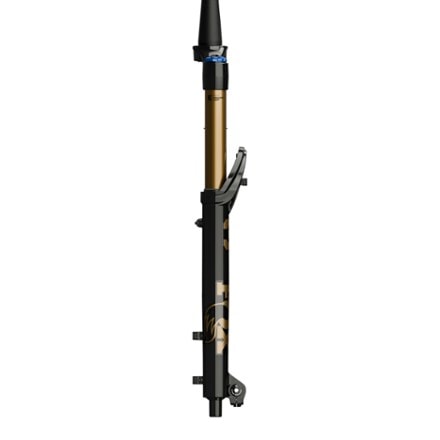

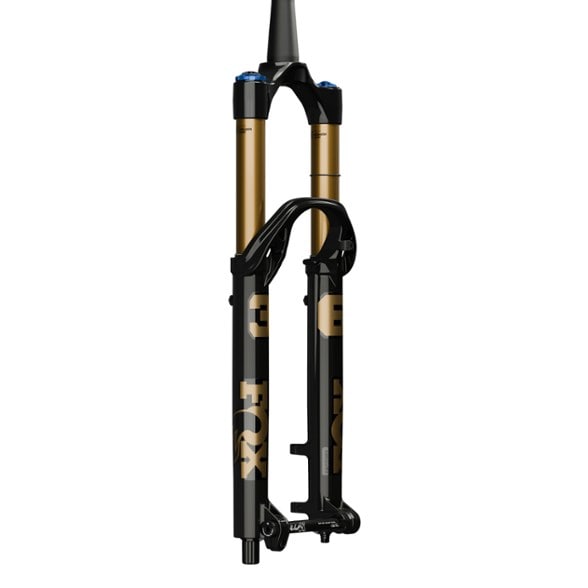

Fox Racing Shox 36 Float Factory Suspension Fork
$1,199.00
Members get an est. $119.90 in rewards
With an updated chassis for 2025, the Fox Racing Shox 36 Float Factory Suspension Fork offers improved sensitivity, control and confidence, riding like a bigger fork without increasing overall weight.
This item pays for membership!
$119
10% Reward
on this and every eligible full-price item*
+
$30
Bonus Card
valid for 30 days after joining*
=
$149
Value
Start earning when you buy a $30 lifetime membership.
Keep shopping
- Features the trail-optimized GRIP X damper
- Generatively designed arch increases torsional stiffness to approach that of the 38
- Inboard lower leg bypass channels for reduced dynamic friction
- 20 mm increased bushing overlap for reduced friction and greater stiffness
- Floating Kabolt X axle shaves grams while increasing torsional stiffness
Imported.
View all Fox Racing Shox Bike Suspension Forks| Best Use | Mountain Biking |
|---|---|
| Fork Spring Type | Air Spring |
| Fork Brake Type | Disc Brake |
| Fork Brake Mount | Post Mount |
| Max Rotor Diameter | 230 millimeters |
| Crown Race Diameter | 58 millimeters |
| Stanchion Diameter | 36 millimeters |
| Steerer Tube Diameter | 1.5 in. Tapered |
| Steerer Tube Length | 29/160 MM/15 X 110 MM/44 MM: 243 millimeters |
| Axle to Crown Length | 29/160 MM/15 X 110 MM/44 MM: 576 millimeters |
| Max Tire Width | 29/160 MM/15 X 110 MM/44 MM: 2.6 inches |
| Wheel Size | 29/160 MM/15 X 110 MM/44 MM: 29 inches |
| Fork Travel | 29/160 MM/15 X 110 MM/44 MM: 160 millimeters |
| Fork Offset | 44 millimeters |
| Front Axle | 15 x 110 mm Thru-Axle (Boost) |
| Weight | 29/160 MM/15 X 110 MM/44 MM: 1,920 grams |
