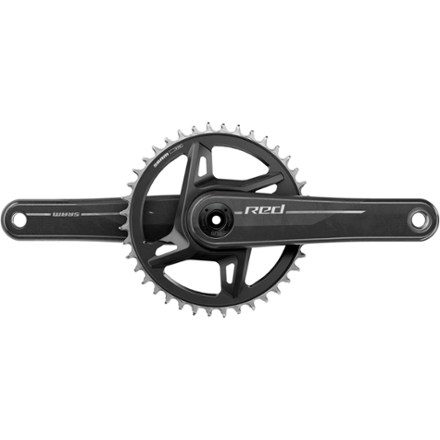

SRAMÂ RED 1x XPLR Wide Crankset
Built for those who prefer unpaved roads, this light and stiff SRAM RED 1x XPLR Wide crankset maximizes tire clearance and features hollow carbon arms paired with a direct mount 1x chainring.
This item pays for membership!
$65
10% Reward
on this and every eligible full-price item*
+
$30
Bonus Card
valid for 30 days after joining*
=
$95
Value
Keep shopping
- Single-ring drivetrain simplifies functionality and reduces weight
- SRAM X-SYNC wide-tooth, narrow-tooth chainring technology provides maximum chain control

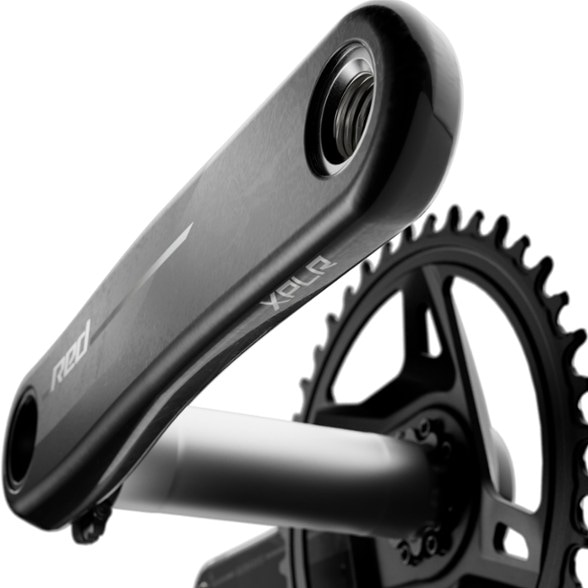

- Ultralight hollow carbon-fiber crankarms
- Uses the DUB wide, bottom-bracket platform for added durability and simplicity (bottom bracket no included)
- Nonaero, direct-mount chainrings from 38T to 46T can be swapped with a single tool (additional chainrings not included)
- Can be upgraded to a power meter (not included)
Imported.
View all SRAM Bike Cranksets| Best Use | Gravel Cycling |
|---|---|
| Material(s) | Carbon/aluminum |
| Weight | Unavailable |
| Crankarm Length | 167.5 MM 40 T: 167.5 millimeters 170 MM 40 T: 170 millimeters 170 MM 42 T: 170 millimeters 172.5 MM 40 T: 172.5 millimeters 172.5 MM 42 T: 172.5 millimeters 175 MM 40 T: 175 millimeters 175 MM 42 T: 175 millimeters |
| Q Factor | 150 millimeters |
| Bottom Bracket Compatibility | SRAM Road WIDE DUB |
| Bolt Circle Diameter | Not Applicable |
| Chainring Sizes | 167.5 MM 40 T: 40T 170 MM 40 T: 40T 170 MM 42 T: 42T 172.5 MM 40 T: 40T 172.5 MM 42 T: 42T 175 MM 40 T: 40T 175 MM 42 T: 42T |
| Included Components | Chainring |
| Speeds | 13-speed |
| Chainline | 47.5 millimeters |
| Chainring Mount | Direct Mount |
| Number of Chainrings | 1 Chainring |
| Spindle Diameter | 29 millimeters |
| Crankarm Material | Carbon |
