How to Choose Mountain Bikes

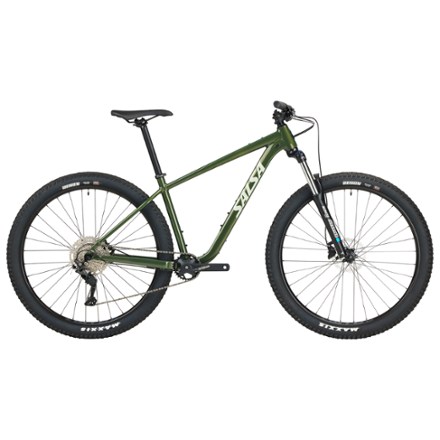

Salsa Rangefinder Deore 10 29er Mountain Bike
$1,099.00
Start discovering your local trail systems with the Salsa Rangefinder Deore 10 29er. This confidence-building hardtail opens up single- and doubletrack adventure and offers provisions for bikepacking.
Key Details
Wheel Size
29 inches
Fork Travel
120 millimeters
Number of Gears
10 gear(s)
- Rangefinder geometry and spec are designed for the perfect introduction to mountain biking
- 6061-T6 alloy frame; 120 mm suspension fork
- Internal routing for brakes, shifter and dropper post (dropper not included)
- 1x drivetrain keeps shifting simple with plenty of gear range
- Hydraulic brakes offer confident stopping power
- Spec'd with 29 in. wheels and tires; also compatible with 27.5+ wheels and tires
- Carry what you need with the integrated top tube bag mount, in-frame bottle cage mount (2 on M, L, and XL sizes), 1 accessory mount under the down tube, and rear rack mounts
- Pedals not included
- NOTE: Specs and images are subject to change based on component availability
Imported.
This bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
View the Salsa Rangefinder Product LineView all Salsa Hardtail Mountain Bikes- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Mountain Biking |
|---|---|
| Frame | Rangefinder aluminum |
| Mountain Bike Style | Trail |
| Bike Suspension | Front Suspension |
| Fork | SR Suntour XCM32 Coil Boost NLO DS, 120 mm travel |
| Fork Travel | 120 millimeters |
| Crankset | FSA Alpha Drive, 30T |
| Bottom Bracket | FSA 124.5 mm bottom bracket |
| Shifters | Shimano Deore M4100 |
| Rear Derailleur | Shimano Deore M5120 SGS |
| Rear Cogs | Shimano Deore M4100 11-46T, 10-speed |
| Number of Gears | 10 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Shimano MT200 |
| Brake Levers | Shimano MT200 |
| Rims | WTB ST i30 32h 29 in. rim |
| Front Hub | Shimano MT400 Center Lock 15 x 110 mm TA hub |
| Rear Hub | Shimano MT200 Center Lock 10 x 141 mm QR hub |
| Wheel Size | 29 inches |
| Tires | Maxxis Rekon 29 x 2.6 in., EXO, Wire Bead |
| Tire Width | 2.6 inches |
| Handlebar Shape | Flat Bar |
| Handlebar | XS-SM: Salsa Salt Flat 31.8 mm, 750 mm wide; M-XL: Salsa Rustler 31.8 mm, 800 mm wide |
| Stem | Salsa Guide 31.8 mm, 60 mm length, 6 deg. |
| Seat Post | Salsa Guide 30.9 mm, 0 deg. offset |
| Saddle | WTB Volt Medium, Steel, 142 x 265 mm |
| Pedals | Not included |
| Headset | FSA Orbit NO.57B 1.5 ZS |
| Chain | Shimano HG54 |
| Weight | Unavailable |
| Gender | Unisex |
Salsa Bikes (244562)
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Height Range | 5'1'' - 5'6'' | 5'2'' - 5'8'' | 5'8'' - 6'' | 5'10'' - 6'3'' | 6'2'' - UP |
| Reach | 400.6 | 421.5 | 444.4 | 470.4 | 494.3 |
| Stack | 601.9 | 606.4 | 611 | 620.1 | 629.3 |
| Effective Top Tube | 566.7 | 589 | 613.3 | 641.9 | 668.5 |
| Seat Tube Center-Top | 355 | 381 | 431 | 470 | 508 |
| Standover Height | 688.6 | 708.3 | 747.2 | 779.1 | 808.7 |
| Head Tube Length | 95 | 100 | 105 | 115 | 125 |
| Head Tube Angle (degrees) | 68.6 | 68.6 | 68.6 | 68.5 | 68.5 |
| Seat Tube Angle (degrees) | 74.6 | 74.6 | 74.6 | 74.5 | 74.5 |
| Wheelbase | 1101.9 | 1124.7 | 1149.6 | 1179.4 | 1207.1 |
| Chainstay | 439 | 439 | 439 | 439 | 439 |
| Fork Offset | 51 | 51 | 51 | 51 | 51 |
Sizing Notes
Measurements are stated in millimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
