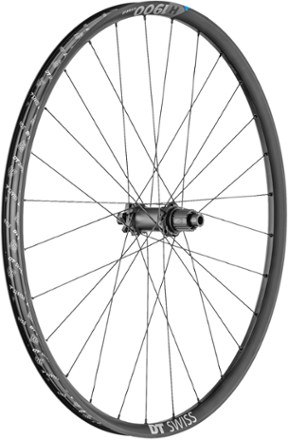

DT Swiss H 1900 SPLINE Wheel
When motor assistance and leg power meet, the range of terrain a bike can access grows almost exponentially. The DT Swiss H 1900 SPLINE wheel is designed to handle the demands of extended e-MTB rides.
- 370 hub enables full power transmission to the ground with reinforced hybrid spokes laced to a resistant aluminum rim
- Aluminum hooked rim is tubeless ready and features a 30 mm inner width
- DT Hybrid 1 spokes are reinforced and increase the lateral and torsional stiffness of the wheel
- Rear wheel equipped with the Ratchet LN system for force distribution over a larger area
- Ratchet LN system distributes the combined forces from rider and motor over a larger area than the prior pawl freehub system, increasing durability thanks to lower load peaks
- The cassette interface of the freehub is optimized with a specific hardened steel for the higher loads that occur on eMTBs
Imported.
View all DT Swiss Mountain Bike Wheels| Best Use | Mountain Biking |
|---|---|
| Wheel Type | Front 27.5 Boost: Front Wheel Rear 29 Boost Micro Spline: Rear Wheel Front 29 Boost: Front Wheel Rear 29 Boost Shimano: Rear Wheel Rear 29 Boost XD: Rear Wheel |
| Freehub Standard | Front 27.5 Boost: Not Applicable Rear 29 Boost Micro Spline: Shimano Micro Spline Front 29 Boost: Not Applicable Rear 29 Boost Shimano: Shimano Hyperglide (HG) Rear 29 Boost XD: SRAM XD |
| Tire Type | Tubeless Ready |
| Hub Brake Design | 6-bolt Disc |
| Front Axle | Front 27.5 Boost: 15 x 110 mm Thru-Axle (Boost) Rear 29 Boost Micro Spline: Not Applicable Front 29 Boost: 20 x 110 mm Thru-Axle Rear 29 Boost Shimano: Not Applicable Rear 29 Boost XD: Not Applicable |
| Front Spoke Count | Front 27.5 Boost: 28 Rear 29 Boost Micro Spline: Not Applicable Front 29 Boost: 28 Rear 29 Boost Shimano: Not Applicable Rear 29 Boost XD: Not Applicable |
| Rear Axle | Front 27.5 Boost: Not Applicable Rear 29 Boost Micro Spline: 12 x 148 mm Thru-Axle (Boost) Front 29 Boost: Not Applicable Rear 29 Boost Shimano: 12 x 148 mm Thru-Axle (Boost) Rear 29 Boost XD: 12 x 148 mm Thru-Axle (Boost) |
| Rear Spoke Count | Front 27.5 Boost: Not Applicable Rear 29 Boost Micro Spline: 28 Front 29 Boost: Not Applicable Rear 29 Boost Shimano: 28 Rear 29 Boost XD: 28 |
| Wheel Size | Front 27.5 Boost: 27.5 inches Rear 29 Boost Micro Spline: 29 inches Front 29 Boost: 29 inches Rear 29 Boost Shimano: 29 inches Rear 29 Boost XD: 29 inches |
| Internal Rim Width | 30 millimeters |
| Tubeless Compatible | Yes |
| Rim Material | Aluminum |
| Weight | Front 27.5 Boost: 973 grams Rear 29 Boost Micro Spline: 1174 grams Front 29 Boost: 1026 grams Rear 29 Boost Shimano: 1192 grams Rear 29 Boost XD: 1161 grams |
| Kit Includes | Wheel, tubeless tape, tubeless valve |
