SRAM  XX SL T-Type Eagle Transmission Power Meter AXS Groupset - 170 mm Crankset

This product is not available.

A fully synchronized system, the SRAM XX SL T-Type Eagle Transmission AXS groupset with an integrated power meter and 170 mm crankset is lightweight yet robust for cross-country performance.

Shop similar products
Location Image of color Black
Location Image of color Black

Features

  • Eagle Transmission is a fully integrated and interdependent wireless transmission built around the universal constant of the wheel axle
  • It lets you shift flawlessly under maximum power while simplifying, strengthening and extending the transmission's lifespan without a derailleur hanger or adjustment screws

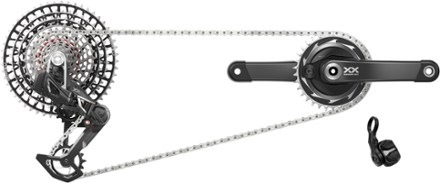

  • Includes a 170 mm XX SL Eagle AXS Transmission Power Meter crankset with 34T chainring, XX SL Eagle Transmission cassette, rear derailleur and chain, and AXS POD controller
  • XX SL Eagle AXS Transmission Power Meter crankset integrates an XX crankarm with a power meter to record and deliver live, accurate power readings to your head unit
  • Crankset has a 34T chainring, 174 mm Q-factor and 55 mm chainline; uses a replaceable CR2032 battery
  • Designed to work with DUB bottom brackets (not included)
  • Power meter has an updated, highly accurate spider-based design with a proprietary chainring mount system that reduces weight
  • Backed with Bluetooth low-energy technology and ANT+ wireless data transfer
  • Exceptionally strong and light, the XX SL Eagle Transmission derailleur mounts around the wheel axle itself and contacts the cassette directly with a hangerless interface
  • Pared down to its lightest form, the T-Type derailleur retains its overland clutch and a Magic Wheel lower pulley that keeps spinning even if an object becomes lodged
  • Derailleur includes battery, charger and cord; installs and pairs with the standard AXS setup and pairing procedure
  • XX SL Eagle Transmission T-Type XS-1299 12-speed 10-52T cassette delivers exceptional inboard and outboard shifting performance under load
  • Cassette is ultralight thanks to its all-aluminum spider cog and features optimized gear steps on the low end; X-SYNC design helps it shift better the harder you pedal
  • Compatible with a 55 mm chainline for a more moderate chain angle, longer wear and greater precision
  • XX SL Eagle Transmission Flattop 126-link chain has a robust design and performance-maximizing flat-top shape; its outer plate cutouts push its strength-to-weight ratio higher

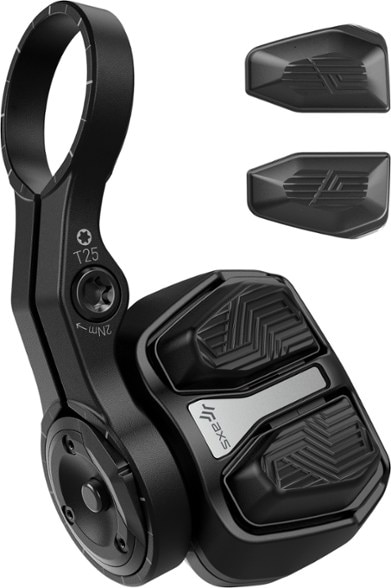

  • AXS POD Ultimate electronic controller has a click-and-fire 2-button design that transforms the crucial act of rider inputs into a more personal experience
  • Its flippable design allows the controller to be mounted on the left or right; paddle options can be customized with the AXS app

Imported.

View the SRAM Eagle Product LineView all SRAM Bike Groupsets

Technical Specs

Best Use

Mountain Biking

Speeds

12-speed

Crankarm Length

170 millimeters

Shifter Actuation

Electronic

Shifter Connectivity

Wireless

Pull System

Not Applicable

Number of Chainrings

1 Chainring

Number of Teeth

34T

Max Rear Cog Size

52T

Cage Length

Long Cage

Compatible Freehub

SRAM XD

Material(s)

Carbon; aluminum; steel

Average Battery Life

AXS battery: up to 1,000 kilometers of riding per charge; power meter: 200 hrs.

Charge Time (hrs)

AXS battery: 1 hr.

Included Components

Chainring

Weight

Total: 1,073 grams: rear derailleur: 440 grams; cassette: 345 grams; chain: 240 grams; controller: 48 grams
