SRAM XX T-Type Eagle Transmission Power Meter AXS Groupset - 170 mm Crankset
The harder you pedal, the better it shifts. The SRAM XX T-Type Eagle Transmission AXS groupset with an integrated power meter and 170 mm crankset gives enduro riders a data edge over the competition.



- Eagle Transmission is a fully integrated and interdependent wireless transmission built around the universal constant of the wheel axle
- It lets you shift flawlessly under maximum power while simplifying, strengthening and extending the transmission's lifespan without a derailleur hanger or adjustment screws

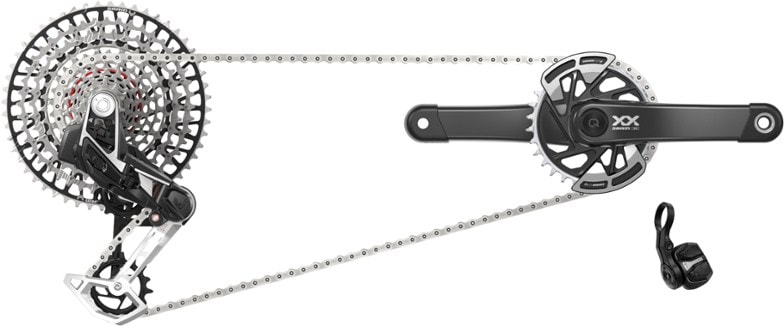

- Includes a 170 mm XX Eagle AXS Transmission Power Meter crankset with 32T chainring, XX Eagle Transmission cassette, rear derailleur and Flattop chain, and AXS POD controller
- XX Eagle AXS Transmission Power Meter crankset integrates an XX crankarm with a Quarq power meter to record and deliver live, accurate power readings to your head unit
- The carbon crank's innovative DUB-PWR design houses reliable and accurate power measurement inside the DUB crank spindle itself, allowing for lightweight power integration
- Crankset has a direct-mount 32T T-Type chainring, 174 mm Q-factor and 55 mm chainline; uses a replaceable AAA lithium battery
- Compatible with MTB Wide DUB bottom brackets (not included); compatible with SRAM removable bashguards (2 guards included) for more rugged terrain
- XX Eagle Transmission T-Type derailleur mounts around the wheel axle itself and contacts the cassette directly with a hangerless interface
- Its tucked-in profile houses replaceable skid plates that enhance dependability; the Magic Wheel lower pulley is designed to keep spinning even if an object becomes lodged
- Derailleur includes battery, charger and cord; installs and pairs with the standard AXS setup and pairing procedure
- XX Eagle Transmission T-Type XS-1297 12-speed 10-52T cassette delivers exceptional inboard and outboard shifting performance under load
- Cassette features a hardened/machined steel X-DOME design, X-SYNC technology and optimized gear steps on the low end
- Stamped-steel 38T and 44T cogs are pinned to the lighter aluminum 1st gear
- Compatible with a 55 mm chainline for a more moderate chain angle, longer wear and greater precision
- XX Eagle Transmission Flattop 126-link chain is strong and maximizes shifting performance; its hard chrome finish and hollow pins are long-wearing

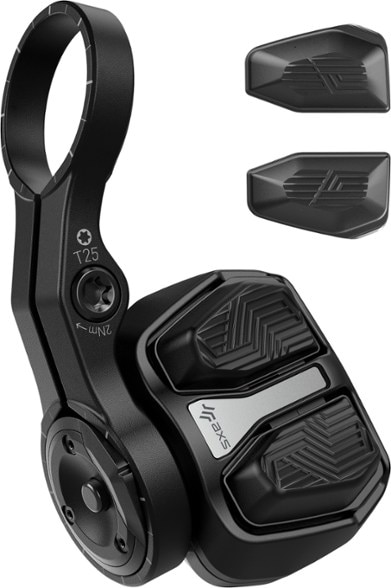

- AXS POD Ultimate electronic controller has a click-and-fire 2-button design that transforms the crucial act of rider inputs into a more personal experience
- Its flippable design allows the controller to be mounted on the left or right; paddle options can be customized with the AXS app
Imported.
View the SRAM XX Eagle Product LineView all SRAM Bike Groupsets| Best Use | Mountain Biking |
|---|---|
| Speeds | 12-speed |
| Crankarm Length | 170 millimeters |
| Shifter Actuation | Electronic |
| Shifter Connectivity | Wireless |
| Pull System | Not Applicable |
| Number of Chainrings | 1 Chainring |
| Number of Teeth | 32T |
| Max Rear Cog Size | 52T |
| Cage Length | Long Cage |
| Compatible Freehub | SRAM XD |
| Material(s) | Carbon; aluminum; steel |
| Average Battery Life | AXS battery: up to 1,000 kilometers of riding per charge; power meter: 400+ hrs. |
| Charge Time (hrs) | AXS battery: 1 hr. |
| Included Components | Chainring |
| Weight | Total: 1,140 grams; rear derailleur: 465 grams; cassette: 380 grams; chain: 247 grams; controller: 48 grams |
