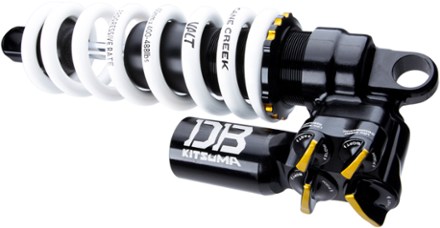

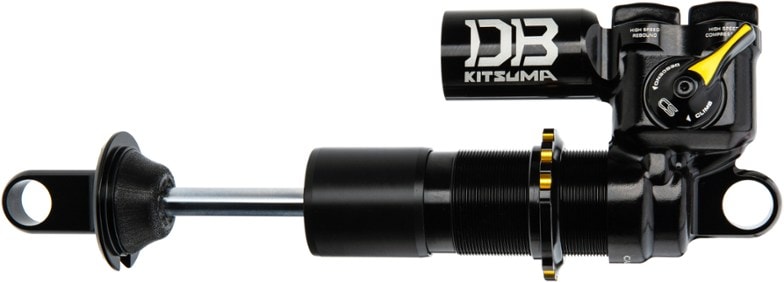

Cane Creek  DB Kitsuma Coil Rear Shock

Color: Black
please select a Size
Select size for delivery dates
Shipping restrictions may apply.

Members get an estimated $73.00 (10%) back on this item as a part of your annual .

Members get an estimated $73.00 (10%) back on this item.
To buy,  sign in as an REI Co-op Member or join now.

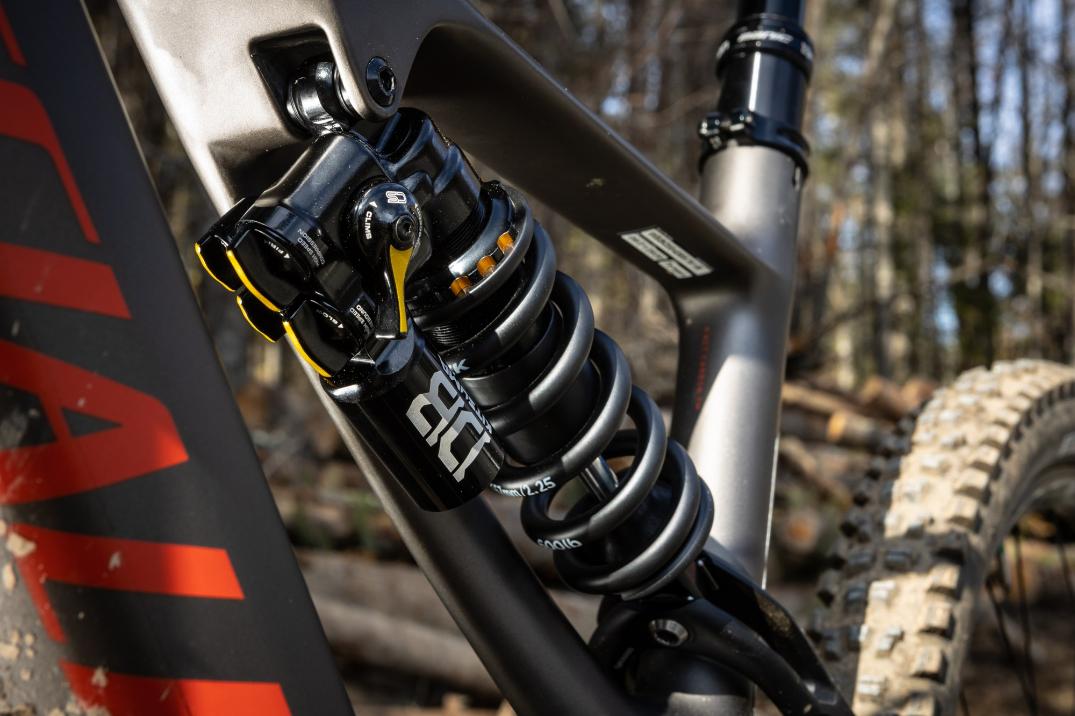

Feel planted on the trail for downhill, enduro or trail riding with the Cane Creek DB Kitsuma Coil rear shock. It's easy to tune and delivers consistent damping performance over any terrain.

10% Reward $73

$30Bonus Card

This item pays for membership!


10% Reward*

For this item



Bonus Card*

Valid for 30 days




Start earning when you buy a $30 lifetime membership.

Keep shopping

BLACK (spring not included)
BLACK (spring not included)


  • Features a wider range of damping adjustment on the compression circuit and an increased range of rebound control compared to similar shocks
  • Rebound range has also been shifted downward for more rebound damping to accommodate the larger spring rates needed for more modern bikes
  • Entire range of low-speed compression and rebound circuits are controlled within a single rotation
  • High-speed circuits are controlled within 2 rotations, allowing you to easily reference where they are within their adjustment at a glance
  • Tool-free adjusters are ergonomically designed to be easily accessible and adjustable, for trailside fine-tuning
  • Equipped with a single lever that switches the shock between 3 distinct modes which affect the shock's feel and character
  • 3-position climb switch includes "Descend" mode, "CS" mode and "Firm" mode
  • "CS" mode provides a stable yet responsive platform engineered to maximize traction and pedal efficiency while climbing on technical terrain and singletrack
  • "Firm" mode excels at pedaling over long stretches of pavement or gravel roads on your way to the trail, by utilizing a design that closes off the common bleed port
  • 4-way adjustment allows you to fine-tune high- and low-speed compression and high- and low-speed rebound
  • Double Barrel Twin Tube technology circulates oil constantly through the damping valving to achieve controllable, independent damping for both compression and rebound strokes
  • Oil moves through externally adjustable valving instead of the main piston, allowing for tunability and eliminating the need for internal valving changes for shock setup
  • Shaft diameter: 9.5 mm
  • Shock does not include a spring or hardware


View all Cane Creek Bike Rear Shocks

Technical Specs

Item #224413
Best Use

Mountain Biking

Shock Mount

Standard Mount

Shock Spring Type

Coil Spring

Shock Length

205 MM X 60 MM: 205 x 60 millimeters

205 MM X 65 MM: 205 x 65 millimeters


205 MM X 60 MM: 460 grams

205 MM X 65 MM: 460 grams


Aluminum 6061
