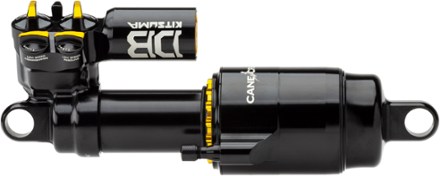

Cane Creek  DB Kitsuma Air Rear Shock

$780.00
Members, log in and use coupon code ANNIV24 at checkout to save 20% on this item thru 5/27. Exclusions apply.
Color: Black
please select a Size
Quantity
Select size for delivery dates
Shipping restrictions may apply.

Members get an estimated $78.00 (10%) back on this item as a part of your annual .

Members get an estimated $78.00 (10%) back on this item.
To buy,  sign in as an REI Co-op Member or join now.

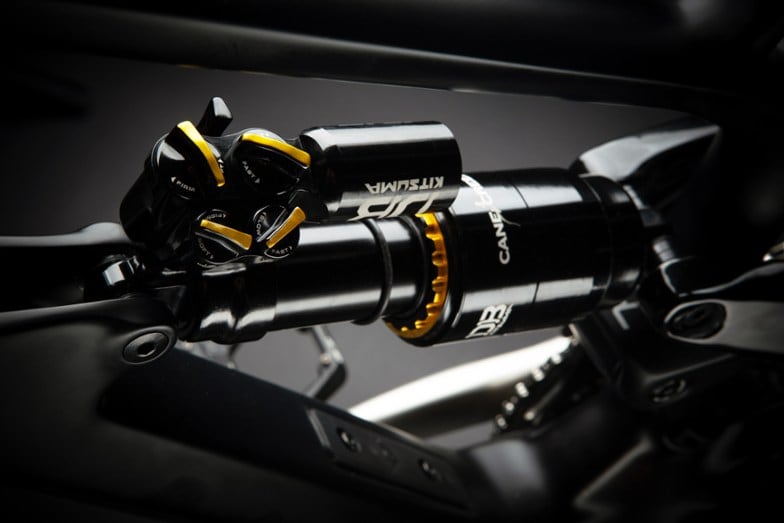

Highly adjustable with a design that is intuitive and easy to tune, the Cane Creek DB Kitsuma Air rear shock is built to perform on any terrain, making it great for downhill, enduro and trail riding.

Location Image of color Black
Location Image of color Black

Features

  • Features a wider range of damping adjustment on the compression circuit and an increased range of rebound control compared to similar shocks
  • Rebound range has also been shifted downward for more rebound damping to accommodate the larger spring rates needed for more modern bikes
  • Entire range of low-speed compression and rebound circuits are controlled within a single rotation
  • High-speed circuits are controlled within 2 rotations, allowing you to easily reference where they are within their adjustment at a glance
  • Tool-free adjusters are ergonomically designed to be easily accessible and adjustable, for trailside fine-tuning
  • Equipped with a single lever that switches the shock between 3 distinct modes which affect the shock's feel and character
  • 3-position climb switch includes "Descend" mode, "CS" mode and "Firm" mode
  • "CS" mode provide a stable yet responsive platform engineered to maximize traction and pedal efficiency while climbing on technical terrain and singletrack
  • "Firm" mode excels at pedaling over long stretches of pavement or gravel roads on your way to the trail, by utilizing a design that closes off the common bleed port
  • 4-way adjustment allows you to fine-tune high- and low-speed compression and high- and low-speed rebound
  • Double Barrel Twin Tube technology circulates oil constantly through the damping valving to achieve controllable, independent damping for both compression and rebound strokes
  • Oil moves through externally adjustable valving instead of the main piston, allowing for tunability and eliminating the need for internal valving changes for shock setup
  • Max air pressure: 300 psi
  • Shaft diameter: 9.5 mm
  • Shock does not include hardware

Imported.

View all Cane Creek Bike Rear Shocks

Technical Specs

Item #224412
Best Use

Mountain Biking

Shock Mount

Standard Mount

Shock Spring Type

Air Spring

Shock Length

210 MM X 52.5 MM: 210 x 52.5 millimeters

230 MM X 60 MM: 230 x 60 millimeters

230 MM X 65 MM: 230 x 65 millimeters

Weight

210 MM X 52.5 MM: 595 grams

230 MM X 60 MM: 634 grams

230 MM X 65 MM: 626 grams

Material(s)

Aluminum 6061
