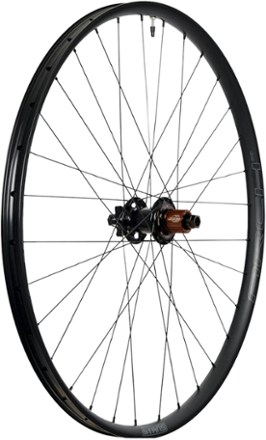

Stan's NoTubes Arch MK4 Wheel

$308.00to $657.00
Color: Black
please select a Size
$657.00
$308.00
Quantity
Select size for delivery dates
Shipping restrictions may apply.
Oversize shipping may apply.

Members get an estimated 10% back on this item as a part of your annual .

To buy,  sign in as an REI Co-op Member or join now.
Join the co-op today to get access to a lifetime of benefits.

With a lightweight, low-profile design and 28 mm internal width, the limit-pushing Arch MK4 wheel from Stan's NoTubes isn't afraid to climb and is a monster on the descent—on any kind of trail.

Location Image of color BlackLocation Image of color Black
Location Image of color Black

Features

  • With a welded seam, reinforced spoke bed and durable 6069 aluminum construction, the Arch MK4 rim gives you the confidence to ride everything
  • Light and durable 6069 aluminum rim with welded joint and reinforced spoke bed
  • Versatile 28 mm internal rim width is optimized for 2.2–2.5 in. tires
  • BST-asymmetric rim design combines easy tubeless inflation with a stronger, more balanced wheel build

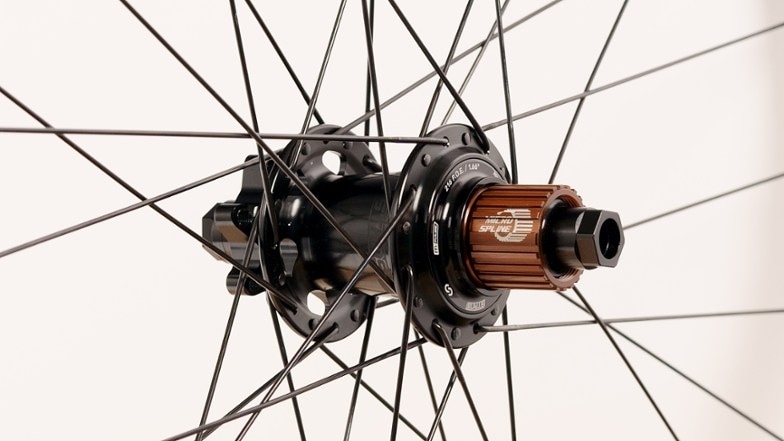

  • M-pulse, ultralow drag hubs deliver less rolling resistance
  • Enduro brand bearings, including a double-row freehub bearing tested to be more durable than 2 individual, separate bearings
  • Traditional J-bend spokes and lacing provide strength, ride quality and serviceability
  • Includes preinstalled tape for tubeless use
  • Includes Presta valve

Made in USA.

View all Stan's NoTubes Mountain Bike Wheels

Technical Specs

Best Use

Mountain Biking

Wheel Type

Rear 27.5 Boost Micro Spline: Rear Wheel

Rear 27.5 Boost Shimano: Rear Wheel

Front 27.5 Boost: Front Wheel

Rear 29 (12X142) Shimano: Rear Wheel

Rear 29 (12X142) XDR: Rear Wheel

Rear 29 Boost Micro Spline: Rear Wheel

Rear 29 Boost Shimano: Rear Wheel

Rear 29 Boost XDR: Rear Wheel

Front 29 Boost: Front Wheel

Freehub Standard

Rear 27.5 Boost Micro Spline: Shimano Micro Spline

Rear 27.5 Boost Shimano: Shimano Hyperglide (HG)

Front 27.5 Boost: Not Applicable

Rear 29 (12X142) Shimano: Shimano Hyperglide (HG)

Rear 29 (12X142) XDR: SRAM XDR

Rear 29 Boost Micro Spline: Shimano Micro Spline

Rear 29 Boost Shimano: Shimano Hyperglide (HG)

Rear 29 Boost XDR: SRAM XDR

Front 29 Boost: Not Applicable

Tire Type

Tubeless Ready

Hub Brake Design

6-bolt Disc

Front Axle

Rear 27.5 Boost Micro Spline: Not Applicable

Rear 27.5 Boost Shimano: Not Applicable

Front 27.5 Boost: 15 x 110 mm Thru-Axle (Boost)

Rear 29 (12X142) Shimano: Not Applicable

Rear 29 (12X142) XDR: Not Applicable

Rear 29 Boost Micro Spline: Not Applicable

Rear 29 Boost Shimano: Not Applicable

Rear 29 Boost XDR: Not Applicable

Front 29 Boost: 15 x 110 mm Thru-Axle (Boost)

Front Spoke Count

Rear 27.5 Boost Micro Spline: Not Applicable

Rear 27.5 Boost Shimano: Not Applicable

Front 27.5 Boost: 32

Rear 29 (12X142) Shimano: Not Applicable

Rear 29 (12X142) XDR: Not Applicable

Rear 29 Boost Micro Spline: Not Applicable

Rear 29 Boost Shimano: Not Applicable

Rear 29 Boost XDR: Not Applicable

Front 29 Boost: 32

Rear Axle

Rear 27.5 Boost Micro Spline: 12 x 148 mm Thru-Axle (Boost)

Rear 27.5 Boost Shimano: 12 x 148 mm Thru-Axle (Boost)

Front 27.5 Boost: Not Applicable

Rear 29 (12X142) Shimano: 12 x 142 mm Thru-Axle

Rear 29 (12X142) XDR: 12 x 142 mm Thru-Axle

Rear 29 Boost Micro Spline: 12 x 148 mm Thru-Axle (Boost)

Rear 29 Boost Shimano: 12 x 148 mm Thru-Axle (Boost)

Rear 29 Boost XDR: 12 x 148 mm Thru-Axle (Boost)

Front 29 Boost: Not Applicable

Rear Spoke Count

Rear 27.5 Boost Micro Spline: 32

Rear 27.5 Boost Shimano: 32

Front 27.5 Boost: Not Applicable

Rear 29 (12X142) Shimano: 32

Rear 29 (12X142) XDR: 32

Rear 29 Boost Micro Spline: 32

Rear 29 Boost Shimano: 32

Rear 29 Boost XDR: 32

Front 29 Boost: Not Applicable

Wheel Size

Rear 27.5 Boost Micro Spline: 27.5 inches

Rear 27.5 Boost Shimano: 27.5 inches

Front 27.5 Boost: 27.5 inches

Rear 29 (12X142) Shimano: 29 inches

Rear 29 (12X142) XDR: 29 inches

Rear 29 Boost Micro Spline: 29 inches

Rear 29 Boost Shimano: 29 inches

Rear 29 Boost XDR: 29 inches

Front 29 Boost: 29 inches

Internal Rim Width

28 millimeters

Tubeless Compatible

Yes

Rim Material

Aluminum

Weight

Rear 27.5 Boost Micro Spline: 925 grams

Rear 27.5 Boost Shimano: 925 grams

Front 27.5 Boost: 773 grams

Rear 29 (12X142) Shimano: 967 grams

Rear 29 (12X142) XDR: 967 grams

Rear 29 Boost Micro Spline: 967 grams

Rear 29 Boost Shimano: 967 grams

Rear 29 Boost XDR: 967 grams

Front 29 Boost: 815 grams

Kit Includes

Wheel, preinstalled tape for tubeless use; Presta valve
