How to Choose Hybrid Bikes

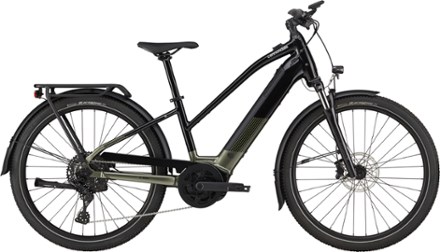

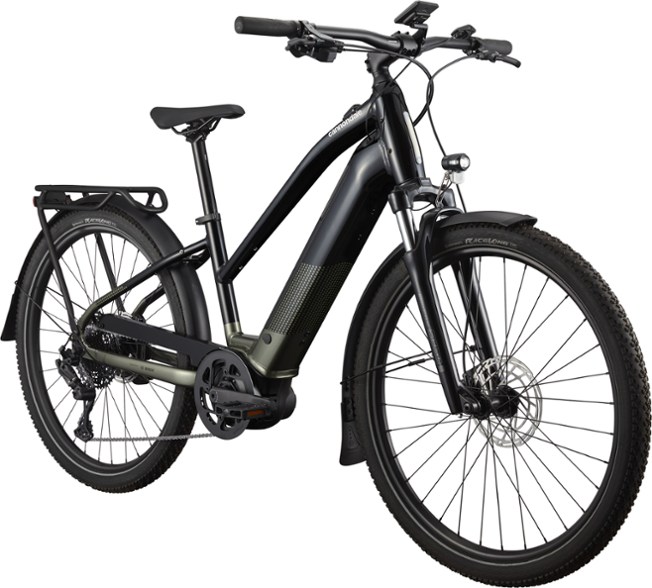

Cannondale Tesoro Neo X 2 StepThru Electric Bike
This product is not available.
With huge range, robust components and grippy mixed-surface tires, the Cannondale Tesoro Neo X 2 StepThru electric bike is built to get you to it all week, and away from it all on the weekend.
Shop similar productsKey Details
E-Bike Classification
Class 3: pedal assist up to 28 mph
Motor
Bosch Performance Line Sport (28 mph)
Battery Capacity (Wh)
625 watt hours
- StepThru SmartForm C2 alloy frame
- Bump-smoothing 63 mm travel suspension fork
- Upright sportive riding position and precise handling make riding this e-bike a blast, whether you're in city traffic or carving turns through the mountains, on-road or off
- Rattle-free fenders
- High-capacity rear rack (Racktime; 25 kg max capacity)
- microSHIFT Advent X 10-speed shifting
- Riderever Attack hydraulic disc brakes
- Bosch Performance drive unit delivers silent, natural-feeling power; with up to 75 Nm of torque, it can boost your power by up to 340% for effortless acceleration
- Smart System Performance drive unit from Bosch and 625 Wh battery provide effortless power
- Up to 85 miles of assisted range means you can go just about anywhere
- Drive system provides pedal assist up to a maximum speed of 28 mph
- Charge port on the top tube lets you charge your battery on the bike, or you can easily remove it for charging indoors
- Fully networked Bosch drive system can be controlled and customized via the Bosch eBike Flow app
- Drive system is regularly updated "over the air" for a totally connected and personalized ride experience
- To make you more visible in all light conditions, the bike has a running light integrated into the front of the frame, plus a powerful Axa headlight and a bright taillight
- The light combination lets you be seen up to 50 m from behind and up to 3,250 m from the front; at night, front light will light the road up to 55 m ahead of you
- For the best blend of speed, comfort, capability and fit, the larger sizes of Tesoro Neo X run on 29 in. (622 mm) wheels, while the smallest size uses 27.5 in. (584 mm) wheels
- Intellimount stem lets you mount your phone easily and securely on the stem with an SP-Connect adapter
- NOTE: Specs and images are subject to change based on component availability
Imported.
This e-bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
UL2849 certified
View the Cannondale Tesoro Product LineView all Cannondale Hybrid Bikes- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- An additional year of free adjustments on e-bikes
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
UL2849 certified
| Best Use | Urban Cycling |
|---|---|
| E-Bike Classification | Class 3: pedal assist up to 28 mph |
| Motor | Bosch Performance Line Sport (28 mph) |
| Motor Type | Mid-Drive |
| Motor Torque (Nm) | 85 Newton meters |
| Battery Type | Lithium Ion |
| Battery Capacity (Wh) | 625 watt hours |
| Battery Removable | Yes |
| Charge Time (hrs) | 5 hours |
| Pedal Assist Range | 85 miles |
| Frame | SmartForm C2 alloy, step-thru, removable 625 Wh downtube battery, integrated front running light, tapered headtube, internal cable routing, 135 mm QR hub spacing, IS disc mount, motor protection |
| Step-Through | Yes |
| Bike Suspension | Front Suspension |
| Fork | SR Suntour Mobie A32, 63 mm travel, coil with preload adjuster, lockout, crown light mount, 44 mm offset |
| Fork Travel | 63 millimeters |
| Crankset | FSA for Bosch |
| Shifters | microSHIFT Advent X Trail Trigger Pro, 10-speed |
| Rear Derailleur | microSHIFT Advent X, 10-speed |
| Rear Cogs | microSHIFT EH104, 11-48, 10-speed |
| Number of Gears | 10 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Riderever Attack-U-OE, 2-piston hydraulic disc, 180/180 rotors |
| Brake Levers | Riderever Attack-U-OE, hydraulic disc |
| Rims | Alloy, double wall, 32 hole, 25 mm internal width, disc-specific |
| Front Hub | Formula CL-71, 15 x 100 mm Center Lock |
| Rear Hub | Formula CL-26, 135QR Center Lock |
| Tires | Continental Race King, 27.5 x 2.20 in. 55-584 (SM), 29 x 2.20 in. 55-622 (MD-LG) |
| Tire Width | 2.2 |
| Handlebar Shape | Riser Bar |
| Handlebar | Cannondale 3 Riser, 6061 alloy, 15 mm rise, 8 deg. sweep, 4 deg. rise, 740 mm |
| Stem | Cannondale 3 with Intellimount, alloy, 31.8 mm clamp |
| Seat Post | Cannondale 3, 6061 alloy, 31.6 |
| Saddle | Fizik Essenza Moderate |
| Pedals | Cannondale Fitness |
| Headset | Semi-Integrated, Tapered; 1-1/8 to 1-1/2 in. |
| Chain | KMC E10S, EPT anti-rust, 10-speed |
| Weight | Unavailable |
| Gender | Unisex |
Cannondale Bikes (221307)
| S | M | L | |
|---|---|---|---|
| Height Range | 4'11" - 5'7" | 5'5" - 5'11" | 5'9" - 6'3" |
| Reach | 40.5 | 41.6 | 43.2 |
| Stack | 67.0 | 69.2 | 70.1 |
| Effective Top Tube | 59.2 | 61.6 | 63.5 |
| Seat Tube Center-Top | 40.0 | 43.5 | 47.0 |
| Standover Height | 71.0 | 71.1 | 71.6 |
| Head Tube Length | 20.4 | 19.4 | 20.4 |
| Head Tube Angle (degrees) | 68.5 | 68 | 68 |
| Seat Tube Angle (degrees) | 74.0 | 74.0 | 74.0 |
| Bottom Bracket Height | 29.7 | 30.4 | 30.4 |
| Wheelbase | 119.3 | 121.3 | 123.2 |
| Chainstay | 50.0 | 50.0 | 50.0 |
| Fork Offset | 4.4 | 4.4 | 4.4 |
Sizing Notes
Measurements are stated in centimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
