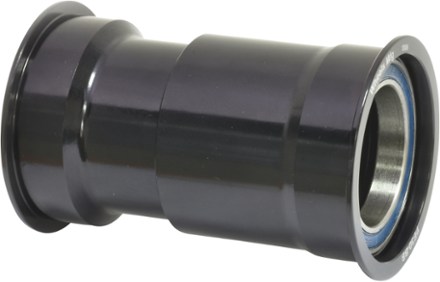

Wheels Manufacturing PF30 Press Together Bottom Bracket for 30 mm Crank Spindles
$128.00
Members get an est. $12.80 in rewards
An upgrade for PF30 bikes, the Wheels Manufacturing PF30 Press Together bottom bracket features a simple press-together design and Enduro bearings for increased durability and bearing life.
- Specifically designed for installing 30 mm spindle diameter cranks in PF30 frames without the need for any adapters
- Fits frames with 61 to 83 mm bottom bracket shell widths; 46 mm bottom bracket shell internal diameter
- Compatible with PF30, PF30A (Cannondale), 386EVO and BBRight™ Press Fit
- Specialized Carbon OSBB (OSBB frames with a 61 mm shell width may need additional cup spacers; not included)
- Will accept 24 mm and 22/24 mm cranksets using Wheels Manufacturing adapters (adapters not included)
- Machined aluminum cups with replaceable bearings offer increased durability and bearing life
- Enduro ABEC-3 sealed, grade 10 chromium-steel ball bearings provide smooth, long-lasting operation
- 52100 high-carbon chromium alloy races are extremely tough and durable for a long life
- Also includes two 0.5 mm crank spindle spacers, two 1.0 mm crank spindle spacers and two silicone dust seals
- Bottom brackets produced after July 2018 do not have grooves and O-rings on the cups
Made in USA.
View all Wheels Manufacturing Bike Bottom Brackets| Best Use | Cycling |
|---|---|
| Bottom Bracket Installation | Press Fit |
| Bottom Bracket Standard | PF30 |
| Spindle Interface | No Spindle |
| Fits Shell Width | 61-83 millimeters |
| Spindle Diameter | 30 millimeters |
| Weight | 112 grams |
| Bearing Material | Stainless Steel |
| Material(s) | Aluminum cups/Enduro ABEC-3 bearings |
