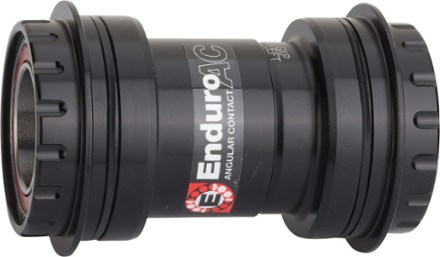

Wheels Manufacturing PF30 Outboard Thread Together Bottom Bracket with Angular Contact Bearings for 22/24 mm Crank Spindles
$157.00
Members get an est. $15.70 in rewards
Designed for SRAM/Truvativ GXP spindles, this Wheels Manufacturer PF30 Outboard Thread Together bottom bracket offers increased durability with angular bearings on the drive side, radial on the other.
This purchase pays for membership!
$15
10% Reward
on this and every eligible full-price item*
+
$30
Bonus Card
valid for 30 days after joining*
=
$45
Value
Start earning when you buy a $30 lifetime membership.
Keep shopping
- Compatible with PF30 and Specialized Carbon OSBB bottom bracket/frame interfaces and 22/24 mm diameter SRAM/Truvativ GXP crank spindles
- Specialized Carbon OSBB frames with a 61 mm shell width may need additional cup spacers (not included)
- Fits frames with 61 to 73 mm shell widths; 46 mm shell internal diameter
- Specifically designed to install compatible spindles in compatible frames without adapters
- Machined aluminum cups with replaceable bearings offer increased durability and longer bearing life
- Chromium-steel ball bearings provide smooth, long-lasting operation; Enduro Angular Contact sealed grade 5 on the drive side and ABEC-3 sealed grade 10 on the non-drive side
- 52100 high-carbon chromium alloy races are extremely tough and durable for a long life
- Includes two 0.5 mm and 1 mm crank spindle spacers; two 46 x 1 mm and one 46 x 2.5 mm cup spacers; 1 wave washer and 2 Enduro silicone dust seals
- Bottom bracket cups produced after July 2018 do not use O-rings
Made in USA.
View all Wheels Manufacturing Bike Bottom Brackets| Best Use | Cycling |
|---|---|
| Bottom Bracket Installation | Thread Together |
| Bottom Bracket Standard | PF30 |
| Spindle Interface | No Spindle |
| Fits Shell Width | 61-73 millimeters |
| Spindle Diameter | 22/24 millimeters |
| Weight | 178 grams |
| Bearing Material | Stainless Steel |
| Material(s) | Aluminum cups; drive side: Enduro Angular Contact bearings; non-drive side: Enduro ABEC-3 bearings |
