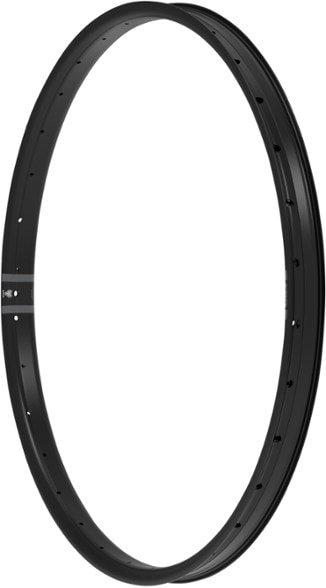

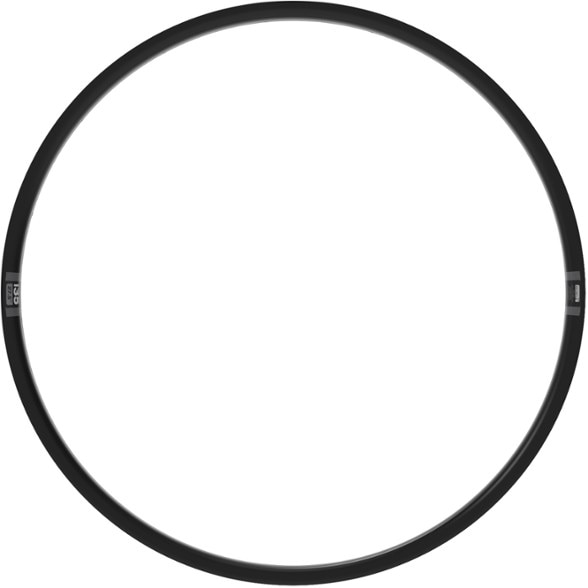

WTB  HTZ i35 Rim

Sale Ends May 27
$107.89Compared to $143.95 Save 25%
*Intermediate markdowns may have been taken.
Color: Black
please select a Size
Quantity
Select size for delivery dates
Shipping restrictions may apply.

More distance, more laps, more climbs, more descents. E-bikes add more to the trail-riding experience. The WTB HTZ i35 rim is built to be burlier to combat the additional wear and tear of that more.

Features

  • With the thickest rim walls WTB offers, proven I-Beam center support and asymmetrical spoke hole drilling, this a great choice for your e-assist trail, enduro or downhill bike
  • Optimized for your e-assist trail bike running 2.6–3.0 in. tires; 35 mm inner rim width will provide a rounded tire profile (compared to a flatter tire profile on a 40 mm rim)
  • Increased wall thickness is capable of withstanding the forces of a modern e-bike

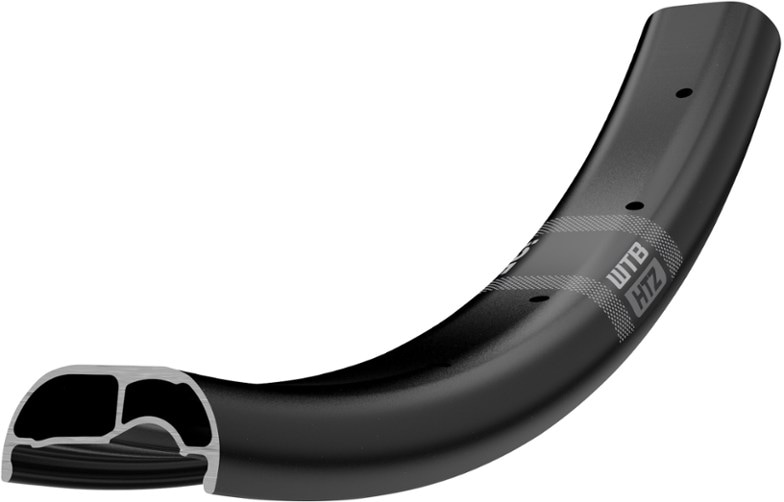

  • Vertical support within the inner rim cavity drastically increases the strength and rigidity
  • The additional reinforcement counteracts spoke loads and provides lateral rigidity, which is increasingly important for e-bike rims
  • Durable nylon TCS Solid Strip lies between the rim and tubeless tape to prevent the tape from pushing into the spoke holes, ensuring a smooth interface between tire and rim
  • The smooth surface makes it easier to mount a tire by preventing air from escaping around the bead at each indent during inflation
  • Solid Strip also protects the airtight system from puncture in the case of a broken spoke
  • 6069 aluminum alloy is excellent at absorbing massive impacts so you don't have to compensate for the additional weight of e-bikes with high tire pressures
  • Designed for use with disc brakes

Imported.

View all WTB Bike Rims

Technical Specs

Item #220286
Best Use

Mountain Biking

Tire Type

Tubeless Ready

Wheel Size

27.5 IN X 32H: 27.5 inches

29 IN X 32H: 29 inches

Spoke Hole Count

32

Internal Rim Width

35 millimeters

External Rim Width

39.8 millimeters

Effective Rim Diameter

27.5 IN X 32H: 569

29 IN X 32H: 604

Rim Depth

18.25 millimeters

Brake Compatibility

Disc Brake

Rim Material

Aluminum

Rim Bead Type

Hooked

Rim Symmetry

Asymmetric (Offset)

Valve Type

Presta

Tubeless Compatible

Yes

Designed for E-Bikes

Yes

Weight

27.5 IN X 32H: 718 grams

29 IN X 32H: 768 grams

Material(s)

Aluminum
