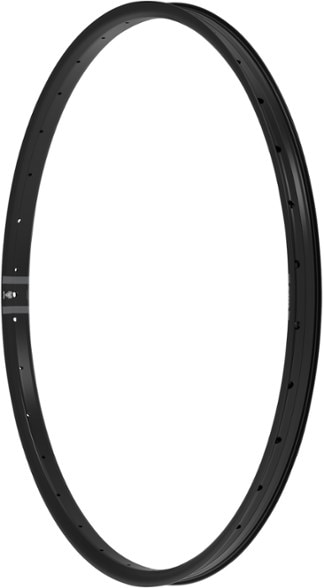

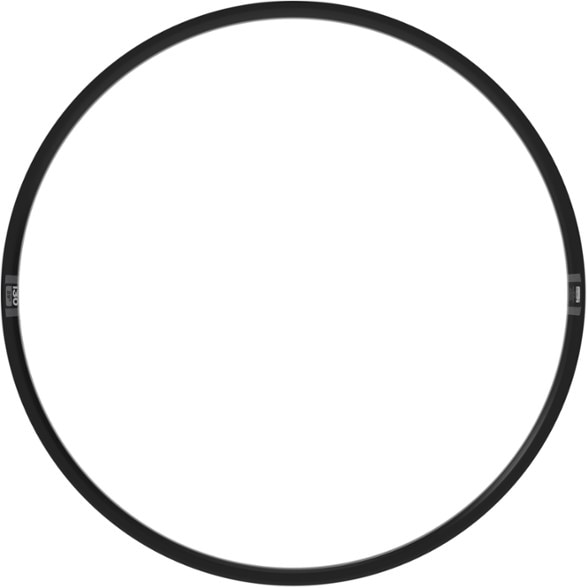

WTB HTZ i30 Rim

Color: Black
Size: 29 IN X 32H
Order by 9am PT on Dec. 19 for delivery before Dec. 25. Members get free shipping!
Shipping restrictions apply.

Members get an estimated $14.40 (10%) back on this item as a part of your annual .

Members get an estimated $14.40 (10%) back on this item.
To buy,  sign in as an REI Co-op Member or join now.

E-bikes add more to the trail-riding experience—more distance, more laps, more climbs, more descents—and the WTB HTZ i30 rim is built to be burlier to combat the additional wear and tear of that more.


  • With the thickest rim walls WTB offers, proven I-Beam center support and asymmetrical spoke hole drilling, this a great choice for your e-assist trail, enduro or downhill bike
  • Most trail and enduro tires are designed to be installed on a 30 mm rim; doing so will optimize the air volume, sidewall support and tire profile of those tires
  • Increased wall thickness is capable of withstanding the forces of a modern e-bike

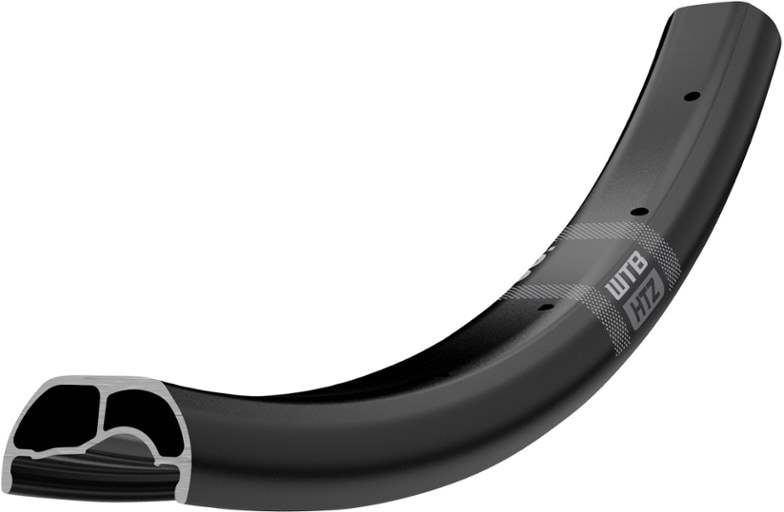

  • Vertical support within the inner rim cavity drastically increases the strength and rigidity
  • The additional reinforcement counteracts spoke loads and provides lateral rigidity, which is increasingly important for e-bike rims
  • Durable nylon TCS Solid Strip lies between the rim and tubeless tape to prevent the tape from pushing into the spoke holes, ensuring a smooth interface between tire and rim
  • The smooth surface makes it easier to mount a tire by preventing air from escaping around the bead at each indent during inflation
  • Solid Strip also protects the airtight system from puncture in the case of a broken spoke
  • 6069 aluminum alloy is excellent at absorbing massive impacts, so you don't have to compensate for the additional weight of e-bikes with high tire pressures
  • Designed for use with disc brakes


View all WTB Bike Rims

Technical Specs

Best Use

Mountain Biking

Tire Type

Tubeless Ready

Wheel Size

29 inches

Spoke Hole Count


Internal Rim Width

30 millimeters

External Rim Width

34.8 millimeters

Effective Rim Diameter

605 millimeters

Rim Depth

18.25 millimeters

Brake Compatibility

Disc Brake

Rim Material


Rim Bead Type


Rim Symmetry

Asymmetric (Offset)

Valve Type


Tubeless Compatible


Designed for E-Bikes



718 grams
