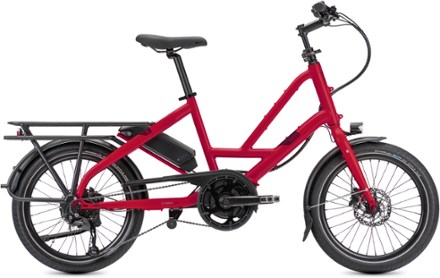

Tern Quick Haul P9 Performance Electric Bike

$2,899.00
Color: Satin Red
Size: One Size
Quantity
Heads up! Bikes usually take 1-2 additional days to assemble but can take longer during busy periods. We'll email you when yours is ready.

Members get an estimated $289.90 (10%) back on this item as a part of your annual .

Members get an estimated $289.90 (10%) back on this item.
To buy,  sign in as an REI Co-op Member or join now.

Simply capable, the Tern Quick Haul P9 Performance electric bike is an all-arounder that's equipped with a sturdy rear rack to carry your goods when running errands or riding for fun across town.

Features

  • Bosch Performance Sport motor provides up to 65 Nm of torque and 300% support, assisting your pedaling at speeds up to 28 mph
  • Includes a 1 x 9-speed Shimano Alivio groupset with trigger shifter
  • Stow up to 110 lbs. (50 kg) on the rear rack, plus an additional 44 lbs. (20 kg) with an optional front rack (not included)
  • Fits riders from 5 ft. 3 in. to 6 ft. 5 in. (160 to 195 cm)
  • When equipped with a shorter 350 mm seatpost (not included), the bike fits riders from 4 ft. 9 in. to 5 ft. 11 in. (145 to 180 cm)
  • Ultralow 19 in. (49 cm) stand-over height makes mounting, dismounting and waiting at stops easier
  • Shimano hydraulic disc brakes provide reliable stopping power—even when the bike is heavily loaded and you're riding fast
  • Tern kid- and cargo-carrying accessories (not included) are available so you can easily create your perfect setup
  • Frame and fork are EFBE-tested up to the 331 lbs. (150 kg) maximum gross vehicle weight
  • Specs and images are subject to change

Imported.

This e-bike comes with Coast to Coast Support, which includes:
  • 1 year of free adjustments (see more below)
  • In-store bike assembly
  • Pickup in store or curbside
  • Bike experts available at 170+ bike shops
REI Co-op Members get more:
  • An additional year of free adjustments on e-bikes
  • 20% off shop services
  • Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
More about our free adjustments:
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.

UL2849 certified
View all Tern Electric Cargo Bikes

Technical Specs

Best Use

Urban Cycling

E-Bike Classification

Class 3: pedal assist up to 28 mph

Motor

Bosch Performance Sport

Motor Type

Mid-Drive

Motor Torque (Nm)

65 Newton meters

Battery Type

Lithium Ion

Battery Capacity (Wh)

400 watt hours

Battery Removable

Yes

Charge Time (hrs)

4 hours

Pedal Assist Range

32-62 miles

Frame

6061-T6 aluminum, EFBE Tri-Test approved

Step-Through

Yes

Bike Suspension

No Suspension

Fork

Cargo, steel, EFBE approved: 150 kg

Fork Travel

Not Applicable

Crankset

6061-AL crankarm

Bottom Bracket

Motor integrated

Shifters

Shimano Alivio, 1 x 9-speed, trigger

Rear Derailleur

Shimano Alivio Shadow

Rear Cogs

Shimano 9-speed, 11-34T

Number of Gears

9 gear(s)

Brake Type

Hydraulic Disc Brake

Brakes

Shimano hydraulic disc

Brake Levers

Shimano hydraulic disc

Rims

Kinetix Comp for disc

Front Hub

Shimano disc

Rear Hub

Shimano disc

Wheel Size

20 inches

Tires

Schwalbe Big Apple, puncture protection, Reflex

Tire Width

2.15 inches

Handlebar Shape

Riser Bar

Handlebar

Low riser, 31.8 mm, 6061-AL

Stem

Speedlifter, 150 mm extension, 3D Forged Stem, 31.8 mm

Seat Post

31.6 mm, 6061-AL, micro-adjust clamp

Saddle

Velo Comfort

Pedals

Urban with nonslip surface

Headset

TH, cartridge bearings

Chain

KMC for eBike, 9-speed

Weight

50 lbs. 11.2 oz.

Bike Weight

Bike weight is based on median size, as sold, or the average of two median sizes.

Gender

Unisex

Sustainability

Contains recycled materials

Size Chart

One Size
Height Range5'3''-6'5''

How we measure bikes

  1. Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
  2. Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
  3. Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
  4. Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
  5. Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
  6. Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
  7. Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
  8. Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
  9. Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
  10. Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
  11. Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
  12. Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
