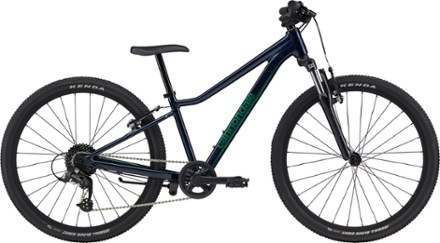

Cannondale Trail 24 Kids' Bike
With its lightweight alloy frame, 24 in. wheels and smooth suspension fork, the kids' Cannondale Trail 24 bike is built for smooth speed and adventure, on or off road.
Key Details
- Features a light, durable SmartForm C3 Alloy frame and bump-smoothing front suspension fork
- Equipped with 8-speed gearing with light-action trigger shifter
- 24 in. alloy rims come with fast-rolling knobby tires
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Mountain Biking |
|---|---|
| Frame | SmartForm C3 Alloy, rim brakes, rack/fender mounts |
| Mountain Bike Style | Trail |
| Bike Suspension | Front Suspension |
| Fork | SunTour XCT-JR 24, 50 mm travel, 1-1/8 in. steerer, coil, with cantilever mounts |
| Fork Travel | 50 millimeters |
| Crankset | Prowheel, Pro-V30, 145 mm length, 30T |
| Bottom Bracket | Cartridge, square taper |
| Shifters | 8-speed trigger shifter |
| Rear Derailleur | microSHIFT M21S |
| Rear Cogs | 12-32T, 8-speed |
| Number of Gears | 8 gear(s) |
| Brake Type | Rim |
| Brakes | Promax V-Brake |
| Brake Levers | Alloy, linear pull |
| Rims | Cannondale, lightweight alloy, 24 in., 28 h |
| Wheel Size | 24 inches |
| Tires | Kenda Small Block 8, 24 x 1.95 in. |
| Tire Width | 1.95 inches |
| Handlebar Shape | Riser Bar |
| Handlebar | Lightweight Alloy, 25.4 mm, 580 mm |
| Stem | Forged and machined aluminum, 30 mm with fitted stem cover |
| Seat Post | One-piece, clamp-less, alloy, 25.4 mm |
| Saddle | Cannondale Kid's Comfort |
| Pedals | Wellgo Composite Platform with reflectors, 1/2 in. |
| Headset | 1-1/8 inches |
| Chain | KMC Z8.1, 8-speed |
| Weight | 25 lbs. 14.7 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Kids' |
| 24 IN | |
|---|---|
| Height Range | 4'0" - 4'9" |
| Reach | 34.5 |
| Stack | 51.5 |
| Effective Top Tube | 51.2 |
| Seat Tube Center-Top | 32.5 |
| Standover Height | 58.7 |
| Head Tube Length | 9.5 |
| Head Tube Angle (degrees) | 69.5 |
| Seat Tube Angle (degrees) | 72 |
| Bottom Bracket Height | 23.6 |
| Wheelbase | 97.4 |
| Chainstay | 42.5 |
| Fork Offset | 4 |
Sizing Notes
Measurements are stated in centimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
