Co-op Cycles DRT e1.1 Electric Mountain Bike
$3,199.00
Members get an est. $319.90 in rewards
Upgrade to the Co-op Cycles DRT e1.1 electric mountain bike for boosted adventure and discover your love for riding trails as you climb and accelerate out of turns with electric ease.
Key Details
E-Bike Classification
Class 1: pedal assist up to 20 mph
Motor
Bosch Performance Line, the smart system
Battery Capacity (Wh)
500 watt hours
Weight
55 pounds
This item pays for membership!
$319
10% Reward
on this and every eligible full-price item*
+
$30
Bonus Card
valid for 30 days after joining*
=
$349
Value
Start earning when you buy a $30 lifetime membership.
Keep shopping

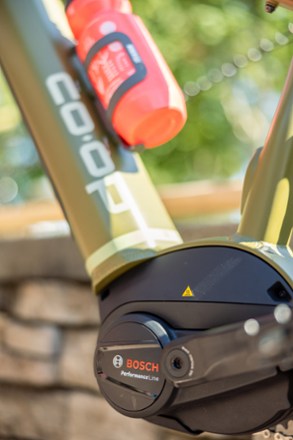

- Bosch Performance Line, the smart system, is a Class 1 mid-drive motor with assist reaching up to 20 mph; motor is paired with a PowerTube 500 battery and handlebar display

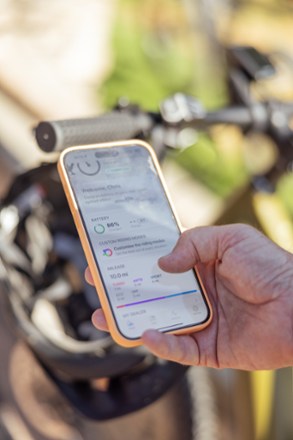

- The smart system connects your e-bike to the eBike Flow mobile app, which tracks power usage and ride data, lets you tune ride modes, and connects to popular apps like Strava
- Use the LED remote to change riding modes and use the smart Walk Assistance

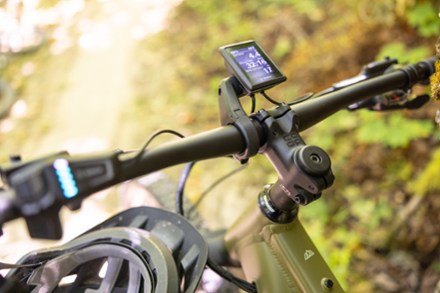

- Modes, ride data and more intuitively show up on your Bosch Kiox 300 display

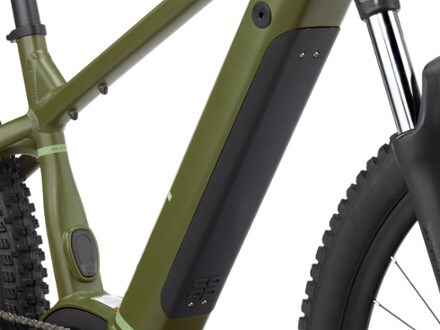

- PowerTube battery can be charged on or off the bike and is simple to remove: Unlock with the key, then push the secondary retention with an Allen key to get it all the way out
- PowerTube 500 battery (36V/13.4 Ah) charges to 50% in approximately 1.7 hrs. or 100% in approximately 4.5 hrs. with the included 4A battery charger

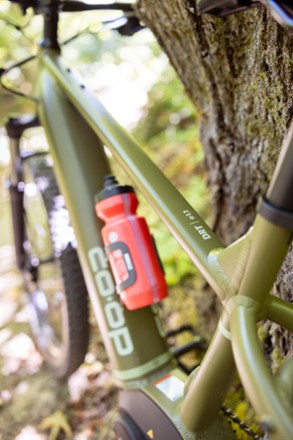

- Trail-worthy hardtail aluminum frame
- SR Suntour XCM32 fork with 32 mm stanchions delivers 100 mm of travel for a trail-ready ride
- microSHIFT ADVENT 9-speed drivetrain offers a capable and versatile range for a variety of trails
- Tubeless-ready rims and tires make it easy to go tubeless to help minimize flats and allow optimized tire pressure (requires use of tubeless sealant; not included)
- Comes with a bell
- Kickstand is stable and easy to use
- Max weight limit including rider and cargo: 300 lbs.
- Complies with UL 2849 – Intertek Testing Services NA Inc.
- NOTE: Specs and images are subject to change based on component availability
Imported.
This e-bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
UL2849 certified
View the Co-op Cycles DRT Product LineView all Co-op Cycles Hardtail Mountain Bikes- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- An additional year of free adjustments on e-bikes
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
UL2849 certified
| Best Use | Mountain Biking |
|---|---|
| E-Bike Classification | Class 1: pedal assist up to 20 mph |
| Motor | Bosch Performance Line, the smart system |
| Motor Type | Mid-Drive |
| Motor Torque (Nm) | 75 Newton meters |
| Battery Type | Lithium Ion |
| Battery Capacity (Wh) | 500 watt hours |
| Battery Removable | Yes |
| Charge Time (hrs) | 50% charge: approx. 1.7 hours; 100% charge: approx. 4.5 hours |
| Frame | Co-op Cycles 6061 aluminum |
| Bike Suspension | Front Suspension |
| Fork | SR Suntour XCM32 |
| Fork Travel | 100 millimeters |
| Crankset | FSA CK-220 36T |
| Bottom Bracket | Integrated with Bosch drive unit; BNI interface |
| Shifters | microSHIFT ADVENT SL-M6295-R, 9-speed |
| Rear Derailleur | microSHIFT ADVENT RD-M619M, 9-speed |
| Rear Cogs | microSHIFT ADVENT CS-H093 11-46T |
| Number of Gears | 9 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Shimano BR-MT200 2-piston hydraulic |
| Brake Levers | Shimano BL-MT201 3-finger hydraulic |
| Rims | Co-op Cycles aluminum double-wall; tubeless-ready |
| Front Hub | Shimano Center Lock disc; 15 x 110 mm thru axle |
| Rear Hub | Shimano Center Lock disc; 12 x 148 mm thru axle |
| Wheel Size | 27.5 inches |
| Tires | Maxxis Rekon EXO/TR dual-compound; 60 tpi; folding; tubeless-ready; 27.5 x 2.6 in. |
| Tire Width | 2.6 inches |
| Handlebar Shape | Riser Bar |
| Handlebar | Aluminum riser; 12 mm rise; 6 deg. backsweep; 31.8 mm clamp diameter |
| Stem | Aluminum; 31.8 mm clamp diameter; 60 mm length; 3 deg. rise |
| Seat Post | Aluminum 2-bolt; 15 mm offset; 30.9 mm diameter |
| Saddle | Co-op Cycles vacuum-molded with ED black steel rails |
| Pedals | Alloy platform with 9/16 in. chromoly spindle |
| Headset | Threadless internal; 1-1/8 in. to 1-1/2 in. |
| Chain | KMC E9 Turbo |
| Weight | 55 pounds |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
| Sustainability | From a Climate Label Certified brand |
Co-op Cycles Bikes (215763)
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Height Range | 5'0" - 5'3" | 5'3" - 5'6" | 5'6" - 5'9" | 5'9" - 6'0" | 6'0" - 6'3" |
| Reach | 395 | 415 | 425 | 445 | 470 |
| Stack | 609.4 | 609 | 623 | 611 | 655.7 |
| Effective Top Tube | 576 | 596 | 610 | 635 | 664 |
| Seat Tube Center-Top | 360 | 395 | 460 | 465 | 500 |
| Head Tube Angle (degrees) | 68 | 68 | 68 | 68 | 68 |
| Seat Tube Angle (degrees) | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
| Wheelbase | 1138 | 1157 | 1173 | 1201 | 1231 |
| Chainstay | 474 | 474 | 474 | 474 | 474 |
Sizing Notes
Measurements are stated in millimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
