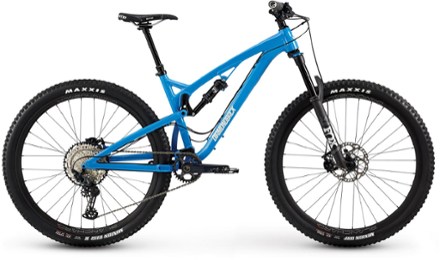

Diamondback Release 29 2 Mountain Bike
$2,039.93Compared to $3,400.00*Save 40%
Built for high-mileage days with a high shred factor, the Diamondback Release 29 2 soaks up the worst on steep, technical terrain with a 140 mm travel fork and 130 mm Level Link rear suspension.
Key Details
Wheel Size
29 inches
Fork Travel
140 millimeters
Number of Gears
12 gear(s)
- Hydroformed aluminum frame is sized perfectly for 29 in. wheels while keeping the same playful attitude of all the Diamondback Level Link bikes
- Level Link rear suspension delivers 130 mm of efficient-yet-supple rear travel controlled by a responsive and adjustable Fox Float DPS EVOL LV Performance shock
- Fox Float DPS EVOL LV Performance shock is outfitted with an EVOL LV air sleeve for excellent responsiveness and a bottomless feel
- Fox Rhythm 34 fork delivers 140 mm travel up front; features a Grip damper for more consistent feel
- 29 x 2.3 in. tires roll confidently over the rough stuff
- Shimano SLX cranks and 1 x 12-speed drivetrain for smooth shifting
- Shimano SLX hydraulic disc brakes offer high power and great control so you can stay focused, no matter what the trail dishes out
- NOTE: Specs and images are subject to change based on component availability
Imported.
This bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
View the Diamondback Release Product LineView all Diamondback Full-Suspension Mountain Bikes- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Mountain Biking |
|---|---|
| Mountain Bike Style | All-mountain |
| Frame | 6061 T-6 aluminum |
| Bike Suspension | Full Suspension |
| Fork | Fox Rhythm 34, 140 mm travel, Grip damper with sweep adjust, 1.5 in. tapered steerer, 110 x 15 mm thru axle |
| Fork Travel | 140 millimeters |
| Rear Shock | Fox Float DPS EVOL LV Performance, 3-position lever, 200 x 57 mm, 22.2 mm eyelet width |
| Crankset | Shimano SLX M7100, 32T |
| Bottom Bracket | Shimano BB-52 |
| Shifters | Shimano SLX M7100, 12-speed |
| Rear Derailleur | Shimano SLX M7100 Shadow Plus, 12-speed, SGS |
| Rear Cogs | Shimano SLX M7100 cassette, 12-speed, 10-51T |
| Number of Gears | 12 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Shimano SLX M7100 with RT70 rotors: 180 mm front/180 mm rear |
| Brake Levers | Shimano SLX |
| Rims | Diamondback Blanchard 28R, tubeless compatible, 32h |
| Front Hub | Shimano SLX M7110, 32h aluminum Boost 110 x 15 mm thru axle, Center Lock |
| Rear Hub | Shimano SLX M7110, 32h aluminum Boost 148 x 12 mm thru axle, Center Lock, Microspline |
| Wheel Size | 29 inches |
| Tires | Front: Maxxis Minion DHF 29 x 2.3 in. EXO, TLR, folding; rear: Maxxis Minion DHR II 29 x 2.3 in. EXO, TLR, folding |
| Tire Width | 2.3 inches |
| Handlebar Shape | Riser Bar |
| Handlebar | DB35 aluminum 760 mm width, 15 mm rise, 35 mm bore |
| Stem | DB35 aluminum 35 mm reach, 35 mm bore |
| Seat Post | Kindshock Rage-I internal dropper, 31.6 with Westy 1x Remote, S = 125 mm, M = 150 mm, L/XL = 170 mm |
| Saddle | WTB Koda Comp |
| Pedals | DB CNC Platform with sealed cartridge bearing and replaceable pins |
| Headset | FSA No. 57 sealed cartridge |
| Chain | Shimano SLX M7100, 12-speed |
| Dropper Post | Yes |
| Weight | Unavailable |
| Gender | Unisex |
Diamondback Bikes (210872, 200564, 200563)
| S | M | L | XL | |
|---|---|---|---|---|
| Height Range | 5'4"-5'7" | 5'7"-5'10" | 5'10"-6'2" | 6'2"-6'6" |
| Reach | 402 | 427 | 449 | 472 |
| Stack | 599 | 599 | 608 | 617 |
| Effective Top Tube | 585 | 610 | 635 | 660 |
| Seat Tube Center-Top | 394 | 432 | 483 | 533 |
| Standover Height | 775 | 784 | 791 | 804 |
| Head Tube Length | 100 | 100 | 110 | 120 |
| Head Tube Angle (degrees) | 67.7 | 67.7 | 67.7 | 67.7 |
| Seat Tube Angle (degrees) | 73 | 73 | 73 | 73 |
| Bottom Bracket Height | 348 | 348 | 348 | 348 |
| Wheelbase | 1134 | 1159 | 1185 | 1211 |
| Chainstay | 446 | 446 | 446 | 446 |
Sizing Notes
Measurements are stated in millimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
