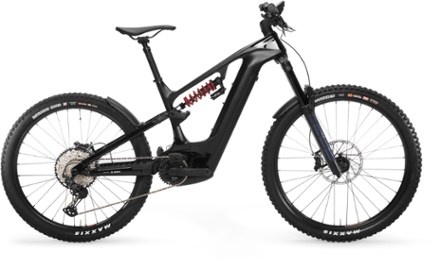

Cannondale Moterra Carbon LT 2 Electric Mountain Bike
$5,799.00
Agile and quick on the climbs, stable and composed on nasty descents, the Cannondale Moterra Carbon LT 2 electric mountain bike is the kind of machine that makes you a better rider, on any trail.
Key Details
E-Bike Classification
Class 1: pedal assist up to 20 mph
Motor
Bosch Performance Line CX 250W
Battery Capacity (Wh)
Bosch PowerTube 750 watt hours
- Sophisticated Proportional Response Tuned carbon main frame keeps mass to a minimum
- Each size frame gets its own custom suspension kinematics—different mounting points, links and leverage ratios—for truly size-specific suspension performance
- RockShox Zeb Select fork provides 170 mm of travel; rear piggyback shock provides 165 mm of travel
- Bosch SmartSystem features a 750 Wh battery and Performance Line CX motor
- With 85 Nm of available torque, the motor can boost your output by 340% in a completely natural, intuitive-feeling way
- 750 Wh battery lets you do more laps and explore the farthest peaks
- Charge the battery on the bike, or remove it easily for off-bike charging
- 12-speed drivetrain
- Magura MT5 4-piston brakes
- To protect the motor and battery from damage, Moterra features a sealed battery cover and a burly, trials-style skid plate
- NOTE: Specs and images are subject to change based on component availability
Imported.
This e-bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
UL2849 certified
View the Cannondale Moterra Product LineView all Cannondale Full-Suspension Mountain Bikes- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- An additional year of free adjustments on e-bikes
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
UL2849 certified
| Best Use | Mountain Biking |
|---|---|
| E-Bike Classification | Class 1: pedal assist up to 20 mph |
| Motor | Bosch Performance Line CX 250W |
| Motor Type | Mid-Drive |
| Motor Torque (Nm) | 85 Newton meters |
| Battery Type | Lithium Ion |
| Battery Capacity (Wh) | Bosch PowerTube 750 watt hours |
| Battery Removable | Yes |
| Frame | Moterra Neo Carbon Front Triangle, SmartForm C1 Alloy Swingarm, Proportional Response Tuned Suspension, UDH hanger, post mount brake, 1.5-1.8 in. tapered head tube, 18 mm two-bolt kickstand mount |
| Bike Suspension | Full Suspension |
| Fork | RockShox Zeb Select, Charger RC, 170 mm, DebonAir, 15 x 110 mm, 44 mm offset |
| Fork Travel | 170 millimeters |
| Rear Shock | 2-position mode adjust, adjustable rebound |
| Crankset | FSA Bosch E-bike with 55 mm chainline, 160 mm, 34T |
| Shifters | 12-speed |
| Rear Derailleur | Shimano XT |
| Rear Cogs | 10-51, 12-speed |
| Number of Gears | 12 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Magura MT5 4-piston hydraulic disc, Magura MDR-P 220/203 mm, 6-bolt rotors |
| Brake Levers | Magura MT5 Trail HC hydraulic disc |
| Rims | WTB ST i30 TCS, 32h, tubeless ready |
| Front Hub | Formula 15 x 110 mm thru axle |
| Rear Hub | Shimano MT410, 12 x 148 mm thru axle |
| Wheel Size | 29 inches |
| Tires | Front: Maxxis Assegai, 29 x 2.6 in., 3C, EXO+, tubeless ready; rear: Maxxis DHR II, 27.5 x 2.6 in., 3C, EXO+, tubeless ready |
| Tire Width | 2.6 inches |
| Handlebar Shape | Riser Bar |
| Handlebar | Cannondale 3 Riser, 6061 Alloy, 25 mm rise, 8 deg. sweep, 5 deg. rise, 800 mm |
| Stem | Cannondale 2, 6061 Alloy, 35 mm, 0 deg. |
| Seat Post | S: Cannondale DownLow Dropper, internal routing, 31.6 x 125 mm M: Cannondale DownLow Dropper, internal routing, 31.6 x 150 mm L: Cannondale DownLow Dropper, internal routing, 31.6 x 170 mm XL: Cannondale DownLow Dropper, internal routing, 31.6 x 170 mm |
| Dropper Post | Yes |
| Saddle | Fabric Scoop Shallow Sport, steel rails |
| Headset | Acros integrated sealed bearing, tapered |
| Chain | 12-speed |
| Weight | Unavailable |
| Gender | Unisex |
Cannondale Bikes (208426)
| S | M | L | XL | |
|---|---|---|---|---|
| Height Range | 5'2" - 5'5" | 5'6" - 5'9" | 5'8" - 6'0" | 6'1" - 6'5" |
| Reach | 42.6 | 44.6 | 47.6 | 51.1 |
| Stack | 62.3 | 63.3 | 64.2 | 65.1 |
| Effective Top Tube | 58.0 | 60.2 | 63.4 | 67.1 |
| Seat Tube Center-Top | 40.0 | 46.0 | 46.0 | 49.0 |
| Standover Height | 76.3 | 76.3 | 76.7 | 77.7 |
| Head Tube Length | 10.5 | 11.5 | 12.5 | 13.5 |
| Head Tube Angle (degrees) | 64.0 | 64.0 | 64.0 | 64.0 |
| Seat Tube Angle (degrees) | 69.6 | 69.2 | 69.7 | 70.2 |
| Bottom Bracket Height | 35.6 | 35.6 | 35.6 | 35.6 |
| Wheelbase | 121.7 | 124.2 | 127.6 | 131.5 |
| Chainstay | 45.2 | 45.2 | 45.2 | 45.2 |
| Fork Offset | 4.4 | 4.4 | 4.4 | 4.4 |
Sizing Notes
Measurements are stated in centimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
