How to Choose Mountain Bikes

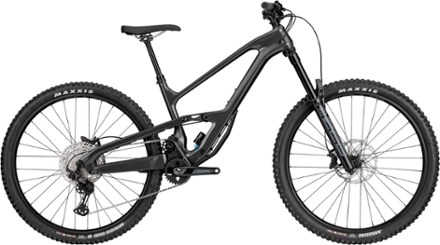

Cannondale Jekyll Carbon 2 Bike - 2021
$3,219.93Compared to $4,600.00* Save 30%
When you're ready to take your enduro riding to the next level, the Cannondale Jekyll Carbon 2 bike is the long-travel trail machine designed to handle challenging rides on the most demanding terrain.
Key Details
Wheel Size
29 inches
Fork Travel
170 millimeters
Number of Gears
12 gear(s)
- Unique suspension and frame design for one-of-a-kind looks
- Shock tucks cleanly into the twin spar down tube, keeping the bike's center of gravity as low as possible for added stability
- Cannondale Proportional Response design is completely customized by size, from the suspension layout to the geometry and length of the chainstays
- High Main Pivot creates a bump-swallowing rearward axle path
- Guidler idler pulley kills pedal kickback of high pivot systems
- Front tires are 2.5 in.; rear tires are 2.4 in.
- 4-bar linkage keeps braking smooth, traction high and pedaling crisp
- Guardhouse down-tube protector helps protect your frame from roost and strikes, while letting water and debris pass through
- Ai offset drivetrain delivers more tire and mud clearance in the swingarm and more even spoke angles for a stiffer, stronger rear wheel
- Pedals not included
- NOTE: Specs and images are subject to change based on component availability
Imported.
This bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
View the Cannondale Jekyll Product LineView all Cannondale Full-Suspension Mountain Bikes- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Mountain Biking |
|---|---|
| Frame | Carbon, Proportional Response Tuned, Guidler idler pulley/chainguide, ISCG05, Ai Offset |
| Mountain Bike Style | All-mountain |
| Bike Suspension | Full Suspension |
| Fork | RockShox Zeb Select, 170 mm, 15x110 mm thru-axle, tapered steerer, 44 mm offset |
| Fork Travel | 170 millimeters |
| Rear Shock | Fox Float DPX2 Performance EVOL, 205x65 Metric Trunnion, Air, 165 mm travel, 3-Pos adj. |
| Crankset | Shimano Deore 6120, 30T, 55 mm CL |
| Bottom Bracket | Shimano Deore BSA 73 |
| Shifters | Shimano Deore M6100, 12-speed |
| Rear Derailleur | Shimano Deore M6100 |
| Rear Cogs | Shimano Deore M6100, 10-51T, 12-speed |
| Number of Gears | 12 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Shimano M6120 hydraulic disc, 203/203 mm RT64 rotors |
| Brake Levers | Shimano M6120 hydraulic disc |
| Rims | WTB STX i30 TCS, 32h, tubeless ready |
| Front Hub | Shimano MT400, 15x110 mm thru-axle |
| Rear Hub | Shimano MT410 12x148 mm thru-axle |
| Wheel Size | 29 inches |
| Tires | Front: Maxxis Assegai, dual compound, EXO+ puncture protection, tubeless ready/Rear: Maxxis Minion DHR II, EXO+, tubeless ready |
| Tire Width | 2.5 inches 2.4 inches |
| Handlebar Shape | Riser Bar |
| Handlebar | Cannondale 3 Riser, 6061 Alloy, 30 mm rise, 8 deg. sweep, 6 deg. rise, 780 mm |
| Stem | Cannondale 3, 6061 alloy, 31.8, 0 deg. |
| Seat Post | S: TranzX dropper, internal routing, 31.6, 130 mm XL: TranzX dropper, internal routing, 31.6, 150 mm |
| Dropper Post | Yes |
| Saddle | Cannondale Stage 3 |
| Pedals | Not included |
| Headset | Integrated Sealed Bearing, tapered |
| Chain | Shimano Deore 6100, 12-speed |
| Weight | Unavailable |
| Gender | Unisex |
Cannondale Bikes (190162)
| S | M | L | XL | |
|---|---|---|---|---|
| Height Range | 5'2" - 5'5" | 5'4" - 5'9" | 5'8" - 6'0" | 5'11" - 6'5" |
| Reach | 42.5 | 45.0 | 47.5 | 51.0 |
| Stack | 62.5 | 63.4 | 64.3 | 65.2 |
| Standover Height | 75.0 | 75.0 | 76.0 | 77.0 |
| Head Tube Angle (degrees) | 64.0 | 64.0 | 64.0 | 64.0 |
| Seat Tube Angle (degrees) | 77.5 | 77.5 | 77.5 | 77.5 |
| Bottom Bracket Height | 34.8 | 34.8 | 34.8 | 34.8 |
| Wheelbase | 119.3 | 122.7 | 126.4 | 131.1 |
| Chainstay | 43.0 | 43.5 | 44.2 | 45.0 |
Sizing Notes
Measurements are stated in centimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
