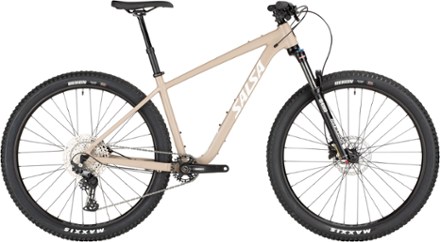

Salsa Rangefinder Deore 12-Speed 29 Mountain Bike
$1,599.00
Build your confidence and become an expert on your local trail systems with the Salsa Rangefinder Deore 12-speed 29 bike. This hardtail's ready for singletrack, doubletrack and even bikepacking trips.
Key Details
Wheel Size
29 inches
Fork Travel
120 millimeters
Number of Gears
12 gear(s)
- 6061-T6 aluminum alloy frame provides lightweight performance for the trails
- Comes with a 120 mm suspension fork for absorbing bumpy terrain
- Drop your saddle at the press of a button to tackle steep descents and technical terrain with the included TranzX dropper post
- Internally-routed shift, brake and dropper post housing keeps everything neat
- 1x drivetrain keeps shifting simple with plenty of gear range
- Hydraulic brakes offer confident stopping power
- Comes with 29 x 2.6 in. wheels and tires; also compatible with 27.5+ wheels and tires (not included)
- Expand your off-road repertoire and carry what you need for bikepacking with the rear rack mounts, integrated top tube bag mount and accessory mount under the down tube
- M, L and XL sizes also feature 2 bottle cage mounts in the frame
- Geometry and specs are designed to grant confidence to newer mountain bikers
- Pedals not included
- NOTE: Specs and images are subject to change based on component availability
Imported.
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information. This bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
View the Salsa Rangefinder Product LineView all Salsa Hardtail Mountain Bikes- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Mountain Biking |
|---|---|
| Mountain Bike Style | All-mountain |
| Frame | Aluminum |
| Bike Suspension | Front Suspension |
| Fork | SR Suntour XCR34 Boost, Air, LOR, DS, 120 mm OR RST Aerial 110-15, Air, TNL, 120 mm |
| Fork Travel | 120 millimeters |
| Crankset | Shimano MT501, 30T |
| Shifters | Shimano Deore M6100 |
| Rear Derailleur | Shimano Deore M6100 SGS |
| Rear Cogs | Shimano Deore M6100 10-51T, 12-speed |
| Number of Gears | 12 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Shimano MT200 OR Tektro M520 OR Promax DSK-925 |
| Rims | WTB ST i30 32 h 29 |
| Front Hub | Shimano MT400 Center Lock 15 x 110 mm thru axle |
| Rear Hub | Shimano MT200 Center Lock 10 x 141 mm quick-release |
| Wheel Size | 29 inches |
| Tires | Maxxis Rekon 29 x 2.6 in., EXO Wire Bead |
| Tire Width | 2.6 inches |
| Handlebar Shape | Riser Bar |
| Handlebar | Salsa Rustler 31.8, 800 mm width |
| Stem | Salsa Guide 31.8, 60 mm, 6 d |
| Seat Post | TranzX YSP18PLQ 130 mm dropper |
| Saddle | WTB Volt Medium, steel, 142 x 265 mm |
| Pedals | Not included |
| Headset | FSA Orbit NO.57E 1.5 ZS |
| Chain | Shimano Deore M6100 |
| Weight | Unavailable |
| Gender | Unisex |
| Dropper Post | Yes |
Salsa Bikes (244563, 184686)
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Height Range | 5'2" - 5'6" | 5'3" - 5'9" | 5'8" - 6' | 5'11" - 6'3" | 6'2" and up |
| Reach | 400.6 | 421.5 | 444.4 | 470.4 | 494.3 |
| Stack | 601.9 | 606.4 | 611 | 620.1 | 629.3 |
| Effective Top Tube | 566.7 | 589 | 613.3 | 641.9 | 668.5 |
| Seat Tube Center-Top | 355 | 381 | 431 | 470 | 508 |
| Standover Height | 688.6 | 708.3 | 747.2 | 779.1 | 808.7 |
| Head Tube Length | 95 | 100 | 105 | 115 | 125 |
| Head Tube Angle (degrees) | 68.6 | 68.6 | 68.6 | 68.5 | 68.5 |
| Seat Tube Angle (degrees) | 74.6 | 74.6 | 74.6 | 74.5 | 74.5 |
| Wheelbase | 1,101.9 | 1,124.7 | 1,149.6 | 1,179.4 | 1,207.1 |
| Chainstay | 439 | 439 | 439 | 439 | 439 |
| Fork Offset | 51 | 51 | 51 | 51 | 51 |
Sizing Notes
Measurements are stated in centimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
