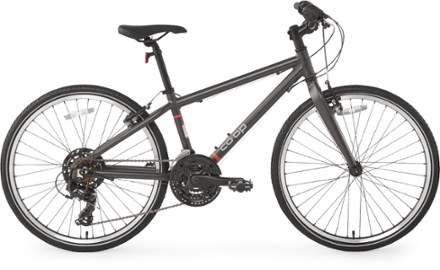

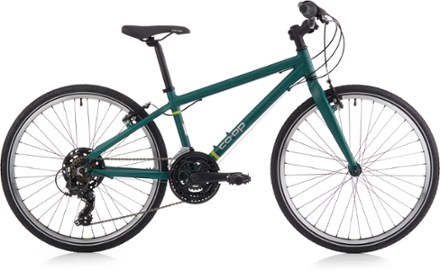

Co-op Cycles REV CTY 24 Kids' Bike
$318.93Compared to $399.00*Save 20%
Not really a "kids' bike," the Co-op Cycles REV CTY 24 bike gives young riders all the performance of an adult bike, scaled down to match their size and designed to build their confidence and skill.
Key Details
Wheel Size
24 inches
Number of Gears
21 gear(s)
- Aluminum frame is lightweight and durable
- Shimano drivetrain provides 21 versatile gearing options for hills, flats and rolling terrain
- Linear-pull rim brakes provide responsive braking power
- All-terrain tires are mounted on sturdy rims for excellent performance on and off the road
- Please note: the small frame may not fit standard-size bottle cages and water bottles; side-entry cages are recommended (not included)
- Bicycle weight limit is 120 lbs. total, including rider + all gear carried on the bike and on the rider's body
- NOTE: Specs and images are subject to change based on component availability
Imported.
This bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
View the Co-op Cycles CTY Product LineView all Co-op Cycles Kids' Cruiser Bikes- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Recreational Cycling |
|---|---|
| Frame | 6061 aluminum |
| Step-Through | No |
| Bike Suspension | No Suspension |
| Fork | 6061 aluminum |
| Crankset | Alloy, 42/34/24 |
| Bottom Bracket | Cartridge |
| Shifters | Shimano Tourney |
| Front Derailleur | Shimano Tourney |
| Rear Derailleur | Shimano Tourney |
| Rear Cogs | Shimano Tourney, 14-34, 7-speed |
| Number of Gears | 21 gear(s) |
| Brake Type | Rim |
| Brakes | Logan linear pull |
| Rims | Aluminum |
| Front Hub | Joytech, with nutted axle |
| Rear Hub | Joytech, with nutted axle |
| Wheel Size | 24 inches |
| Tires | Kenda Cosmos, 24" x 1.5" |
| Tire Width | 1.5 inches |
| Handlebar Shape | Riser Bar |
| Handlebar | Steel riser |
| Stem | Alloy |
| Seat Post | Alloy |
| Saddle | Co-op Cycles |
| Pedals | Wellgo composite platform |
| Headset | Semi cartridge |
| Chain | KMC Z51 |
| Weight | 26 lbs. 1.6 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Kids' |
| Sustainability | From a Climate Label Certified brand |
Co-op Cycles Bikes (143170)
| 24 IN | |
|---|---|
| Reach | 366.3 |
| Stack | 439.4 |
| Effective Top Tube | 500.58 |
| Seat Tube Center-Top | 320 |
| Standover Height | 607.45 |
| Head Tube Angle (degrees) | 71 |
| Seat Tube Angle (degrees) | 73 |
| Wheelbase | 943.65 |
| Chainstay | 390 |
| Fork Offset | 45 |
Sizing Notes
Measurements are stated in millimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
