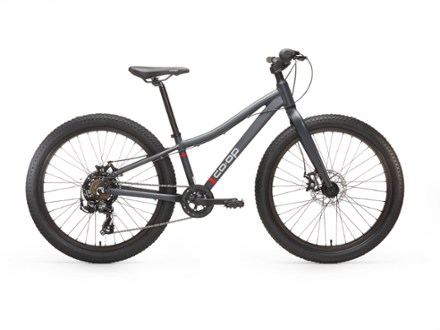

Co-op Cycles  REV 24 Kids' Mountain Bike

This product is not available. Good news: we have a newer version.

For young cyclists ready to build skills on singletrack, the Co-op Cycles REV 24 bike provides reassuring traction and control with plus-size tires and 1x7 shifting to keep the ride light and simple.

Shop newer version

Features

  • 6061 aluminum frame is strong and lightweight
  • 7 gears of easy, intuitive shifting offer power for climbing and speed for cruising
  • Mechanical disc brakes provide confidence-inspiring, responsive braking power in all conditions
  • Plus-size tires are 2.6 in. wide to soften the little bumps and stick to the trail for a smooth, stable ride
  • Bicycle weight limit is 120 lbs. total, including rider + all gear carried on the bike and on the rider's body
  • NOTE: Specs and images are subject to change based on component availability

Imported.

This bike comes with Coast to Coast Support, which includes:
  • 1 year of free adjustments (see more below)
  • In-store bike assembly
  • Pickup in store or curbside
  • Bike experts available at 170+ bike shops
REI Co-op Members get more:
  • 20% off shop services
  • Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
More about our free adjustments:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.

View the Co-op Cycles Rev Product LineView all Co-op Cycles Kids' Bikes

Technical Specs

Best Use

Mountain Biking

Frame

6061 aluminum

Mountain Bike Style

Trail

Bike Suspension

No Suspension

Fork

6061 aluminum; 1-1/8 in. threadless steerer

Crankset

Samox, 36T; 152 mm length

Bottom Bracket

Cartridge

Shifters

Shimano Tourney Revo Twist

Rear Derailleur

Shimano Tourney

Rear Cogs

Shimano Tourney, 14/34T, 7-speed

Number of Gears

7 gear(s)

Brake Type

Mechanical Disc Brake

Brakes

Logan mechanical disc brakes

Rims

Alloy

Front Hub

Joytech, 36h

Rear Hub

Joytech, 36h

Wheel Size

24 inches

Tires

Slant Six Sport, 24 x 2.6 in.

Tire Width

2.6 inches

Handlebar Shape

Riser Bar

Handlebar

Aluminum; clamp diameter: 31.8 mm; bar-end diameter: 22.2 mm

Stem

Alloy

Seat Post

Alloy

Saddle

Co-op Cycles

Pedals

Wellgo composite platform with 9/16 in. axle

Headset

Semi cartridge

Chain

KMC Z51

Weight

28 lbs. 3.2 oz.

Bike Weight

Bike weight is based on median size, as sold, or the average of two median sizes.

Gender

Kids'

Sustainability

From a Climate Label Certified brand

Additional Information

Size Chart

Co-op Cycles Bikes (143169)
24 IN
Reach356
Stack495
Effective Top Tube510
Seat Tube Center-Top290
Standover Height594
Head Tube Angle (degrees)69
Seat Tube Angle (degrees)72
Wheelbase968.7
Chainstay410
Fork Offset40

Sizing Notes

Measurements are stated in millimeters or degrees unless otherwise indicated.

How we measure bikes

  1. Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
  2. Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
  3. Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
  4. Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
  5. Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
  6. Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
  7. Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
  8. Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
  9. Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
  10. Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
  11. Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
  12. Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
REI Co-opREI co-op logo

Better gear is built together

From feedback to field testing, all of our gear is dialed-in by REI Co-op members. Their adventures informed every stitch and detail—making for better, longer-lasting gear.

List of certifications which include The Climate Label certification,
        member informed certification and 100% satisfaction guarantee
Rei Coop brand gifREI Coop brand tent with a user inside wearing a REI Coop brand sweater
List of certifications which include The Climate Label certification,
        member informed certification and 100% satisfaction guarantee

Reviews
106 reviews with an average rating of 4.2 out of 5 stars

Ratings Snapshot

Product Rating

54 out of 74 (73%) reviewers recommend this product

Review this Product

Adding a review will require a valid email for verification

Average Customer Ratings

Overall Fit Rating

Runs SmallRuns Large

Most Helpful Favorable Review

5 reviews with an average rating of 5.0 out of 5 stars
Smooth Ride for My 10 Year Old
Just a Dad
5 years ago
We bought this bike for our son's 10th birthday. Assembly was pretty quick (3 pieces) and REI even included a multi tool in the box to help you put it together. My only complaint is that the instructions covered 3 bike styles, so you have to find the subpart in each step that relates to your bike. The most important part is... my son really likes the bike. - It fits him well (no issue with tire clearance, which I saw in another review). - It is not much heavier than his old bike. - This is his first bike with gears. He figured it out right away. Shifting is smooth. - And finally, it looks cool. I would recommend it for sure!
Just a Dad
San Ramon, CA
30 people found this review helpful

Most Helpful Critical Review

5 reviews with an average rating of 2.0 out of 5 stars
Great looking bike, but flawed for kids
Rober
5 years ago
I was very encouraged by the reviews for this bike – including one from what I presume to be a proud outdoorsman whose small child (younger than the recommended age for this bike) raved that his youngster loved it. Has anyone noticed that the front wheel knocks your kid's feet off the pedals as there is almost zero clearance between the pedal and front tire when turning? Are we required to train them to be on their toes on the pedals? ...because even on the balls of their feet, a 10-year old still does not clear the front tire when pedaling through a turn. Odd design choice, which resulted in what can only be considered a product defect for a kids' bike.
Rober
New York, NY
48 people found this review helpful

Customer Images

Nhat
Manhattan Beach, CA
Rated 4.0 out of 5 stars

Great Bike with Some Cons

4 years ago

The bike is for my 10 year old and he loves it. Only having 7 gears helped him make the transition to a geared bike easier since it's only one shifter. We love everything about the bike except for a few things: it's a little on the heavy side, the tires are too wide, and no braze-ons for a waterbottle cage. I ended up changing out to thinner tires to reduce the rolling friction, added a waterbottle cage to the handbars (not pretty or ideal but it works), and added a kickstand. I noticed there are a few questions regarding kickstands, so I've included some photos showing how well the one I bought on Amazon worked out.

Yes , I recommend this product

Overall Fit Rating

Runs SmallRuns Large
Helpful?
Just a Dad
San Ramon, CA
Rated 5.0 out of 5 stars

Smooth Ride for My 10 Year Old

5 years ago

We bought this bike for our son's 10th birthday. Assembly was pretty quick (3 pieces) and REI even included a multi tool in the box to help you put it together. My only complaint is that the instructions covered 3 bike styles, so you have to find the subpart in each step that relates to your bike. The most important part is... my son really likes the bike. - It fits him well (no issue with tire clearance, which I saw in another review). - It is not much heavier than his old bike. - This is his first bike with gears. He figured it out right away. Shifting is smooth. - And finally, it looks cool. I would recommend it for sure!

Yes , I recommend this product
Helpful?
Richard
Sugar Land
Rated 4.0 out of 5 stars

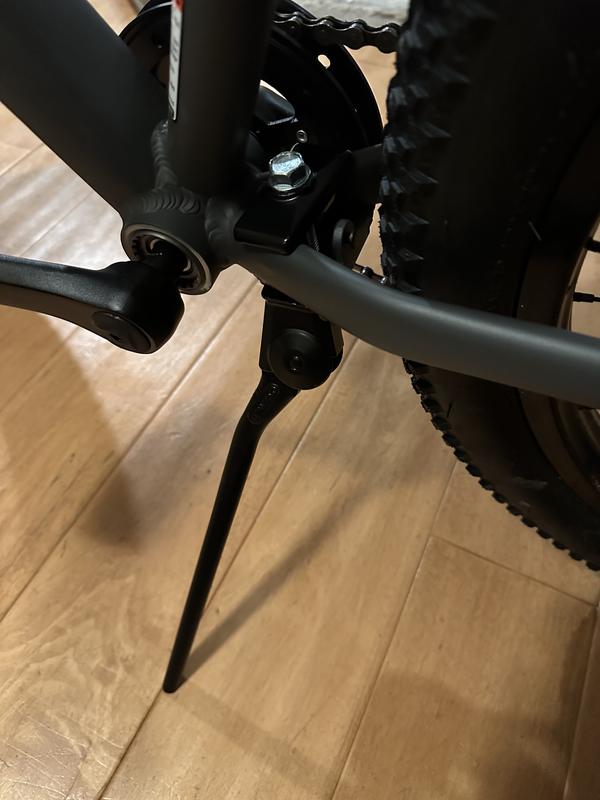

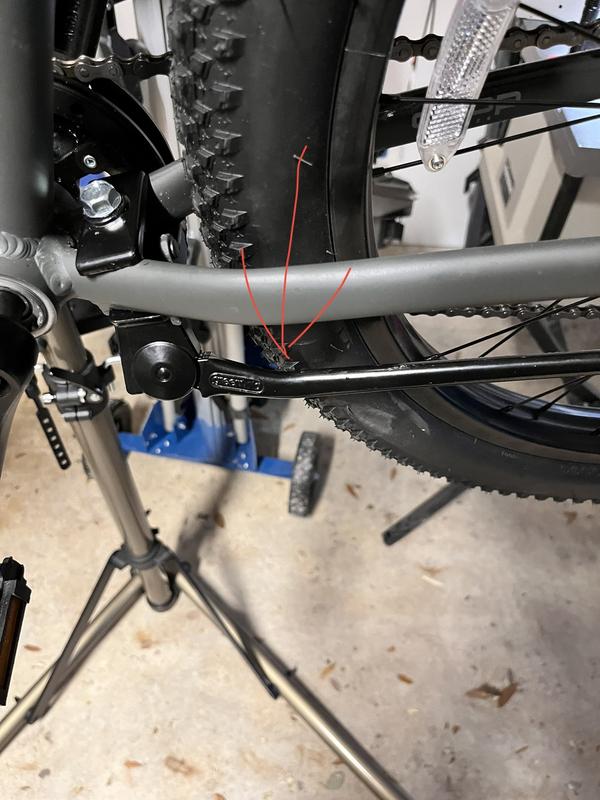

Great bike. kickstand needs some grinding.

2 years ago

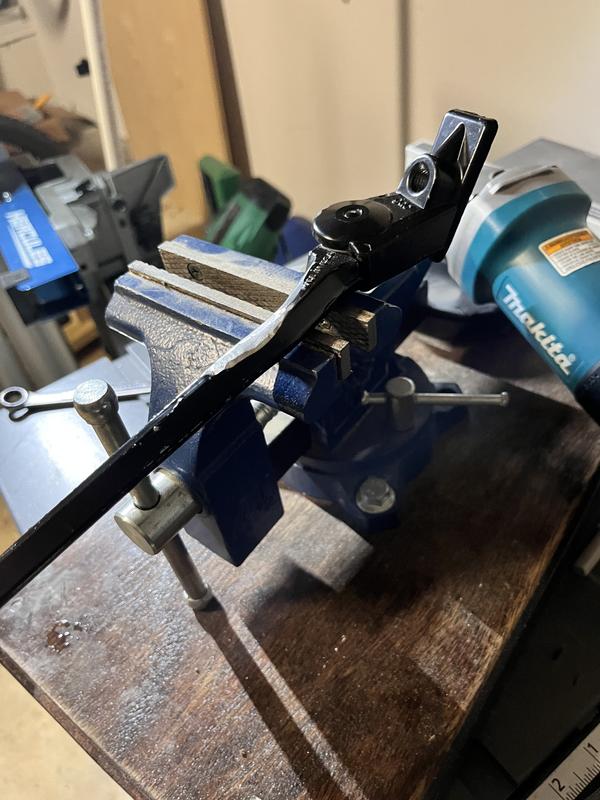

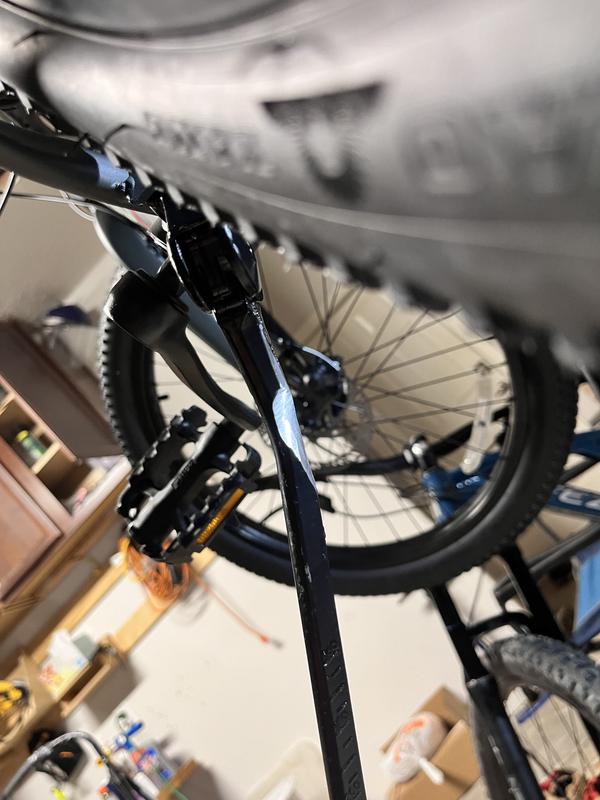

Great bike for kids. Parts are low end, but good enough for kids. My 9 years old daughter loves it. Be aware of the kickstand kS2-305B. This kickstand need to grind a big portion on the inner side, otherwise it will rub on the tire.

Yes , I recommend this product
Helpful?
CROUTDOORS
Santa Barbara, CA
Rated 5.0 out of 5 stars

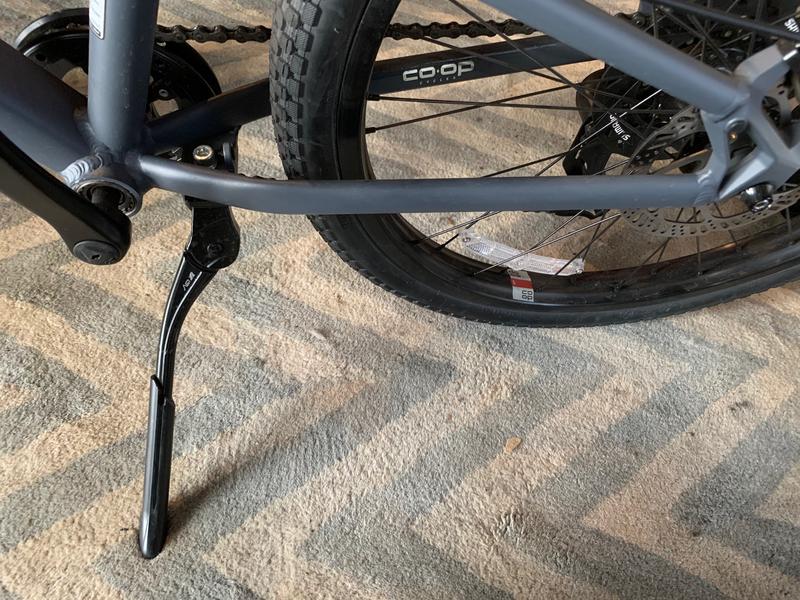

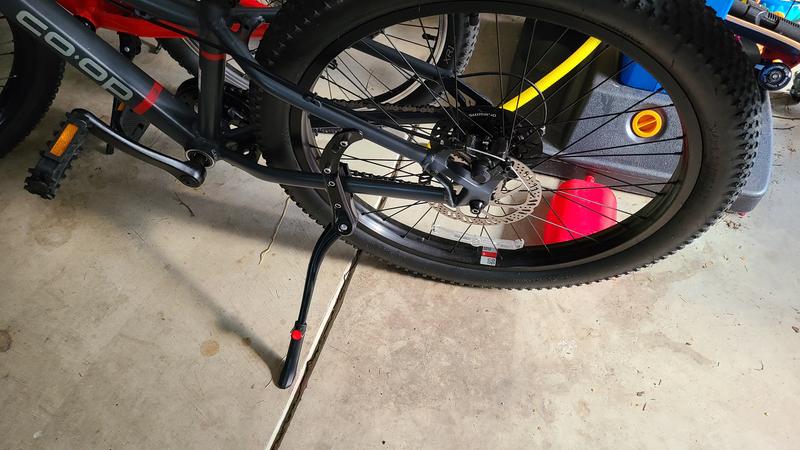

Found a KICKSTAND that works!

2 years ago

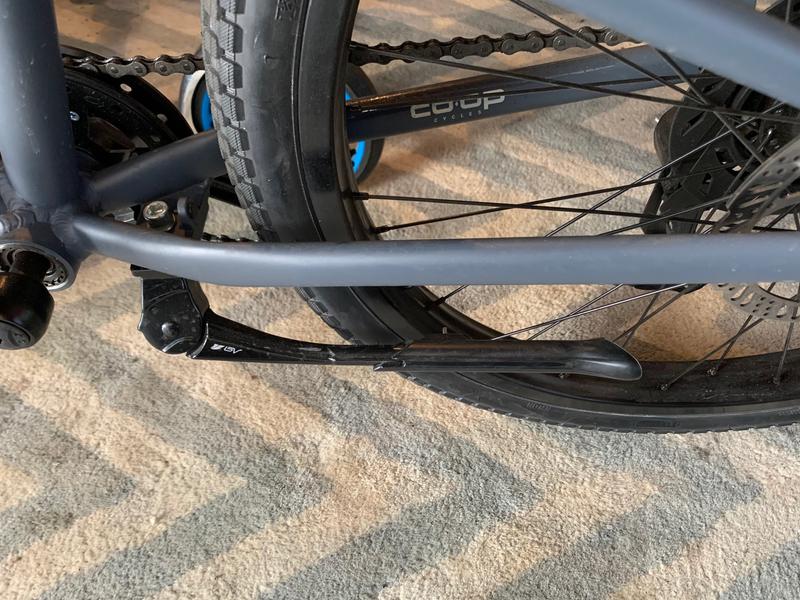

Great bike and features for the value. Many people say that one of the cons about this bike is that there are no kickstands that fit it...I purchased the Greenfield KS2-305 ("B" for Black) kickstand and it fits great! Cast aluminum, super heavy duty and will last as long as the bike...it clears the tire by about 1/8 of an inch and is perfectly in line with the frame when up. You do have to cut it to size with a hacksaw, but it is simple to do and if wanted, Greenfield has a rubber end you can purchase and install.

Yes , I recommend this product

Overall Fit Rating

Runs SmallRuns Large
Helpful?
Rober
New York, NY
Rated 2.0 out of 5 stars

Great looking bike, but flawed for kids

5 years ago

I was very encouraged by the reviews for this bike – including one from what I presume to be a proud outdoorsman whose small child (younger than the recommended age for this bike) raved that his youngster loved it. Has anyone noticed that the front wheel knocks your kid's feet off the pedals as there is almost zero clearance between the pedal and front tire when turning? Are we required to train them to be on their toes on the pedals? ...because even on the balls of their feet, a 10-year old still does not clear the front tire when pedaling through a turn. Odd design choice, which resulted in what can only be considered a product defect for a kids' bike.

No, I do not recommend this product
Helpful?
Al22
Irvine, CA
Rated 5.0 out of 5 stars

Great Bike for 9 Year Old Boy

4 years ago

I have two sons and bought few sub $500 bikes in last few years and this bike is one of the best ones for this category in the marketplace. You are not paying $1,000 plus for this bike, so don't expect it to perform like one. For it's price, the bike has a great built quality, looks good and it's pretty durable. Brakes and gears work great, we've had the bike for few months now and my 9 year old son loves the bike. Again, this is not a heavy duty mountain bike, perfect for street and light mountain biking for beginners to intermediate mountain bikers.

Yes , I recommend this product

Overall Fit Rating

Runs SmallRuns Large
Helpful?
Cytarabine
Hood River
Rated 2.0 out of 5 stars

Sigh. Off to a bad start

3 years ago

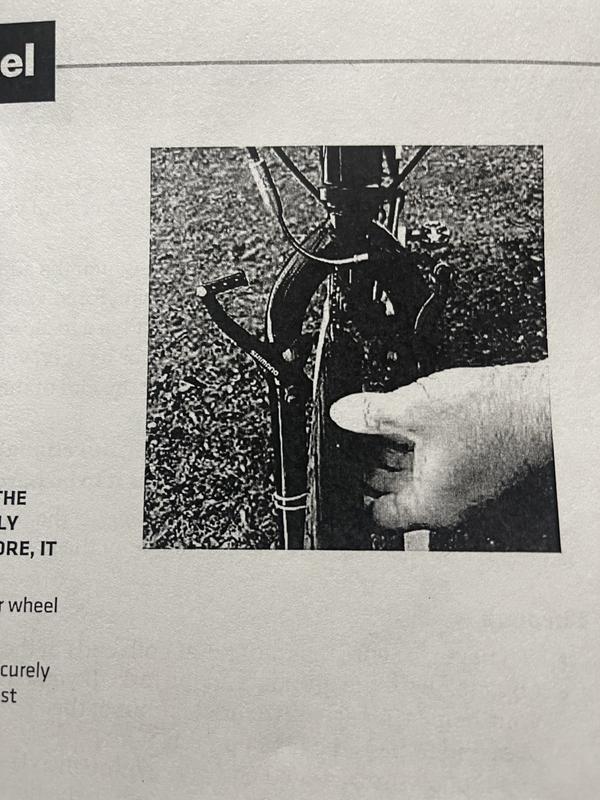

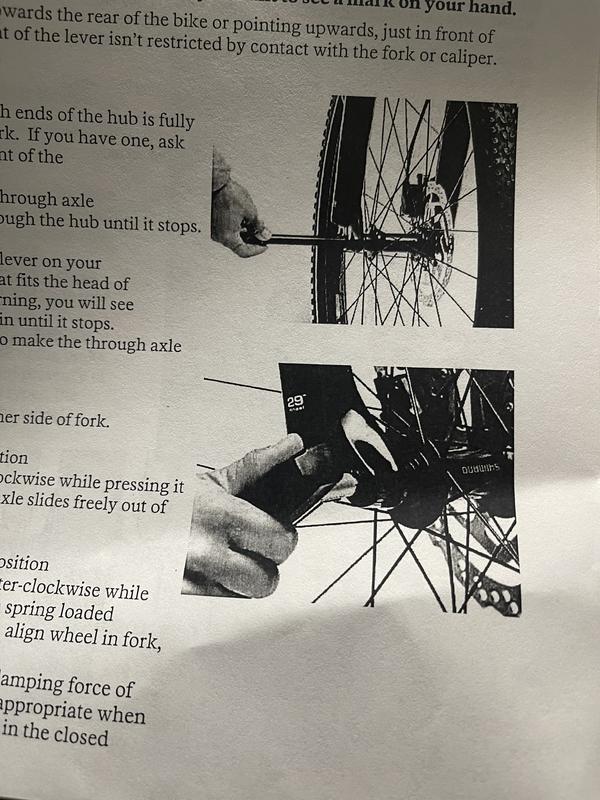

I ordered this for my 8 year old. I had it shipped to the house because I didn’t want go to a store. I’m currently putting it together and I simply have one question. Does REI not own a medium resolution color printer? The quality of the pictures in the instructions make these almost worthless. Of course I will get it figured out but why intentionally make it more difficult. Come on REI. Be better than that.

No, I do not recommend this product

Overall Fit Rating

Runs SmallRuns Large
Helpful?
Impish123
Columbus, OH
Rated 5.0 out of 5 stars

Awesome Ripper for your 7-10 (11?)

4 years ago

I got to tell you, this bike rocks. My 7 year old (now 8) and his cousin have been able to put up 16 mile mountain biking days down at Baileys Trail System in south-eastern Ohio (seriously impressive trail) and they KILLED it. ONE NOTE, upgrade to a trigger shifter and have REI install it for you! MADE A HUGE DIFFERENCE! Seriously the kids freaking love these bikes and they allow them to keep up with my brother-in-law and me on $1500+ bikes. The name brand (if still somewhat generic Tektro) are WAY better than the stuff they were installing on the 20" version of this a couple years ago.

Yes , I recommend this product

Overall Fit Rating

Runs SmallRuns Large
Helpful?
Joe44
Portland
Rated 4.0 out of 5 stars

Nice bike...with a modification

3 years ago

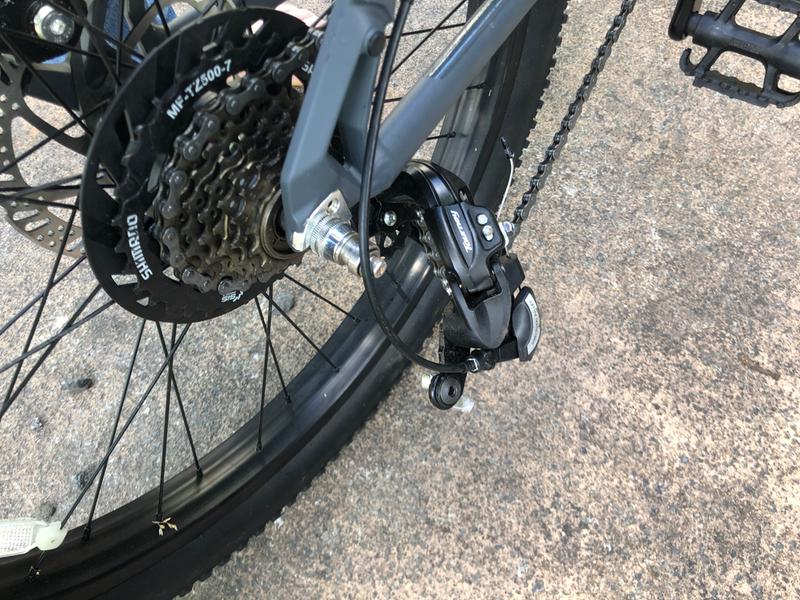

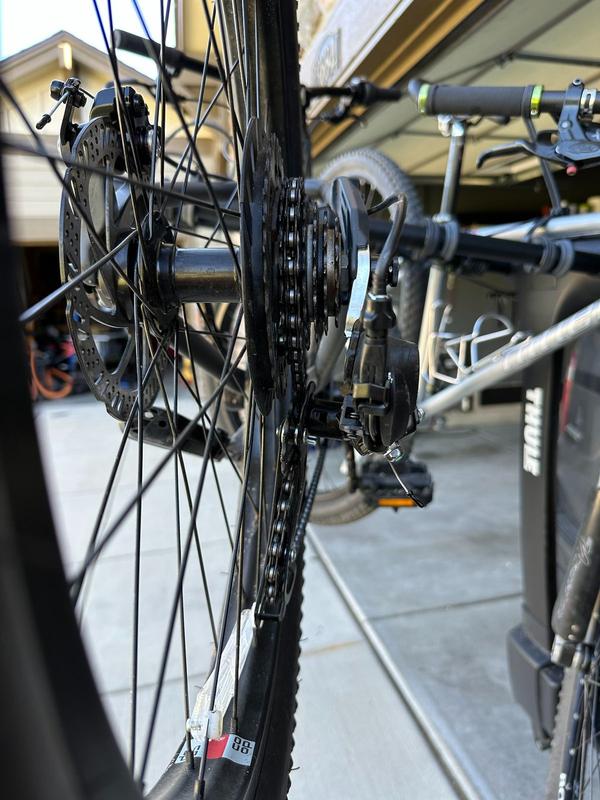

Bought this after a great experience with the Rev20. Solid bike but the so called mega-range freewheel has a massive jump between first and second gear. My son hated it and it made climbing hills were we live difficult. Swapped it out for a freewheel with an in-between gear (Sunrace) which solved the problem. Probably would have returned it otherwise. There are better bikes out there but the price is reasonable for a bike that will get knocked about learning to ride trails and out grown in a few years. It's a little on the heavy side but manageable.

Overall Fit Rating

Runs SmallRuns Large
Helpful?
MtGirl
Seattle, WA
Rated 5.0 out of 5 stars

Great Bike; on hills, roads, and trails

2 years ago

This bike fits my tall 9 year old great! He can shift (which he wasn't able to to do on many bikes we tried) and now he is cruising up way too steep hills (no more walking up hills!) He can reach the handle brakes for the downhills. He loves it and we love it, so we can go on family rides in our very hilly neighborhood. For the price and features, def recommend purchasing for your kid.

Yes , I recommend this product

Overall Fit Rating

Runs SmallRuns Large
Helpful?
1 - 10 of 106 Reviews
