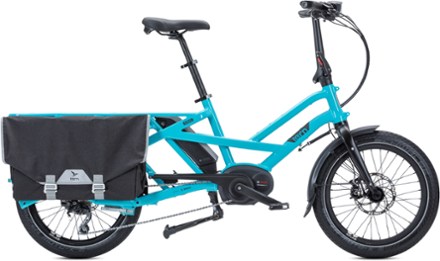

Tern GSD S10 Electric Bike

This product is not available.

Shop similar products

A city-ready utility e-bike made with families in mind, the Tern GSD S10 electric bike can carry 2 kids or up to 400 lbs. of cargo, despite being the same length as a standard e-bike.

  • Features

    • Folding technology compacts to a third of its full size in only 10 seconds so you can store it in your apartment, fit it in the elevator or stash it on a train
    • Carries 2 kids (Thule Yepp Maxi child seats sold separately) and a week's worth of groceries—up to 400 lbs. of cargo, including rider
    • Low step-through frame makes getting on and off easy
    • When you're riding uphill with the kids on the back, rely on the Bosch motor and battery to deliver outstanding performance and power
    • Adjusts to fit riders from 4 ft. 8 in. to 6 ft. 4 in., so the whole family can ride
    • Specs and images are subject to change

    Imported.

    This e-bike comes with Coast to Coast Support, which includes:
    • 1 year of free adjustments (see more below)
    • In-store bike assembly
    • Pickup in store or curbside
    • Bike experts available at 170+ bike shops
    REI Co-op Members get more:
    • An additional year of free adjustments (2 total years; see below)
    • Free flat tire repairs (labor only; parts not included)
    • 20% off shop services
    More about our free adjustments:
    New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.

    View the Tern GSD Product Line View all Tern Electric Cargo Bikes
  • Technical Specs

    Best Use

    Urban Cycling

    E-Bike Classification

    Class 1: pedal assist up to 20 mph

    Motor

    Bosch Performance Line, 250W

    Motor Type

    Mid-Drive

    Motor Torque (Nm)

    63 Newton meters

    Battery Type

    Lithium Ion

    Battery Capacity (Wh)

    400 watt hours

    Pedal Assist Range

    31 - 68 miles

    Frame

    7005 aluminum

    Step-Through

    No

    Bike Suspension

    No Suspension

    Fork

    6061 aluminum

    Crankset

    Tern GSD Custom with forged 6061 aluminum DH crank arm

    Bottom Bracket

    Motor integrated

    Shifters

    Shimano Deore 1 x 10-speed

    Rear Derailleur

    Shimano Deore Shadow+

    Rear Cogs

    Shimano 11-36T, 10-speed

    Number of Gears

    10

    Brake Type

    Hydraulic Disc Brake

    Brakes

    Magura MT-4, 4 piston hydraulic, 180mm rotor

    Brake Levers

    Magura, hydraulic

    Rims

    Tern Atlas, ultra wide 36mm, dual reinforced joint

    Front Hub

    Tern Atlas, Boost thru-axle

    Rear Hub

    Tern Atlas, Boost thru-axle, e-bike reinforced design

    Wheel Size

    20 inches

    Tires

    Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex

    Tire Width

    Unavailable

    Handlebar Shape

    Moustache Bar

    Handlebar

    Tern Sweep, 27°, 6061 aluminum, Tern Andros adapted

    Stem

    Tern Andros (G2), adjustable, forged construction, patented technology

    Seat Post

    Tern Telescope, 34.9mm, 2014 aluminum

    Saddle

    Tern GSD, with rear handle

    Pedals

    Urban with nonslip surface, sealed bearings

    Headset

    Tern Flux Pro Taper, 1.5 in., angular contact bearings, Physis integrated

    Chain

    10-speed, DHT for e-bike, GST corrosion-resistant coating

    Weight

    (With 1 battery): 59 lbs. 10.5 oz.

    Bike Weight

    Bike weight is based on median size, as sold, or the average of two median sizes.

    Gender

    Unisex

  • Size Chart

    One Size
    Height Range 4'11"-6'5"

    How we measure bikes

    1. Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
    2. Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
    3. Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
    4. Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
    5. Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
    6. Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
    7. Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
    8. Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
    9. Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
    10. Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
    11. Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
    12. Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
