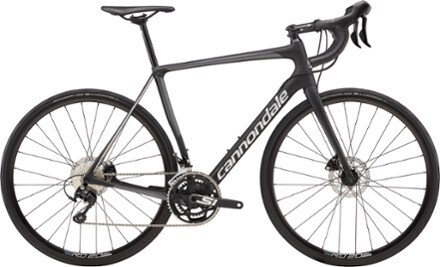

Cannondale Synapse Carbon Disc 105 Bike - 2018
This product is not available.
Offering comfort for long days in the saddle and confident handling on all road surfaces, the Cannondale Synapse Carbon Disc 105 bike is light, smooth, fast and elegantly designed.
Shop similar productsKey Details
- Carbon frame with Endurance Race geometry provides stable, confident handling and creates a more upright riding position for all-day comfort
- 2 different fork rake sizes (60mm for smaller sizes and 50mm for larger sizes) deliver consistent handling across all frame sizes and offer reduced toe overlap on small sizes
- SAVE Plus micro-suspension flex zones in the rear triangle and fork keep you comfortable and in control
- Clearance for tires up to 32mm wide and subtle rack/fender mounts ready it for back-road exploring, group rides, commutes and anything in between; rack/fenders not included
- NOTE: Specs and images are subject to change based on component availability
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Road Cycling |
|---|---|
| Frame | BallisTec carbon |
| Fork | BallisTec carbon |
| Bike Suspension | No Suspension |
| Crankset | Cannondale Si, BB30a, FSA rings, 50/34 |
| Bottom Bracket | FSA BB30 bearings |
| Shifters | Shimano RS505 |
| Front Derailleur | Shimano 105, braze-on |
| Rear Derailleur | Shimano 105 GS |
| Rear Cogs | Shimano 105, 11-32T, 11-speed |
| Number of Gears | 22 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Shimano RS505 hydraulic disc, flat mount, 160/160mm rotors |
| Brake Levers | Shimano RS505 |
| Rims | RD 2.0 disc, 28h |
| Front Hub | Formula CX20 100x12mm |
| Rear Hub | CX 22 142x12mm |
| Wheel Size | 700c |
| Tires | Schwalbe Lugano, folding |
| Tire Width | 28 millimeters |
| Handlebar Shape | Drop Bar |
| Handlebar | Cannondale C3, butted 6061 alloy, compact |
| Stem | Cannondale C3, 6061 Alloy, 31.8, 6 deg. |
| Seat Post | Cannondale C3, 6061 alloy; 48-56cm: 25.4x350mm; 58-61cm: 25.4x400mm |
| Saddle | Selle Royal Seta S1 |
| Pedals | Sold separately |
| Headset | Synapse Si, 25mm carbon spacer |
| Chain | Shimano HG601, 11-speed |
| Weight | 20 pounds |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
| 51 CM | 54 CM | 56 CM | 58 CM | 61 CM | |
|---|---|---|---|---|---|
| Height Range | 5'3" - 5'6" | 5'6" - 5'9" | 5'9" - 6'0" | 6'0" - 6'3" | 6'3" - 6'6" |
| Reach | 37.7 | 38.2 | 38.6 | 39.3 | 40.2 |
| Stack | 55.0 | 57.0 | 59.0 | 61.0 | 64.0 |
| Effective Top Tube | 53.1 | 54.7 | 56.1 | 57.9 | 60.4 |
| Seat Tube Center-Top | 44.3 | 48.0 | 52.0 | 55.0 | 59.0 |
| Standover Height | 74.2 | 77.3 | 80.4 | 83.3 | 86.8 |
| Head Tube Length | 137. | 16.1 | 17.3 | 19.7 | 22.9 |
| Head Tube Angle (degrees) | 71.7° | 71.7° | 73.0° | 73.0° | 73.0° |
| Seat Tube Angle (degrees) | 74.3° | 73.9° | 73.5° | 73.0° | 72.5° |
| Bottom Bracket Height | 27.0 | 27.2 | 27.2 | 27.5 | 27.5 |
| Wheelbase | 99.4 | 100.8 | 99.5 | 100.9 | 102.8 |
| Chainstay | 41.0 | 41.0 | 41.0 | 41.0 | 41.0 |
| Fork Offset | 5.5 | 5.5 | 4.5 | 4.5 | 4.5 |
Sizing Notes
Measurements are stated in centimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
