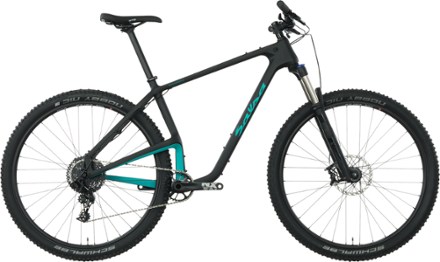

Salsa  Woodsmoke 29er NX1 Bike - 2017

This product is not available.

Adaptable for nearly any type of riding, the carbon-fiber Salsa Woodsmoke 29er NX1 bike can tear up the single track with the best of them, or load it up with gear for extended 2-wheel adventures.

Shop similar products

Features

  • Woodsmoke Geometry has a longer top tube and shorter stem delivering a confidence inspiring riding position
  • Ultrashort chainstays combine with carbon's light weight and stiffness to create a bike that's nimble and fast
  • Woodsmoke comes standard with 29er wheels and tires but is capable of running 27.5+ and 29+ wheels as well
  • RockShox Recon Silver RC solo air shock delivers 120mm of trail smoothing travel
  • Alternator 2.0 dropouts allow for multiple drivetrain options
  • Although the Woodsmoke comes standard with a SRAM 1x11 drivetrain, it is 2x compatible
  • Interior Junction Control Molding Technology allows for precise control of wall thickness and inner wall smoothness for fewer voids and wrinkles in the carbon construction
  • Tapered headtube increases front-end frame and fork stiffness without adding significant weight
  • Seat tube is dropper post compatible (not included)
  • Full-length internal housing cable routing improves shifting while riding in inclement weather
  • Fittings throughout the frame and a large front triangle welcome all the gear you need for backcountry trips
  • Multiple attachment points for water bottle cages (cages not included)
  • Replaceable derailleur hanger
  • NOTE: Specs and images are subject to change based on component availability

Imported.

This bike comes with Coast to Coast Support, which includes:
  • 1 year of free adjustments (see more below)
  • In-store bike assembly
  • Pickup in store or curbside
  • Bike experts available at 170+ bike shops
REI Co-op Members get more:
  • 20% off shop services
  • Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
More about our free adjustments:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.

View all Salsa

Technical Specs

Best Use

Mountain Biking

Mountain Bike Style

Trail

Frame

Carbon

Bike Suspension

Front Suspension

Fork

RockShox Recon Silver RC Solo Air

Fork Travel

120 millimeters

Crankset

SRAM NX, X-SYNC 32t

Bottom Bracket

Unavailable

Shifters

SRAM NX

Rear Derailleur

SRAM GX

Rear Cogs

Sunrace 11-42t

Number of Gears

11

Brake Type

Hydraulic Disc Brake

Brakes

SRAM Level

Brake Levers

SRAM Level

Rims

WTB i23

Front Hub

Salsa

Rear Hub

Salsa

Wheel Size

29 inches

Tires

Schwalbe Knobby Nic 29"

Tire Width

2.25 inches

Handlebar Shape

Flat Bar

Handlebar

Salsa Rustler 3

Stem

Salsa Guide

Seat Post

Zoom 30.9mm

Saddle

WTB Volt Comp

Headset

Cane Creek 40

Chain

KMC X11

Weight

29 lbs. 3 oz.

Bike Weight

Bike weight is based on median size, as sold, or the average of two median sizes.

Gender

Unisex

Size Chart

Salsa Bikes (111212)
XSSMLXL
Height Range5'2"-5'-6"5'3"-5'-9"5'8"-6'-0"5'11"-6'-3"6'2"+
Reach15.416.116.817.918.9
Stack23.523.824.224.524.9
Effective Top Tube22.4623.2624.0425.2226.41
Seat Tube Center-Top1415171921
Standover Height28.128.930.431.632.7
Head Tube Length3.943.944.334.725.12
Head Tube Angle (degrees)67.867.867.867.867.8
Seat Tube Angle (degrees)73.373.373.373.373.3
Wheelbase42.3-42.943.1-43.844.0-44.645.2-45.846.4-47
Chainstay16.1-16.416.1-16.416.1-16.416.1-16.416.1-16.4
Fork Offset2.012.012.012.012.01

Sizing Notes

Measurements are stated in inches unless otherwise indicated.

How we measure bikes

  1. Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
  2. Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
  3. Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
  4. Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
  5. Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
  6. Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
  7. Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
  8. Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
  9. Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
  10. Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
  11. Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
  12. Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.

Reviews
2 reviews with an average rating of 3.5 out of 5 stars

Ratings Snapshot

Product Rating

1 out of 2 (50%) reviewers recommend this product

Review this Product

Adding a review will require a valid email for verification

pmcoffee
North Alabama
Rated 5.0 out of 5 stars

Versatile adventure bike

8 years ago

Bought 2 Salsa Woodsmokes (his and hers) as a ride that could do both challenging single tracks and bikepacking trips, which are typically mixed double/single track and gravel grinding for us in the southeastern US. In summary, it does both very, very, well. For single track, it’s quick, cuts well, and rolls when you need it to. There is some adjusting your climbing position due to the short chainstays, but overall, very fun and easy to handle. For bikepacking, we rigged it with a Salsa front bag, a custom framebag, PDW Brindle rack with dry bags, and a jerry and gas tank bags. We did an 8 day trek, and the bike was solid, reliable, and comfortable. It performed well in wet packed gravel and sand, and rolled well on the trail, and was a pretty plush ride. The NX1 11- speed system works well and is nicely spaced, and wheels and hubs are solid and have taken all the beating we’ve given them. Brakes are adequate, and we’ve upgraded to thudbuster seat posts, tubeless, new seats, and Ergon grips. With these mods, it’s a really nice performing all-rounder that is comfortable in a wide range of applications. We have no regrets in this purchase after 6 months of use. I think Salsa achieved their design goal on this one; a versatile, high performing and comfortable do-everything adventure bike.

Yes , I recommend this product
Helpful?
vanjr
Corpus Christi, TX, United States
Rated 2.0 out of 5 stars

So far disappointing

7 years ago

I decided on this bike for versatility, but components have frustrated me. The wheels are tubeless ready, but it comes with Nobby Nics that are not tubeless friendly. I was unable to get them set up tubeless until I got some tubeless friendly tires and then they were relatively easy. The WTB stock seat is one of the worst mountain/road seats I have ever seen. It literally came off the rails in less than 10 rides and I am NOT an aggressive rider at all (ie I never "get air"). The rest of the bike seems ok. If I can only keep it working (the down time to get tubeless set up working was on the order on 6 weeks or so).

No, I do not recommend this product
Helpful?
