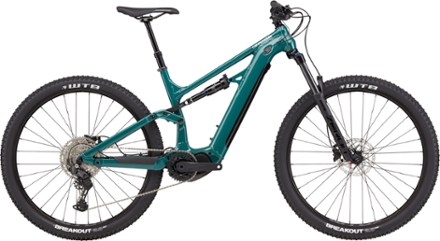

Cannondale Moterra Neo S3 Electric Mountain Bike
$3,000.00
Get ready to crank up the fun factor with the Cannondale Moterra Neo S3 electric mountain bike. Built for trail-riding fun, this full-suspension aluminum e-MTB thrives in the mountains.
Key Details
E-Bike Classification
Class 1: pedal assist up to 20 mph
Motor
Shimano EP6
Battery Capacity (Wh)
630 watt hours
- Dialed trail-riding frame geometry and true trail-ready components make this rig a blast on everything from rolling hills to hardcore singletrack
- With its low center of gravity and dialed geometry, the handling of the Moterra Neo S3 will help you find a whole new level
- Shimano STEPS EP6 series 11-speed drive system and 630 Wh battery deliver integrated power, range and reliability so you can simply ride anything
- 630 Wh battery gives you the range to seek out serious adventure, and a weather-sealed compartment keeps the battery dry, safe and easily accessible for in-home charging
- Intuitive Shimano switch unit lets you change assist modes without ever taking your hands from the bars
- Easy-to-read display gives all the important information—like speed, battery level, mode and more—at a glance
- SR Suntour Zeron 36 fork with 140 mm travel
- Optimized for e-MTBs, the tuned 4-bar link suspension delivers 150 mm of rear travel, with a crisp pedaling feel, traction on the climbs and supple smoothness on the descents
- Fast-rolling, large-volume 29er tires, wide handlebars, a huge gear range and a great finishing kit sets you up for good times in the dirt
- SmartForm C2 alloy construction features refined butting and precisely controlled tube shapes for incredible performance
- Thru-axle LockR pivot system creates a rock-solid connection between both sides of the swingarm: no twist, no flex, just instantaneous response
- Pedals not included
- NOTE: Specs and images are subject to change based on component availability
Imported.
This e-bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
UL2849 certified
View the Cannondale Moterra Product LineView all Cannondale Full-Suspension Mountain Bikes- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- An additional year of free adjustments on e-bikes
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
UL2849 certified
| Best Use | Mountain Biking |
|---|---|
| E-Bike Classification | Class 1: pedal assist up to 20 mph |
| Motor | Shimano EP6 |
| Motor Type | Mid-Drive |
| Motor Torque (Nm) | 85 Newton meters |
| Battery Type | Lithium Ion |
| Battery Capacity (Wh) | 630 watt hours |
| Battery Removable | Yes |
| Charge Time (hrs) | 8-10 hours |
| Pedal Assist Range | 30-60 miles |
| Mountain Bike Style | Trail |
| Frame | 150 mm travel, SmartForm C2 Alloy, Cannondale Tuned Suspension, removable downtube battery, internal cable routing, 148 x 12 mm thru axle, post-mount brake, tapered head tube |
| Bike Suspension | Full Suspension |
| Fork | SR Suntour Zeron 36 Boost, 140 mm, Air, rebound adjust, tapered steerer, 44 mm offset |
| Fork Travel | 140 millimeters |
| Rear Shock | X-Fusion O2 Pro Air, adjustable rebound, lock-out |
| Crankset | FSA E-Bike for Shimano, 165 mm, 34T |
| Shifters | Shimano CUES U6000, trigger style, 11-speed |
| Rear Derailleur | Shimano CUES U6000, 11-speed |
| Rear Cogs | Shimano CUES LG400, 11-50T, 11-speed |
| Number of Gears | 11 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Shimano MT200 hydraulic disc, 180/180 mm RT10 rotors |
| Brake Levers | Shimano MT200 hydraulic disc |
| Rims | WTB STX i25 TCS, 32h |
| Front Hub | Shimano TC500, 15 x 110 mm thru-axle, Center Lock |
| Rear Hub | Shimano TC500, 12 x 148 mm thru-axle, Center Lock |
| Wheel Size | 29 inches |
| Tires | WTB Breakout Comp, DNA compound |
| Tire Width | 2.3 inches |
| Handlebar Shape | Riser Bar |
| Handlebar | Cannondale 3 Riser, 6061 Alloy, 15 mm rise, 8 deg. sweep, 4 deg. rise, 780 mm width |
| Stem | Cannondale 3, 3D Forged 6061 Alloy, 1-1/8 in., 31.8 mm, 6 deg. rise |
| Seat Post | TranzX dropper, internal routing, 31.6 mm; travel: S: 120 mm; M-L: 130 mm |
| Dropper Post | Yes |
| Saddle | Cannondale Stage 3 |
| Pedals | Not Included |
| Headset | Integrated, 1-1/8 to 1-1/2 in., sealed bearings |
| Chain | Shimano LG500 Linkglide, 11-speed |
| Weight | Unavailable |
| Gender | Unisex |
Cannondale Bikes (253163)
| S | M | L | XL | |
|---|---|---|---|---|
| Height Range | 5'1" - 5'5" | 5'4" - 5'9" | 5'9" - 6'1" | 6' - 6'5" |
| Reach | 42.5 | 45 | 47.5 | 50 |
| Stack | 61.7 | 61.7 | 61.7 | 62.6 |
| Effective Top Tube | 57.9 | 60.4 | 62.9 | 65.6 |
| Seat Tube Center-Top | 43 | 45 | 48 | 51 |
| Standover Height | 72.7 | 73.5 | 74.5 | 77 |
| Head Tube Length | 11.5 | 11.5 | 11.5 | 12.4 |
| Head Tube Angle (degrees) | 65 | 65 | 65 | 65 |
| Seat Tube Angle (degrees) | 71 | 71 | 71 | 71 |
| Bottom Bracket Height | 35 | 35 | 35 | 35 |
| Wheelbase | 120.9 | 123.4 | 125.9 | 128.8 |
| Chainstay | 45.5 | 45.5 | 45.5 | 45.5 |
| Fork Offset | 5.1 | 5.1 | 5.1 | 5.1 |
Sizing Notes
Measurements are stated in centimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
