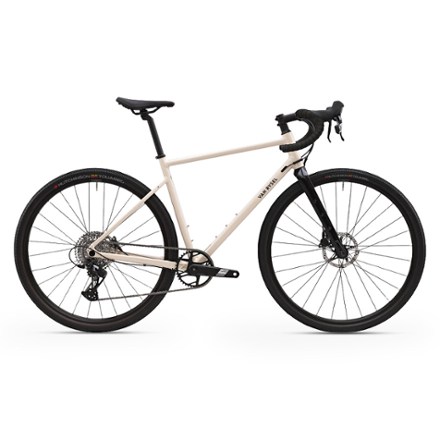

Van Rysel GRVL AF 2 Apex Bike
$1,999.00
Members get an est. $199.90 in rewards
From rugged trails to weekend bikepacking trips, the Van Rysel GRVL AF II Apex bike delivers reliable performance and comfort with a lightweight frame, SRAM Apex drivetrain and hydraulic disc brakes.
Key Details
Wheel Size
700c
Number of Gears
12 gear(s)
This item pays for membership!
$199
10% Reward
on this and every eligible full-price item*
+
$30
Bonus Card
valid for 30 days after joining*
=
$229
Value
Start earning when you buy a $30 lifetime membership.
Keep shopping
- Built for adventure, training and everything in between
- Double-butted 6061 aluminum frame is lightweight and makes adventures more enjoyable without sacrificing durability
- Lightweight carbon expedition fork damps vibrations from rough roads and features gear mounts for longer rides
- SRAM Apex 1 x 12-speed drivetrain with a 40T chainring and 11–44T cassette for smooth, reliable shifting on any terrain
- Powerful SRAM Apex D1 hydraulic disc brakes with 160 mm rotors ensure confident stopping in all weather
- Hutchinson Touareg 700c x 45 mm tires provide excellent grip and comfort, with a tubeless-ready design for versatility
- Durable aluminum wheels handle tough off-road conditions and fit tires from 35 to 50 mm wide
- Ergonomic setup with flared handlebar and aluminum seatpost enhances control and reduces fatigue on long rides
- Bikepacking-ready with frame and fork mounts for racks, bags, fenders and bottle cages
- Complete bike weighs 24 lbs. (10.88 kg) in size M and supports a combined load of up to 242 lbs. (110 kg)
- Van Rysel provides a lifetime warranty on the frame, 5 years on the carbon fork and 2 years on components for long-term reliability
- NOTE: Specs and images are subject to change based on component availability
Imported.
This bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
View all Van Rysel Gravel Bikes- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Gravel Cycling |
|---|---|
| Frame | 6061 double-butted aluminum |
| Step-Through | No |
| Bike Suspension | No Suspension |
| Fork | Carbon |
| Crankset | Sram Apex 1 D1 DUB |
| Bottom Bracket | Sram DUB Road Wide |
| Shifters | Sram Apex 1 x 12 |
| Rear Derailleur | Sram Apex 12 XPLR D1 |
| Rear Cogs | Sram Apex 11-44T |
| Number of Gears | 12 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Sram Apex D1 |
| Brake Levers | Sram Apex |
| Rims | 27SL Asymmetric 6069 TLR |
| Front Hub | Thru-Axle 12 x 100 mm |
| Rear Hub | Thru Axle 12 x 142 mm |
| Wheel Size | 700c |
| Tires | Hutchinson Touareg TR |
| Tire Width | 45 millimeters |
| Handlebar Shape | Drop Bar |
| Handlebar | T6 31.8 16 deg. Flare |
| Stem | Aluminum T6 7 deg. |
| Seat Post | BTwin 27.2 mm |
| Saddle | Decathlon Comfort 30 |
| Pedals | Wellgo Alloy platform |
| Headset | Integrated BTwin |
| Chain | Sram Apex D1 |
| Weight | 24 pounds |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
Van Rysel Bikes (246443, 246444, 246445)
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Height Range | 5’1” – 5’5” | 5’5” – 5’8” | 5’8” – 5’11” | 5’11” – 6’2” | 6’2” – 6’7” |
| Reach | 37.2 | 37.8 | 39.1 | 40.4 | 40.4 |
| Stack | 53.5 | 54.9 | 57.1 | 60 | 62.9 |
| Effective Top Tube | 53 | 54 | 56 | 57.5 | 59 |
| Seat Tube Center-Top | 45 | 48 | 50 | 52 | 53 |
| Standover Height | 72.5 | 75 | 76.2 | 77.5 | 80 |
| Head Tube Length | 11.5 | 13 | 15.5 | 18.5 | 21.5 |
| Head Tube Angle (degrees) | 70 | 70 | 70 | 70 | 70 |
| Seat Tube Angle (degrees) | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
| Bottom Bracket Height | 26.7 | 26.7 | 26.7 | 26.7 | 26.7 |
| Wheelbase | 102 | 103.1 | 105.2 | 106.9 | 108.6 |
| Fork Offset | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 |
Sizing Notes
Measurements are stated in centimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
