Van Rysel GRVL AF 2 GRX Bike
$2,399.00
Members get an est. $239.90 in rewards
A versatile bike built for adventure—on rugged trails, gravel, dirt tracks or the road—the Van Rysel GRVL AF II GRX bike is equipped with a Shimano GRX 2 x 12-speed drivetrain and hydraulic brakes.
Key Details
Wheel Size
700c
Number of Gears
24 gear(s)
This item pays for membership!
$239
10% Reward
on this and every eligible full-price item*
+
$30
Bonus Card
valid for 30 days after joining*
=
$269
Value
Start earning when you buy a $30 lifetime membership.
Keep shopping
- Delivers reliable performance, smooth shifting and all-day comfort

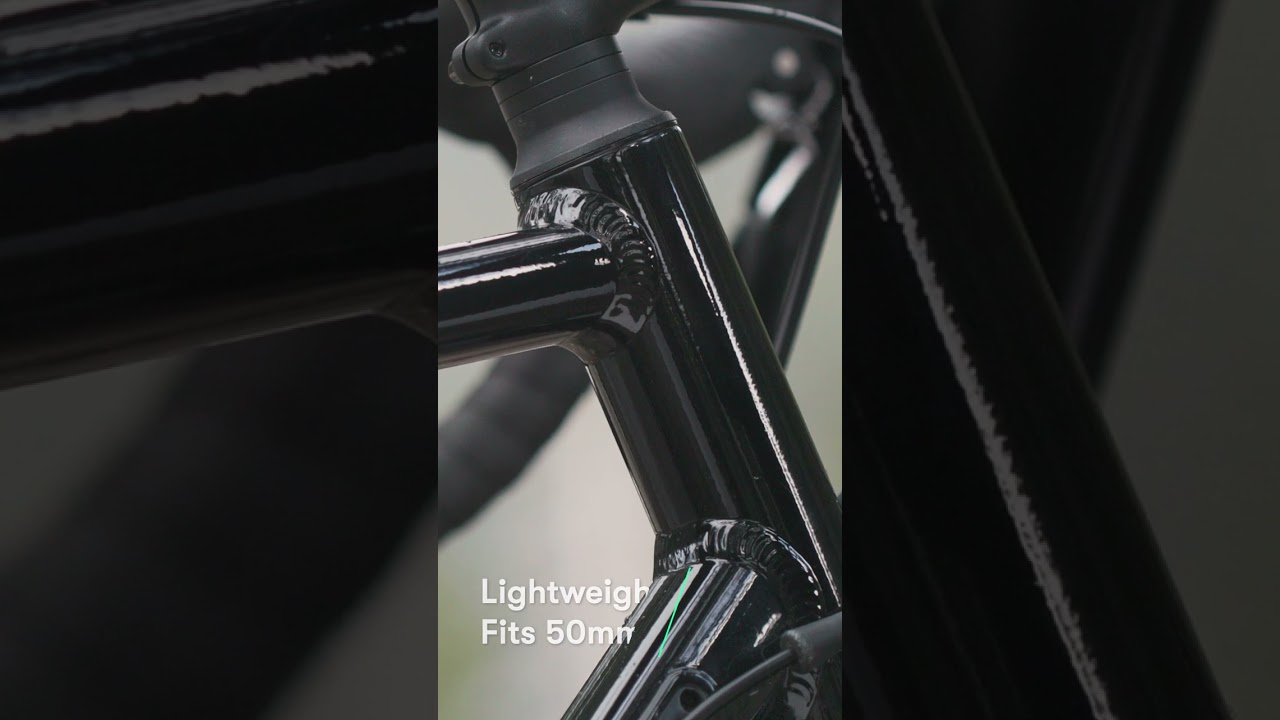

- Double-butted 6061 aluminum frame is lightweight and makes adventures more enjoyable without sacrificing durability
- Lightweight carbon expedition fork damps vibrations from rough roads and features gear mounts for longer rides
- Shimano GRX 2 x 12-speed drivetrain tames steep climbs with a wide gear ratio and powers through fast flat sections
- Shimano GRX 400 hydraulic disc brakes deliver powerful, reliable stopping control, even on long descents
- Shimano GRX 610 derailleur clutch keeps the chain tensioned on rough terrain, preventing drops and noise
- Tubeless-ready aluminum wheels paired with Continental Terra Trail 700c x 40 mm tires provide excellent grip and durability
- Ergonomic handlebar and an adjustable stem offer better control and comfort for long-distance gravel adventures
- Thru-Axle 12 x 100 mm
- Adventure-ready design with frame and fork mounts for racks, bags, fenders and bottle cages to carry gear
- Weighs approximately 22 lbs. 14.4 oz. lbs. (10.4 kg) in size M and supports up to 242 lbs. (110 kg) of combined rider and cargo weight
- Van Rysel provides a lifetime warranty on the frame, 5 years on the carbon fork and 2 years on components for long-term reliability
- NOTE: Specs and images are subject to change based on component availability
Imported.
This bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
View all Van Rysel Gravel Bikes- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Gravel Cycling |
|---|---|
| Frame | 6061 double-butted aluminum |
| Step-Through | No |
| Bike Suspension | No Suspension |
| Fork | Carbon |
| Crankset | Shimano GRX 610 |
| Bottom Bracket | Shimano SM-BBR60 |
| Shifters | Shimano GRX 610 |
| Front Derailleur | Shimano GRX 600 |
| Rear Derailleur | Shimano GRX 610 |
| Rear Cogs | Shimano 105 11-36T |
| Number of Gears | 24 gear(s) |
| Internally Geared | Yes |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Shimano GRX 400 |
| Brake Levers | Shimano GRX 600 |
| Rims | 27SL Asymmetric 6069 TLR |
| Front Hub | Thru-Axle 12 x 100 mm |
| Rear Hub | Thru Axle 12 x 142 mm |
| Wheel Size | 700c |
| Tires | Continental Terra Trail TR |
| Tire Width | 40 millimeters |
| Handlebar Shape | Drop Bar |
| Handlebar | T6 31.8 16 deg. Flare |
| Stem | Aluminum T6 7 deg. |
| Seat Post | BTwin 27.2 mm |
| Saddle | Decathlon Light 30 |
| Pedals | Wellgo Alloy platform |
| Headset | Integrated BTwin |
| Chain | Shimano CS-HG710 |
| Weight | 22 lbs. 14.4 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
Van Rysel Bikes (246443, 246444, 246445)
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Height Range | 5’1” – 5’5” | 5’5” – 5’8” | 5’8” – 5’11” | 5’11” – 6’2” | 6’2” – 6’7” |
| Reach | 37.2 | 37.8 | 39.1 | 40.4 | 40.4 |
| Stack | 53.5 | 54.9 | 57.1 | 60 | 62.9 |
| Effective Top Tube | 53 | 54 | 56 | 57.5 | 59 |
| Seat Tube Center-Top | 45 | 48 | 50 | 52 | 53 |
| Standover Height | 72.5 | 75 | 76.2 | 77.5 | 80 |
| Head Tube Length | 11.5 | 13 | 15.5 | 18.5 | 21.5 |
| Head Tube Angle (degrees) | 70 | 70 | 70 | 70 | 70 |
| Seat Tube Angle (degrees) | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
| Bottom Bracket Height | 26.7 | 26.7 | 26.7 | 26.7 | 26.7 |
| Wheelbase | 102 | 103.1 | 105.2 | 106.9 | 108.6 |
| Fork Offset | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 |
Sizing Notes
Measurements are stated in centimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
