Cannondale Moterra 4 Electric Mountain Bike
$3,199.73Compared to $4,000.00* Save 20%

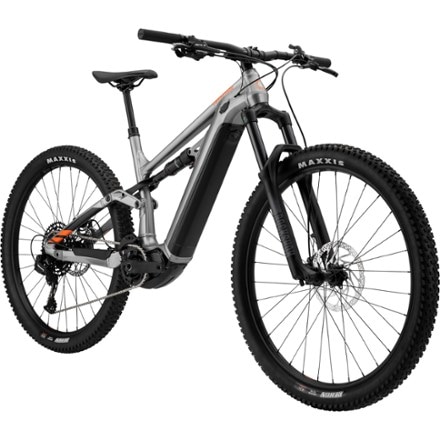

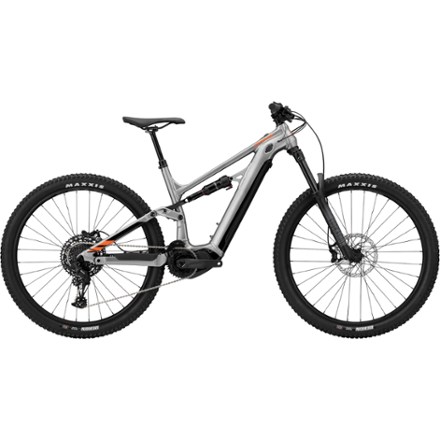

For mountain trail-riding fun, the Cannondale Moterra 4 aluminum electric mountain bike is capable of tackling the steepest descents and hardest climbs—with fully integrated all-mountain e-bike tech.
Key Details
E-Bike Classification
Class 1: pedal assist up to 20 mph
Motor
Shimano EP8
Battery Capacity (Wh)
630 watt hours
Weight
57 pounds
- Proper trail-riding frame geometry and true trail-ready components make this rig a blast on everything from rolling hills to hardcore singletrack
- Built for the whole mountain, the SmartForm C2 aluminum alloy frame boasts 150 mm of suspension for all-day, all-mountain attack
- SmartForm C2 construction with refined butting and precisely controlled tube shapes showcases exceptional aluminum craftsmanship for incredible performance at a sweet price
- Low center of gravity, progressive geometry and short chainstays put the handling of this Moterra 4 in a class of its own
- Impressively precise, surprisingly agile and incredibly fun on any terrain, its huge gear range gives you the people-power to up your speed
- A range up to 75 mi. and the true all-mountain capability with integrated power and reliability of Shimano STEPS drive system mean you can simply ride anything over and over
- Easy-to-use Shimano switch unit lets you change assist modes without taking hands from the bars, while easy-read display gives speed, battery level, mode and more at a glance
- Shimano EP8 drive unit with Shimano BT-E8036 630 Wh battery
- Big 630 Wh e-tube integrates neatly into the frame and gives you the range for serious adventure; a weather-sealed compartment keeps the battery dry and safe
- Battery is removable for easy in-home charging
- Optimized for e-MTBs, the tuned 4-bar link suspension delivers 150 mm of travel, with a crisp pedaling feel, grippy traction on climbs and supple smoothness on descents
- LockR Pivot thru-axle pivot system creates a rock-solid connection between both sides of the swingarm—no twist, no flex, just instantaneous response
- SRAM SX/NX Eagle 12-speed shifting
- TRP Slate 4-piston disc brakes
- Fast-rolling 29 in. large-volume tires and wide handlebar keep you in control when the trail gets wily
- Pedals not included
- NOTE: Specs and images are subject to change based on component availability
Imported.
This e-bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
UL2849 certified
View the Cannondale Moterra Product LineView all Cannondale Full-Suspension Mountain Bikes- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- An additional year of free adjustments on e-bikes
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
UL2849 certified
| Best Use | Mountain Biking |
|---|---|
| E-Bike Classification | Class 1: pedal assist up to 20 mph |
| Motor | Shimano EP8 |
| Motor Type | Mid-Drive |
| Motor Torque (Nm) | 85 Newton meters |
| Battery Type | Lithium Ion |
| Battery Capacity (Wh) | 630 watt hours |
| Battery Removable | Yes |
| Charge Time (hrs) | 4.5 hours |
| Pedal Assist Range | 75 miles |
| Mountain Bike Style | Trail |
| Frame | SmartForm C2 alloy, 150 mm travel, Cannondale Tuned Suspension, removable down tube battery, internal cable routing, 148x12mm thru-axle, post mount brake, tapered head tube |
| Bike Suspension | Full Suspension |
| Fork | RockShox 35 Silver R, 150 mm, Solo Air, 15x110 mm stealth thru-axle, tapered steerer, 51 mm offset |
| Fork Travel | 150 millimeters |
| Rear Shock | RockShox Deluxe Select R, DebonAir |
| Crankset | FSA E-Bike, 165 mm, SRAM Eagle, 34T Steel |
| Shifters | SRAM NX Eagle, 12-speed |
| Rear Derailleur | SRAM SX Eagle |
| Rear Cogs | SRAM PG-1210, SX Eagle, 11-50, 12-speed |
| Number of Gears | 12 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | TRP Slate G4 4 Piston hydraulic disc, 200/200 mm rotors |
| Brake Levers | TRP hydraulic disc |
| Rims | WTB STX i25 TCS, 32h, tubeless ready |
| Front Hub | Shimano MT400, 15x110 mm thru-axle |
| Rear Hub | Shimano MT400, 12x148 mm thru-axle |
| Wheel Size | 29 inches |
| Tires | Maxxis Rekon, 29 x 2.6 in., 60 TPI Exo |
| Tire Width | 2.6 inches |
| Handlebar Shape | Riser Bar |
| Handlebar | Cannondale 3 riser, 6061 alloy, 15 mm rise, 8° sweep, 4° rise, 780 mm |
| Stem | Cannondale 3, 3D forged 6061 alloy, 1-1/8 in., 31.8, 7° |
| Seat Post | TranzX dropper, internal routing, 31.6, S: 100 mm; M: 120 mm; L-XL: 130 mm |
| Dropper Post | Yes |
| Saddle | Cannondale Ergo XC |
| Pedals | Not included |
| Headset | Integrated sealed bearing, tapered |
| Chain | Unavailable |
| Weight | 57 pounds |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
Cannondale Bikes (245490)
| S | M | L | XL | |
|---|---|---|---|---|
| Height Range | 5'1"-5'5" | 5'4"-5'9" | 5'8"-6'1" | 6'0"-6'5" |
| Reach | 42.5 | 45.0 | 47.5 | 50.0 |
| Stack | 61.7 | 61.7 | 61.7 | 62.6 |
| Effective Top Tube | 57.9 | 60.4 | 62.9 | 65.6 |
| Seat Tube Center-Top | 43.0 | 45.0 | 48.0 | 51.0 |
| Standover Height | 72.7 | 73.5 | 74.5 | 77.0 |
| Head Tube Length | 11.5 | 11.5 | 11.5 | 12.4 |
| Head Tube Angle (degrees) | 65.0 | 65.0 | 65.0 | 65.0 |
| Seat Tube Angle (degrees) | 71.0 | 71.0 | 71.0 | 71.0 |
| Bottom Bracket Height | 35.0 | 35.0 | 35.0 | 35.0 |
| Wheelbase | 120.9 | 123.4 | 125.9 | 128.8 |
| Chainstay | 45.5 | 45.5 | 45.5 | 45.5 |
| Fork Offset | 5.1 | 5.1 | 5.1 | 5.1 |
Sizing Notes
Measurements are stated in centimeters unless otherwise noted.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
Buying Advice
Review this Product
Adding a review will require a valid email for verification
Customer Images
HikerTodd
Wa
Having a blast with my new bike
10 months ago

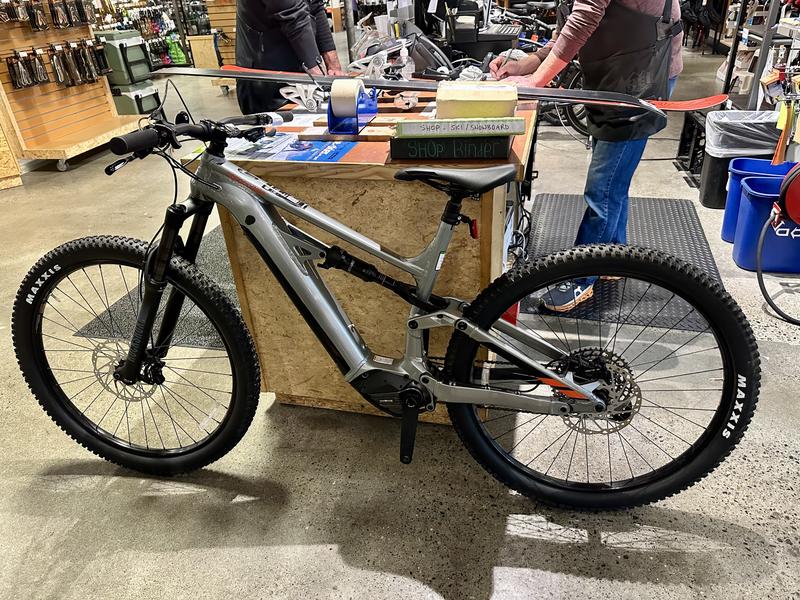

I bought one of these that was used lightly and returned, so I got a great deal. I have not bought a new mountain bike for years, this is light years above my old Trek bike. It's not light with the battery, but it rides super nice. I rode this weekend with my son, had a great time, and it was really nice to have the battery assist for the hill climbs. Rode recently on the lift served terrain on Mt Hood, the bike felt super secure & was really comfortable. I'm super happy with my purchase.
