SRAM XX T-Type Eagle Transmission AXS Groupset - 175 mm Crankset
The harder you pedal, the better it shifts. The SRAM XX T-Type Eagle Transmission AXS groupset is a robust and fully synchronized system with a 175 mm carbon crankset to handle big enduro days.
- Eagle Transmission is a fully integrated and interdependent wireless transmission built around the universal constant of the wheel axle
- It lets you shift flawlessly under maximum power while simplifying, strengthening and extending the transmission's lifespan without a derailleur hanger or adjustment screws

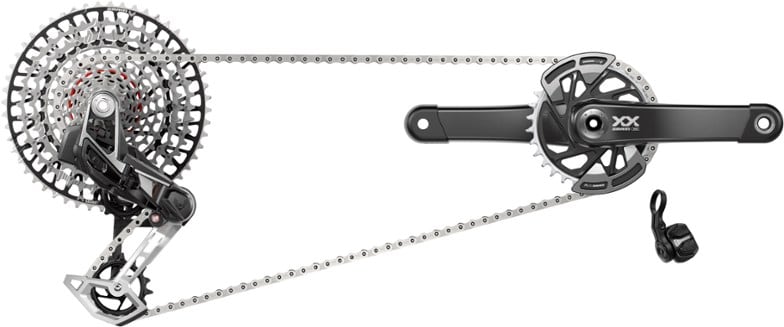

- Includes a 175 mm XX Eagle crankset with direct-mount 32T chainring, XX Eagle Transmission cassette, rear derailleur and Flattop 126-link chain, and an AXS POD controller
- Carbon-fiber XX Eagle Transmission crankset is engineered with a foam core to give it both increased strength and maximum stiffness
- Crankset is compatible with new Quarq power meters (not included)
- Crankset has a T-Type 32T aluminum direct mount chainring, 174 mm Q-factor and 55 mm chainline; designed to work with MTB Wide DUB bottom brackets (not included)
- XX chainrings are compatible with SRAM removable bashguards (2 guards included) for more rugged terrain
- XX Eagle Transmission derailleur mounts around the wheel axle itself and contacts the cassette directly with a hangerless interface
- Its tucked-in profile houses replaceable skid plates that enhance dependability; the Magic Wheel lower pulley is designed to keep spinning even if an object becomes lodged
- Derailleur includes battery, charger and cord; installs and pairs with the standard AXS setup and pairing procedure
- XX Eagle Transmission T-Type XS-1297 12-speed 10-52T cassette delivers exceptional inboard and outboard shifting performance under load
- Cassette features a hardened/machined steel X-DOME design, X-SYNC technology and optimized gear steps on the low end
- Stamped-steel 38T and 44T cogs are pinned to the lighter aluminum 1st gear
- Compatible with a 55 mm chainline for a more moderate chain angle, longer wear and greater precision
- XX Eagle Transmission Flattop 126-link chain is strong and maximizes shifting performance; its hard chrome finish and hollow pins are long-wearing
- AXS POD Ultimate electronic controller has a click-and-fire 2-button design that transforms the crucial act of rider inputs into a more personal experience
- Its flippable design allows the controller to be mounted on the left or right; paddle options can be customized with the AXS app
Imported.
View the SRAM XX Eagle Product LineView all SRAM Bike Groupsets| Best Use | Mountain Biking |
|---|---|
| Speeds | 12-speed |
| Crankarm Length | 175 millimeters |
| Shifter Actuation | Electronic |
| Shifter Connectivity | Wireless |
| Pull System | Not Applicable |
| Number of Chainrings | 1 Chainring |
| Number of Teeth | 32T |
| Max Rear Cog Size | 52T |
| Cage Length | Long Cage |
| Compatible Freehub | SRAM XD |
| Material(s) | Carbon; aluminum; steel |
| Average Battery Life | Up to 1,000 kilometers of riding per charge |
| Charge Time (hrs) | 1 hour |
| Included Components | Chainring |
| Weight | Total: 1,140 grams; rear derailleur: 465 grams; cassette: 380 grams; chain: 247 grams; controller: 48 grams |
Write a Review
Adding a review will require a valid email for verification
Interesting product, but underdelivered
While I was excited and initially impressed with this groupset in some ways, there have been several issues. Biggest issue is that with these cranks, they’re so long at 175mm that when I am descending, my heel contacts the derailleur. When I’m on jumps it’s the worst, feels like my foot is going to slide off as it bangs against the derailleur as I land. Additionally, it doesn’t always shift well, recently under full load while climbing, attempting to go from the highest gear down a few, it failed completely. Horrible grinding, banging, no gear change. So, I got off and pedaled it a bit so it finally shifted. Considering this is the highest level transmission, and costs as much as it does, I didn’t expect it to fail on this trail I’ve ridden many times. Have had this happen more than 3 times. Might end up returning this if issues continue after I keep trying micro adjustments on the app.
