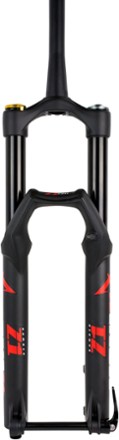

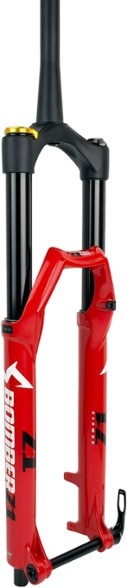

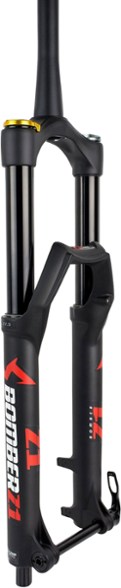

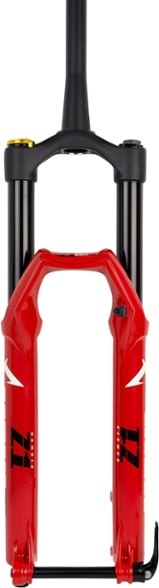

Marzocchi Bomber Z1 Coil Suspension Fork
Building on the original that fueled the freeride movement, the Marzocchi Bomber Z1 coil suspension fork is stout and smooth. Its advanced spring and GRIP damper mean better traction, less arm pump.
- Soaks up braking bumps and big hits with the planted feel that only a coil spring can provide
- Integrated air-assist chamber allows for progressivity in the lower part of the stroke while controlling bottoming out
- Lightweight, tempered chromium-silicon steel spring is wrapped to prevent on-trail rattle
- Stiff 36 mm chassis aids with responsive steering
- External preload adjuster dials in sag and firmness off the top
- Included internal spacers can easily adjust fork travel distance in 10 mm increments
- Includes a medium coil spring; additional springs can adjust for rider preference (additional springs not included)
- Starting weight of complete fork is 2,525 g
Imported.
View all Marzocchi Bike Suspension Forks| Best Use | Mountain Biking |
|---|---|
| Fork Spring Type | Coil Spring |
| Fork Brake Type | Disc Brake |
| Fork Brake Mount | Post Mount |
| Max Rotor Diameter | 203 millimeters |
| Crown Race Diameter | 40 millimeters |
| Stanchion Diameter | 36 millimeters |
| Steerer Tube Diameter | 1.5 in. Tapered |
| Steerer Tube Length | 263 millimeters |
| Axle to Crown Length | 27.5/170 MM/15 x 110 MM/44 MM: 566 millimeters 27.5/180 MM/15 X 110 MM/44 MM: 576 millimeters 29/160 MM/15 X 110 MM/44 MM: 570 millimeters 29/170 MM/15 x 110 MM/44 MM: 580 millimeters |
| Max Tire Width | 66 millimeters |
| Wheel Size | 27.5/170 MM/15 x 110 MM/44 MM: 27.5 inches 27.5/180 MM/15 X 110 MM/44 MM: 27.5 inches 29/160 MM/15 X 110 MM/44 MM: 29 inches 29/170 MM/15 x 110 MM/44 MM: 29 inches |
| Fork Travel | 27.5/170 MM/15 x 110 MM/44 MM: 170 millimeters 27.5/180 MM/15 X 110 MM/44 MM: 180 millimeters 29/160 MM/15 X 110 MM/44 MM: 160 millimeters 29/170 MM/15 x 110 MM/44 MM: 170 millimeters |
| Fork Offset | 44 millimeters |
| Front Axle | 15 x 110 mm Thru-Axle (Boost) |
| Weight | 2525 grams |
| Material(s) | Aluminum/steel |
