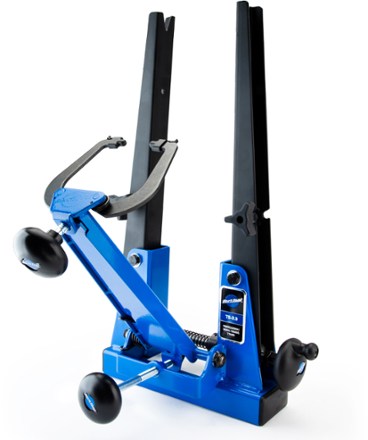

Park Tool TS-2.3 Pro Wheel Truing Stand
This product is not available.
A durable, capable truing stand designed and built for daily use, the Park Tool TS-2.3 Pro wheel truing stand is easy to adjust and operate, and it's compatible with most bike wheels.
Shop similar products- Extra-tall uprights and wide calipers are capable of accepting most wheels commonly found on road, mountain, BMX and hybrid bicycles; up to 29+ in. with or without tire
- Uprights feature integrated storage for the included thru-axle adapters—allows for compatibility with solid, quick-release and thru-axle hubs without the use of adapters
- Upright adjustment is controlled with an ergonomically designed speed knob, which quickly adjusts the stand to accommodate any hub width in seconds

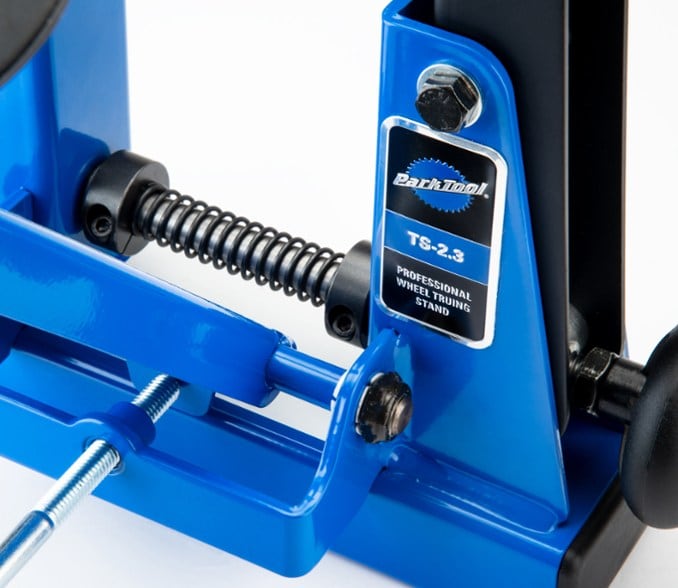

- Strong, comfortable knobs and spring-loaded calipers and caliper arm ensure smooth, consistent operation
- Removable composite caliper tips protect painted rims and fragile materials
- Maximum hub width is 200 mm (7.87 in.)
- Maximum rim width is 102 mm (4 in.)
- Stand can be bolted to your benchtop via mounting holes that are 9.5 mm (0.4 in.) in diameter and 200 mm (7.9") from center to center

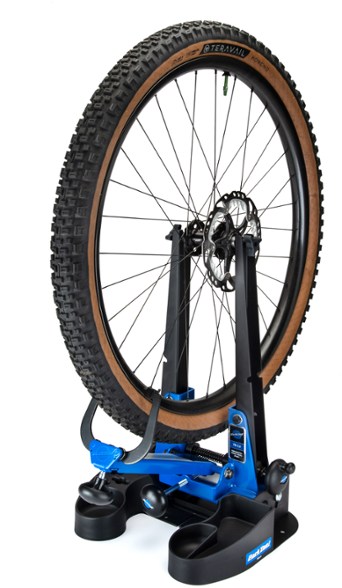

- Can also be clamped in a vice—base measures 76 mm (3 in.) deep—or installed in the Park Tool TSB-2.2 Truing Stand Base (not included)
- Made from durable powder-coated heavy-gauge steel assembled and calibrated in St. Paul, Minnesota
- 100% adjustable and rebuildable for a lifetime of use
Made in USA.
View all Park Tool Bike Wheel Truing Stands| Best Use | Cycling |
|---|---|
| Stand Height | 20 inches |
| Weight | 18 lbs. 4 oz. |
Write a Review
Adding a review will require a valid email for verification
Perfect for getting the job done
There are fancier stands than this one but once I started building wheels and learning from experienced pros I realized this is the industry standard for a reason with the TS-2.3 upgraded to modern rim and hub width specs for everything but ultra fat bike wheels (with tires). The speed handle is a nice addition along with the powder coated arms. I found a 3D printed tilting bench mount on Etsy that has a cleaner install than Parks OEM option. Overall 5 starts for being a well built tool that simply works every time. If you can afford this stand than buy a dishing guage next.
Simply the best!
I have been a bike mechanic since 1985. I've worked in several shops in various locations. When it came to truing wheels or building wheels, I knew I needed a truing stand in my home shop. I wanted what I was used to while working in professional shops. I think the folks in the REI Paradise Valley shop were surprised when I ordered this stand. "You realize this is what we use, right?" I smiled and told them I did indeed want to purchase this stand. I'm so glad I did. I use it regularly. It's so simple to use. The results are fantastic. If you want to true your own wheels or have aspirations of building your own wheels... you'll need to start with this! It accommodates most modern wheel sizes from 20" to 29". The really 'fat' tires don't fit in this one..
Turing Stand is not Calibrated.
The Truing Stand shipped uncalibrated. And it require special tool to calibrate it. When I received the Truing Stand, the caliper arms were off center, one of the caliper arm was touch the rim first and the other arm has a gap. When I turn the rim around, same thing happen. So there is nothing wrong with the rim but the Stand is not calibrated. Talk to the Park Tool tech support, they send me a video on how to calibrate the the Stand, but it require a special tool. So I return the Stand and bought another one. And the 2nd one came with even worst calibration. This time the gap is 1/4". So I decided to return the Stand. It's ridiculous that you send $450 for a expensive Stand to true the wheel and then you have spend more money to buy more tool to calibrated the Stand. The Stand should come calibrated or at least Park Tool should offer to calibrate the Stand for free.
