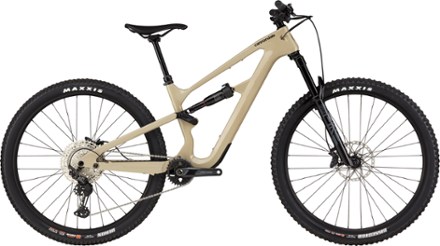

Cannondale Habit Carbon 2 Mountain Bike
$3,044.93Compared to $4,350.00* Save 30%
Primed for grinding climbs, mashing flats and ripping descents, the Cannondale Habit Carbon 2 mountain bike is made for riders who are seeking flow on every type of terrain.
Key Details
Wheel Size
XS: 27.5 inches
S: 29 inches
M: 29 inches
L: 29 inches
XL: 29 inches
Fork Travel
140 millimeters
Number of Gears
12 gear(s)
- With Proportional Response Design, everything from the suspension layout to the geometry is completely customized by size
- Fully size-specific frame geometry, right down to the chainstay lengths, keeps you centered between the wheels for incredible traction and handling
- With a head tube angle of 65.5° and seat tube of 77.5°, you are sitting in the optimal position for powering uphill and shredding downhill
- Rockshox Pike Select 140 mm fork with DebonAir technology, 15 x 110 mm thru axle and a 42 mm offset
- RockShox Deluxe Select+ rear shock with 2-position mode adjust, adjustable rebound and DebonAir technology
- Rugged rubber guard provides added protection on the down tube
- Shimano Deore 6120 4-piston hydraulic discs with 180/180 mm RT64 rotors
- Cannondale DownLow dropper post with internal routing
- Features a threaded bottom bracket, universal derailleur hanger, standard shock mount, internal cable routing and an updated 55 mm chainline standard for tire clearance
- 12-speed drivetrain
- Included StrapRack Carrier bolts to the frame to carry tools, spares, snacks or other on-trail essentials
- Pedals not included
- NOTE: Specs and images are subject to change based on component availability
Imported.
This bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
View the Cannondale Habit Product LineView all Cannondale Full-Suspension Mountain Bikes- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Mountain Biking |
|---|---|
| Frame | Habit Full Carbon |
| Mountain Bike Style | Trail |
| Bike Suspension | Full Suspension |
| Fork | RockShox Pike Select |
| Fork Travel | 140 millimeters |
| Rear Shock | RockShox Deluxe Select+ |
| Crankset | Shimano, FC-6120, 30T, 55 mm chainline |
| Bottom Bracket | Shimano BSA 73 |
| Shifters | 12-speed |
| Rear Derailleur | Shimano XT |
| Rear Cogs | 10-51T, 12-speed |
| Number of Gears | 12 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Shimano Deore 6120 4-piston hydraulic disc, 180/180 mm RT64 rotors |
| Brake Levers | Shimano Deore hydraulic disc |
| Rims | Stan's NoTubes Crest Arch MK4, 28 h, tubeless ready |
| Front Hub | Shimano MT400, 15 x 110 mm thru axle |
| Rear Hub | Shimano MT510, 12 x 148 mm thru axle |
| Wheel Size | XS: 27.5 inches S: 29 inches M: 29 inches L: 29 inches XL: 29 inches |
| Tires | Front: Maxxis Dissector, 3C, EXO, tubeless ready; rear: Maxis Rekon, 3C, EXO, tubeless ready |
| Tire Width | 2.4 inches |
| Handlebar Shape | Riser Bar |
| Handlebar | Cannondale 3 Riser, 6061 Alloy, 15 mm rise, 8-degree sweep, 4-degree rise, 780 mm |
| Stem | Cannondale 3, 6061 alloy, 31.8 mm, 0 degree |
| Seat Post | Cannondale DownLow Dropper, 31.6, 125 mm (XS-S), 150 mm (M), 170 mm (L-XL) |
| Dropper Post | Yes |
| Saddle | Cannondale Scoop Shallow Sport, steel rails |
| Pedals | Not included |
| Headset | Integrated sealed bearing, tapered |
| Chain | 12-speed |
| Weight | Unavailable |
| Gender | Unisex |
Cannondale Bikes (208172)
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Height Range | 5'0" - 5'2" | 5'1" - 5'5" | 5'4" - 5'9" | 5'8" - 6'0" | 5'11" - 6'5" |
| Reach | 40.5 | 43 | 45.5 | 48 | 51.5 |
| Stack | 57.5 | 62.3 | 63.2 | 64.1 | 65 |
| Effective Top Tube | 52.7 | 56.3 | 59 | 61.7 | 65.4 |
| Seat Tube Center-Top | 36 | 38 | 40 | 44.5 | 50 |
| Standover Height | 70.5 | 73 | 73.5 | 75.1 | 76.2 |
| Head Tube Length | 10 | 11 | 12 | 13 | 14 |
| Head Tube Angle (degrees) | 65.5 | 65.5 | 65.5 | 65.5 | 65.5 |
| Seat Tube Angle (degrees) | 71.5 | 70.5 | 71 | 72 | 73 |
| Bottom Bracket Height | 34.2 | 34.1 | 34.1 | 34.1 | 34.1 |
| Wheelbase | 112.9 | 117 | 120 | 123.4 | 127.8 |
| Chainstay | 43.4 | 43.4 | 43.5 | 44 | 44.5 |
| Fork Offset | 3.7 | 4.2 | 4.2 | 4.2 | 4.2 |
Sizing Notes
Measurements are stated in centimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
