Cannondale Habit 4 Mountain Bike
$1,999.93Compared to $2,300.00* Save 13%
A trail bike that's primed for grinding climbs, mashing flats and ripping descents, the Cannondale Habit 4 mountain bike is sure to bring more fun to your rides.
Key Details
Wheel Size
XS: 27.5 inches
S: 29 inches
M: 29 inches
L: 29 inches
XL: 29 inches
Fork Travel
140 millimeters
Number of Gears
12 gear(s)
- SmartForm C1 alloy frame with a Shimano Deore 12-speed drivetrain

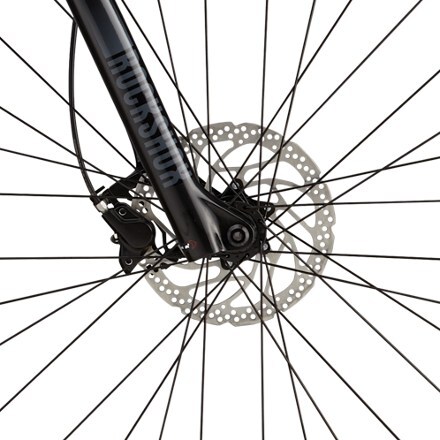

- RockShox Recon RL 140 mm fork and RockShox Deluxe Select shock soak up bumps
- Comes with Shimano hydraulic disc brakes discs and a TranzX dropper post
- Full size-specific frame geometry, right down to the chainstay lengths, keeps you centered between the wheels for incredible traction and handling
- Suspension built for you—Proportional Response Suspension alters the design by size for truly next-level performance
- Down tube protection offers peace of mind, knowing a rugged rubber guard is protecting your bike
- Pedals not included
- NOTE: Specs and images are subject to change based on component availability
Imported.
This bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
View the Cannondale Habit Product LineView all Cannondale Full-Suspension Mountain Bikes- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Mountain Biking |
|---|---|
| Frame | Habit SmartForm C1 alloy, 130 mm travel, 55 mm chainline, ISCG05, tapered head tube, DirectLine internal cable routing, UDH hanger |
| Mountain Bike Style | Trail |
| Bike Suspension | Full Suspension |
| Fork | RockShox Recon RL, 140 mm, Solo Air, 15 x 110 mm thru axle, tapered steerer, 42 mm offset |
| Fork Travel | 140 millimeters |
| Rear Shock | RockShox Deluxe Select, DebonAir, adjustable rebound |
| Crankset | Shimano, FC-5121, 30T, 55 mm chainline |
| Bottom Bracket | Shimano BSA threaded 73 |
| Shifters | Shimano Deore M6100, 12-speed |
| Front Derailleur | N/A |
| Rear Derailleur | Shimano Deore M6100 |
| Rear Cogs | Shimano Deore M6100, 11-51T, 12-speed |
| Number of Gears | 12 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Shimano MT200 post-mounted hydraulic disc, 180/180 mm RT30 rotors |
| Brake Levers | Shimano MT200 hydraulic disc |
| Rims | WTB STX i25 TCS, 32 h |
| Front Hub | Shimano MT400, 15 x 110 mm thru-axle |
| Rear Hub | Shimano MT410, 12 x 148 mm thru-axle |
| Wheel Size | XS: 27.5 inches S: 29 inches M: 29 inches L: 29 inches XL: 29 inches |
| Tires | Maxxis Rekon, EXO |
| Tire Width | 2.4 inches |
| Handlebar Shape | Riser Bar |
| Handlebar | Cannondale 3 Riser, 6061 alloy, 15 mm rise, 8 deg. sweep, 4 deg. rise, 780 mm width |
| Stem | Cannondale 3, 6061 alloy, 31.8 mm, 0 deg. |
| Seat Post | TranzX dropper, internal routing, 31.6, 130 mm (XS-S), 150 mm (M-XL) |
| Dropper Post | Yes |
| Saddle | Cannondale Ergo XC |
| Pedals | Not included |
| Headset | Integrated sealed bearing, tapered |
| Chain | KMC X12, 12-speed |
| Weight | Unavailable |
| Gender | Unisex |
Cannondale Bikes (208120)
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Height Range | 5'0" - 5'2" | 5'1" - 5'5" | 5'4" - 5'9" | 5'8" - 6'0" | 5'11" - 6'5" |
| Reach | 40.5 | 43 | 45.5 | 48 | 51.5 |
| Stack | 57.5 | 62.3 | 63.2 | 64.1 | 65 |
| Effective Top Tube | 52.7 | 56.3 | 59 | 61.7 | 65.4 |
| Seat Tube Center-Top | 36 | 38 | 40 | 44.5 | 50 |
| Standover Height | 70.5 | 73.7 | 73.8 | 75.1 | 76.1 |
| Head Tube Length | 10 | 11 | 12 | 13 | 14 |
| Head Tube Angle (degrees) | 65.5 | 65.5 | 65.5 | 65.5 | 65.5 |
| Seat Tube Angle (degrees) | 71.5 | 71 | 71 | 72.3 | 72.5 |
| Bottom Bracket Height | 34.2 | 34.1 | 34.1 | 34.1 | 34.1 |
| Wheelbase | 112.9 | 117 | 120 | 123.6 | 127.5 |
| Chainstay | 43.4 | 43.5 | 43.5 | 44.5 | 44.5 |
| Fork Offset | 3.7 | 4.2 | 4.2 | 4.2 | 4.2 |
Sizing Notes
Measurements are stated in centimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
